Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

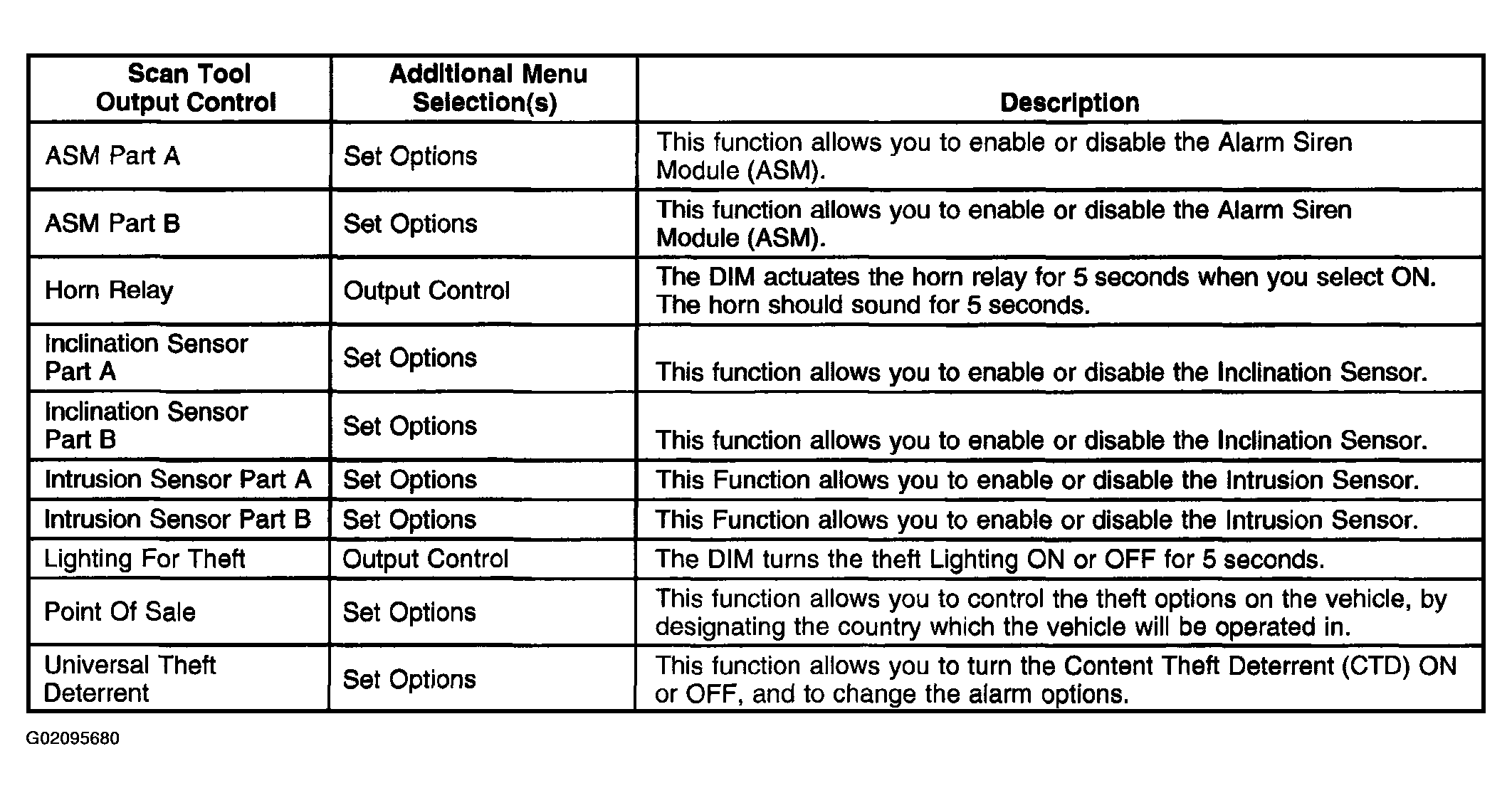

Fig 1: Dash Integration Module (DIM)
G02095680Courtesy of GENERAL MOTORS CORP.

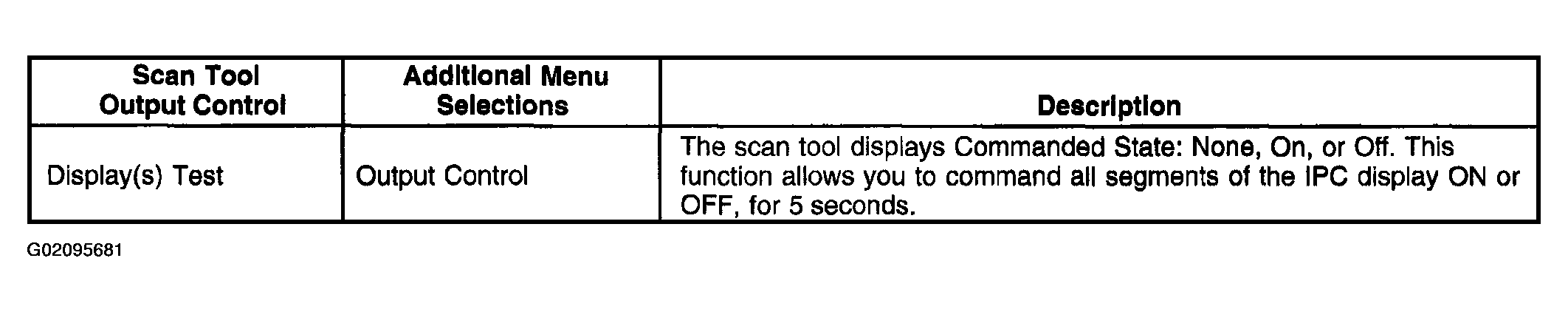

Fig 2: Instrument Panel Cluster (IPC)
G02095681Courtesy of GENERAL MOTORS CORP.

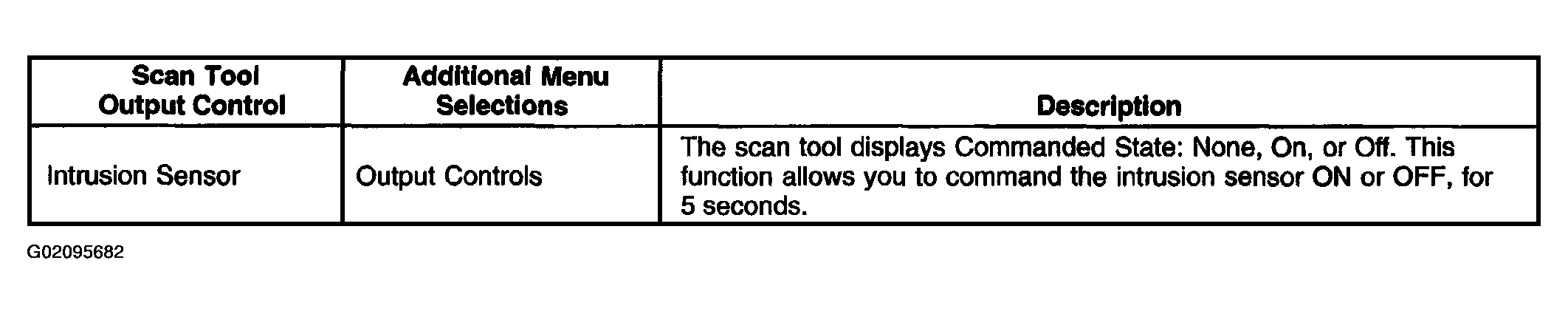

Fig 3: Rear Integration Module (RIM)
G02095682Courtesy of GENERAL MOTORS CORP.
