Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the weatherstrip from the roof rail.
  2. Remove the weatherstrip retainers from the holes in the roof rail.

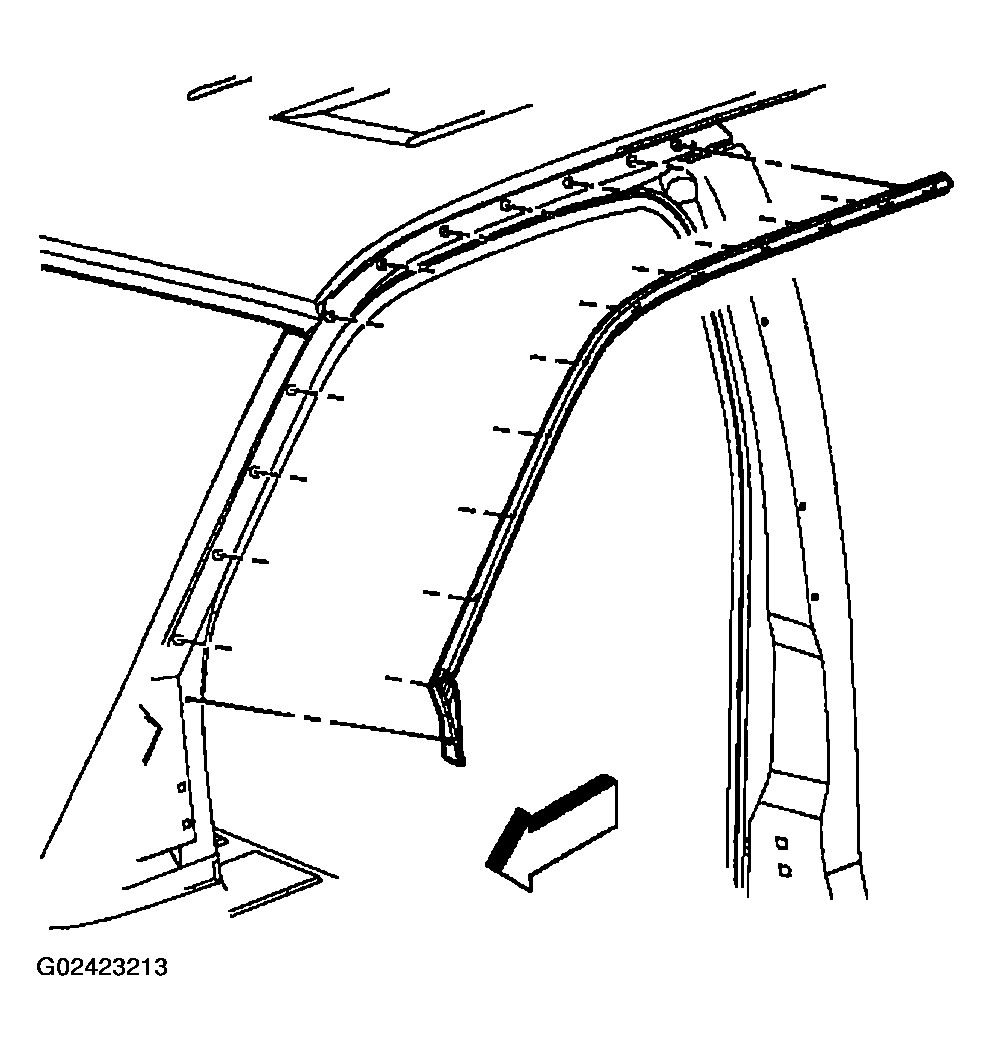

    Fig 1: Removing Drip Rail Weatherstrip
    G02423213Courtesy of GENERAL MOTORS CORP.
