Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector from the front door inner panel.
  3. Remove the gasket from the inside door handle if equipped.
  4. Pull the electrical connectors through the slit in the door handle cut out.

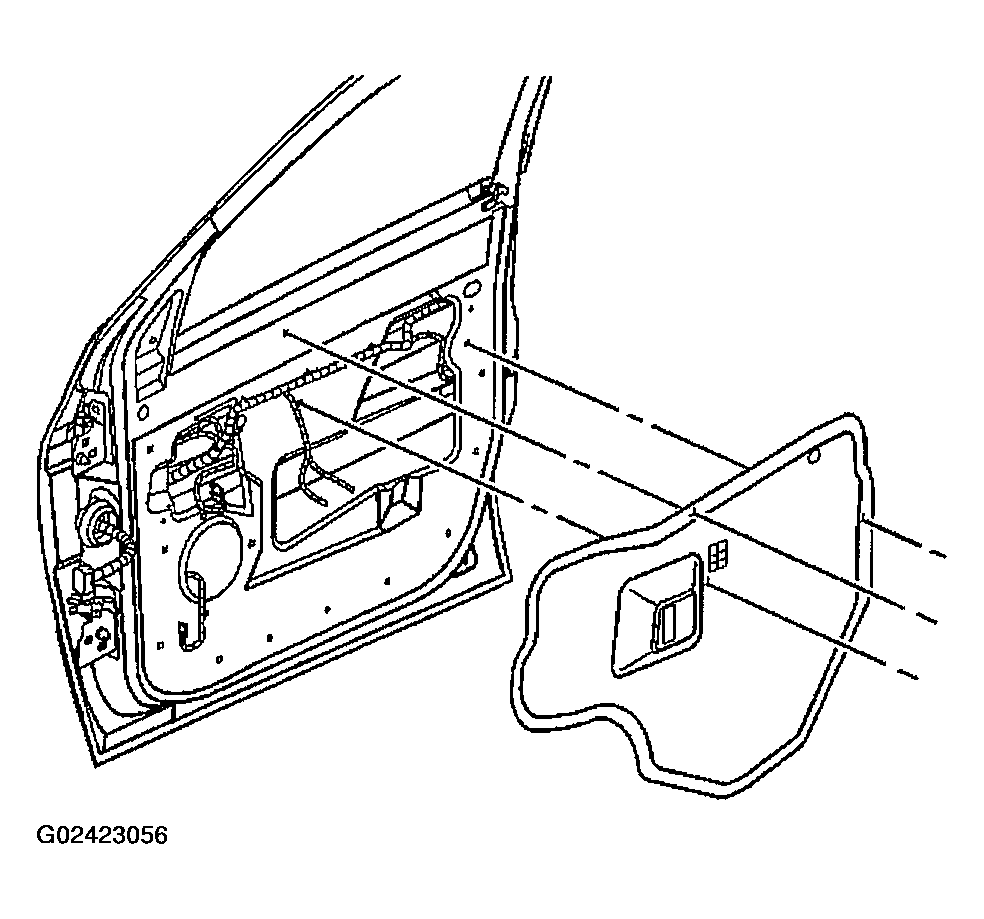

    Fig 1: Removing Front Door Water Deflector
    G02423056Courtesy of GENERAL MOTORS CORP.
