Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door inside door handle bezel. Refer to Handle Bezel Replacement - Inside - Rear .
  2. Remove the sliding door garnish molding. Refer to Garnish Molding Replacement - Sliding Door .
  3. Pull out on the sliding side door trim panel in order to disengage the retainers.
  4. Remove the sliding side door lower trim panel from the vehicle.

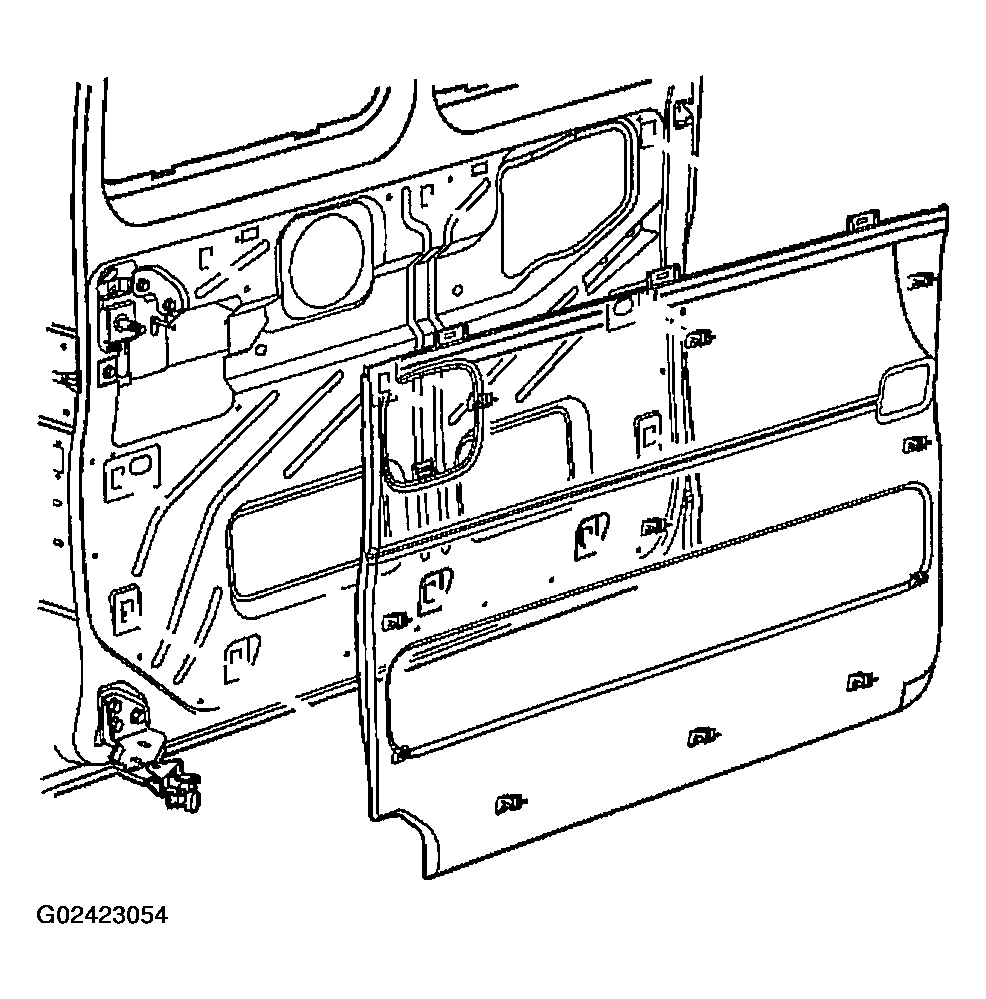

    Fig 1: Removing Sliding Door Trim Panel
    G02423054Courtesy of GENERAL MOTORS CORP.
