Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .
  2. Remove the bolts (2) that retain the lower striker (1) to the stepwell.
  3. Remove the lower striker (1) from the vehicle.

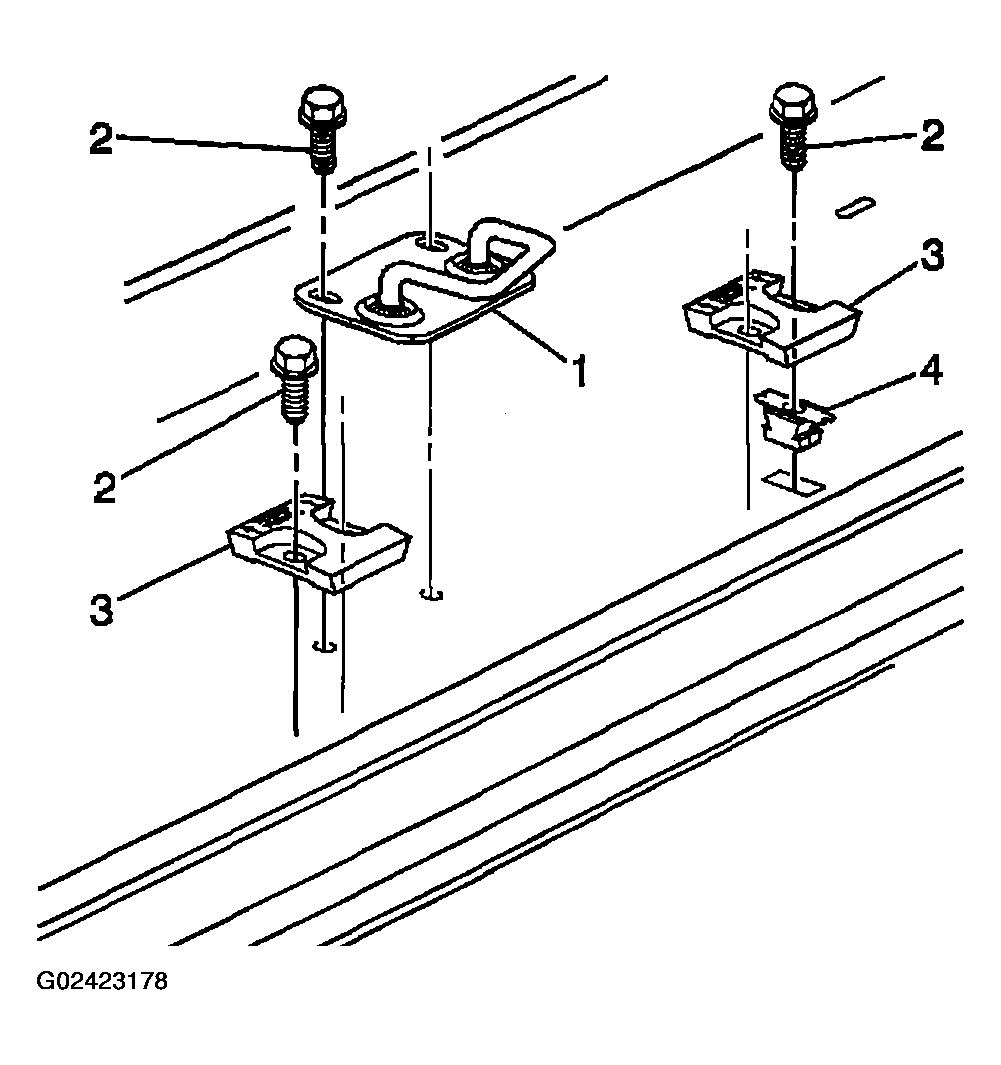

    Fig 1: Removing Lower Striker
    G02423178Courtesy of GENERAL MOTORS CORP.
