Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Spray the inside of the sealing strip with a water and soap solution.

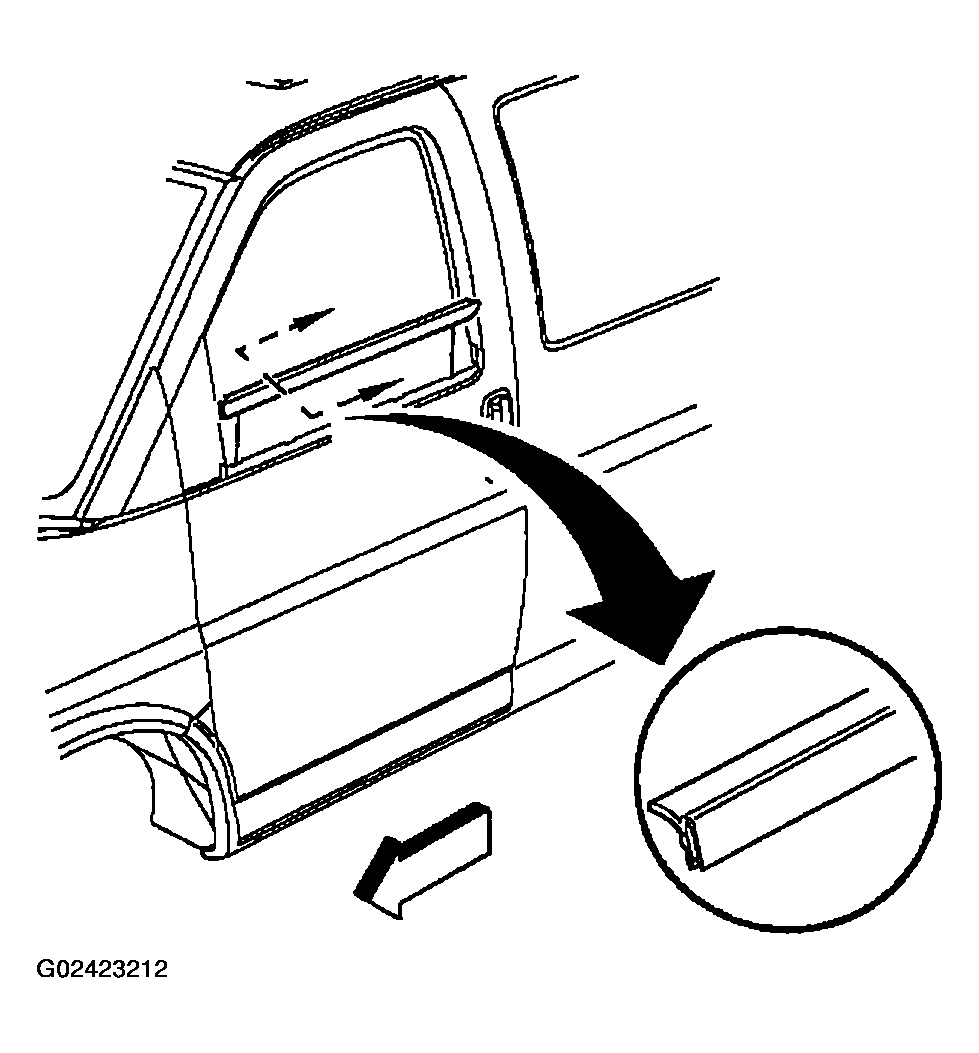

- Install the sealing strip to the pinch-weld flange by tilting the top edge of the sealing strip slightly outboard to ensure the pinch weld flange correctly enters the retention clips.
- Push down on sealing strip until all clips are fully seated.
- Raise the window.
