Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .
  2. Remove the sliding side door check assembly. Refer to Sliding Door Check Replacement .
  3. Remove the sliding side door upper roller bracket cover. Refer to Roller Bracket Cover Replace - Sliding Door Upper .
  4. Remove the bolts that retain the sliding side door lower roller bracket to the door.
  5. Remove the sliding side door lower roller bracket from the track.
  6. Remove the sliding side door lower roller bracket from the vehicle.

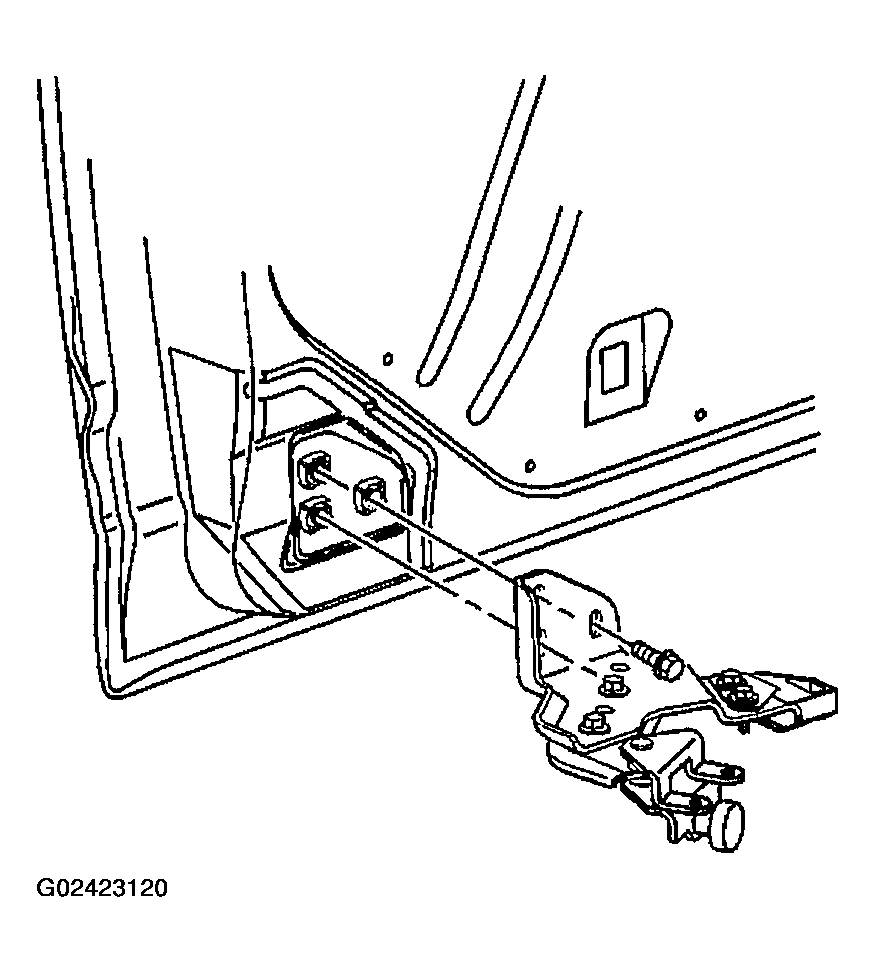

    Fig 1: Removing Sliding Side Door Lower Roller Bracket
    G02423120Courtesy of GENERAL MOTORS CORP.
