Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door .
  2. Remove the passenger side body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  3. Remove the sliding side door stop. Refer to Sliding Door Stop Replacement .
  4. Remove the bolts (4) that retain the sliding side door center roller bracket (1) to the door.
  5. Remove the nuts (2) that retain the sliding side door center roller bracket (1) to the door.
  6. Slide the sliding side door center roller bracket (1) from the rear of the track.
  7. Remove the sliding side door center roller bracket (1) from the vehicle.

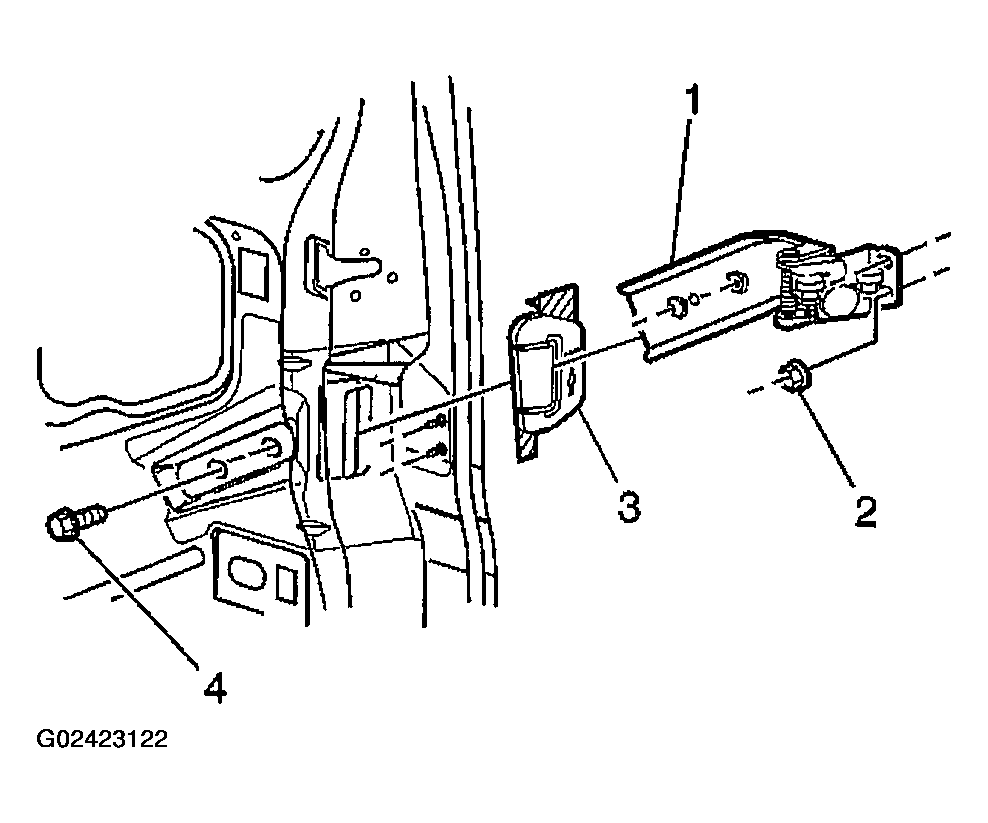

    Fig 1: Removing Sliding Side Door Center Roller Bracket
    G02423122Courtesy of GENERAL MOTORS CORP.
