Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door garnish molding. Refer to Garnish Molding Replacement - Front Door Front .
  2. Remove the electrical connector from the rearview mirror.
  3. Remove the nuts that retain the rearview mirror filler to the door.
  4. Remove the rearview mirror filler from the door.

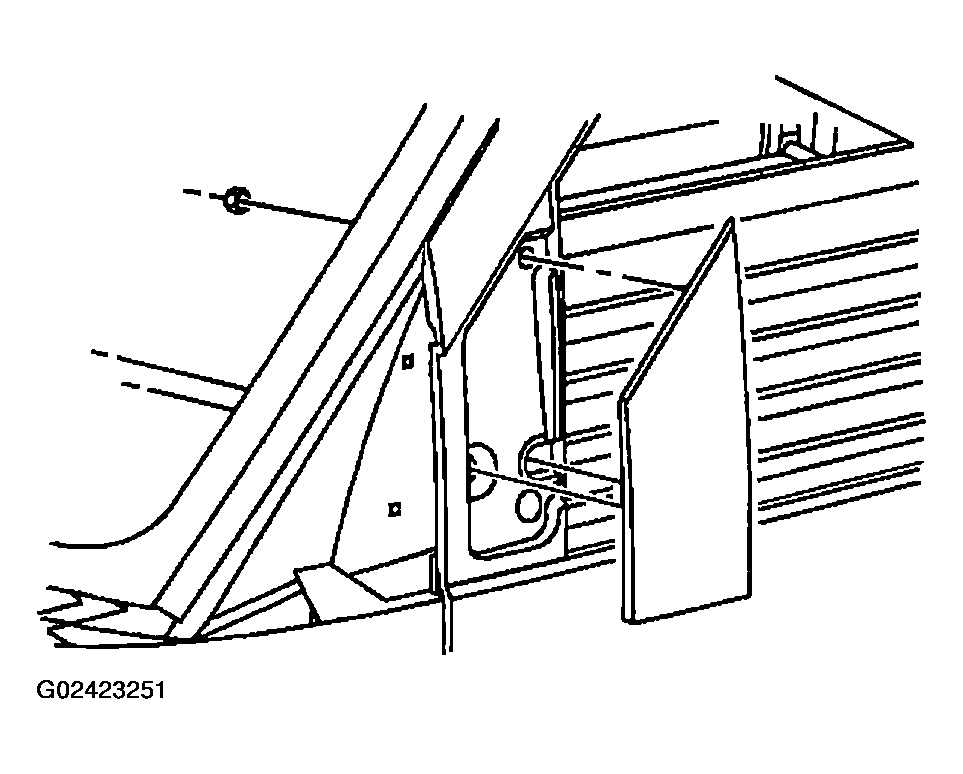

    Fig 1: Removing Rearview Mirror Filler
    G02423251Courtesy of GENERAL MOTORS CORP.
