Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Important: The door ajar switch is contained within the lock of the rear door. Therefore replacement of the lock will include the replacement of the rear door ajar switch.
- Remove the right side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 40 Door) or Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 60 Door) .

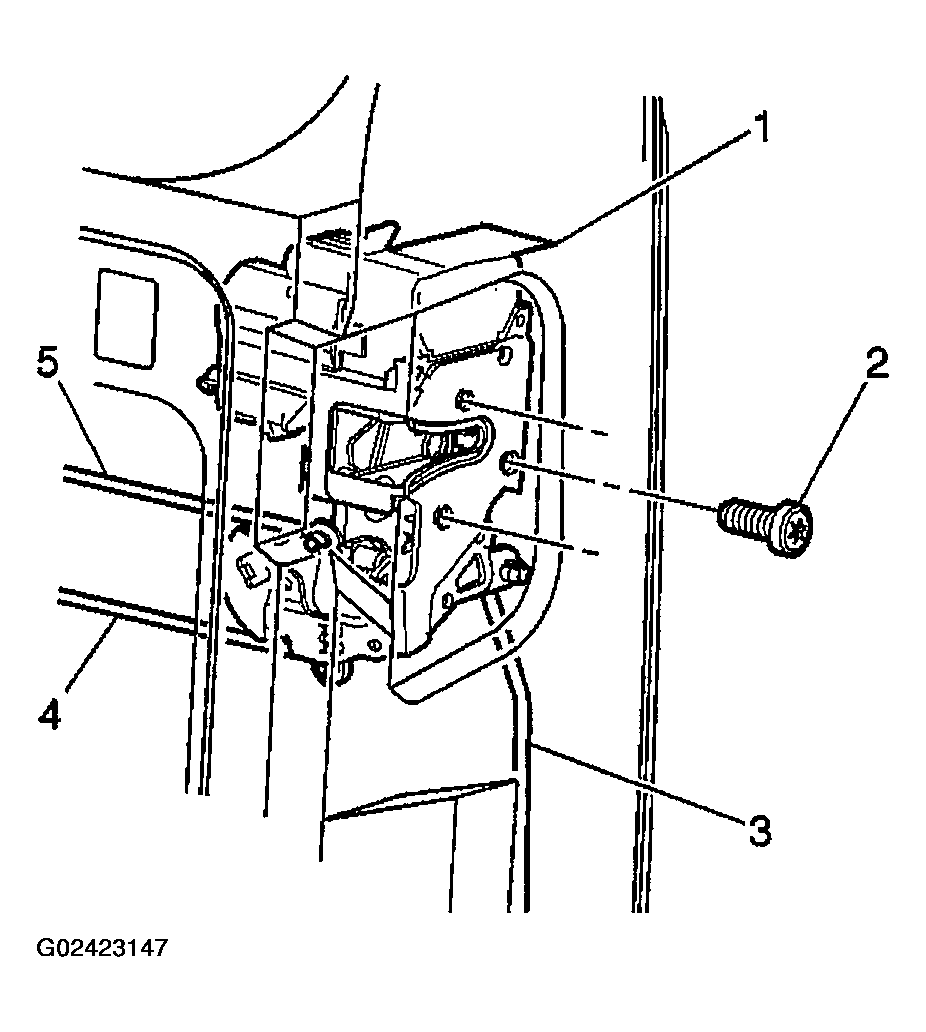

- Remove the lock rods (4) from the lock (1).
- Disconnect the electrical connector from the lock (1).
- Remove the screws (2) that retain the lock (1) to the right side rear door.
- Remove the lock (1) from the right side rear door.
- Remove the lock (1) from the vehicle.
