Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 40 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 60 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 40 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 60 Door) .
  2. Disconnect the lock rods (3) from the side rear door latch handle (4).
  3. Remove the nuts (2) that retain the side rear door latch handle (4) to the side rear door.
  4. Remove the side rear door latch handle (4) from the door.

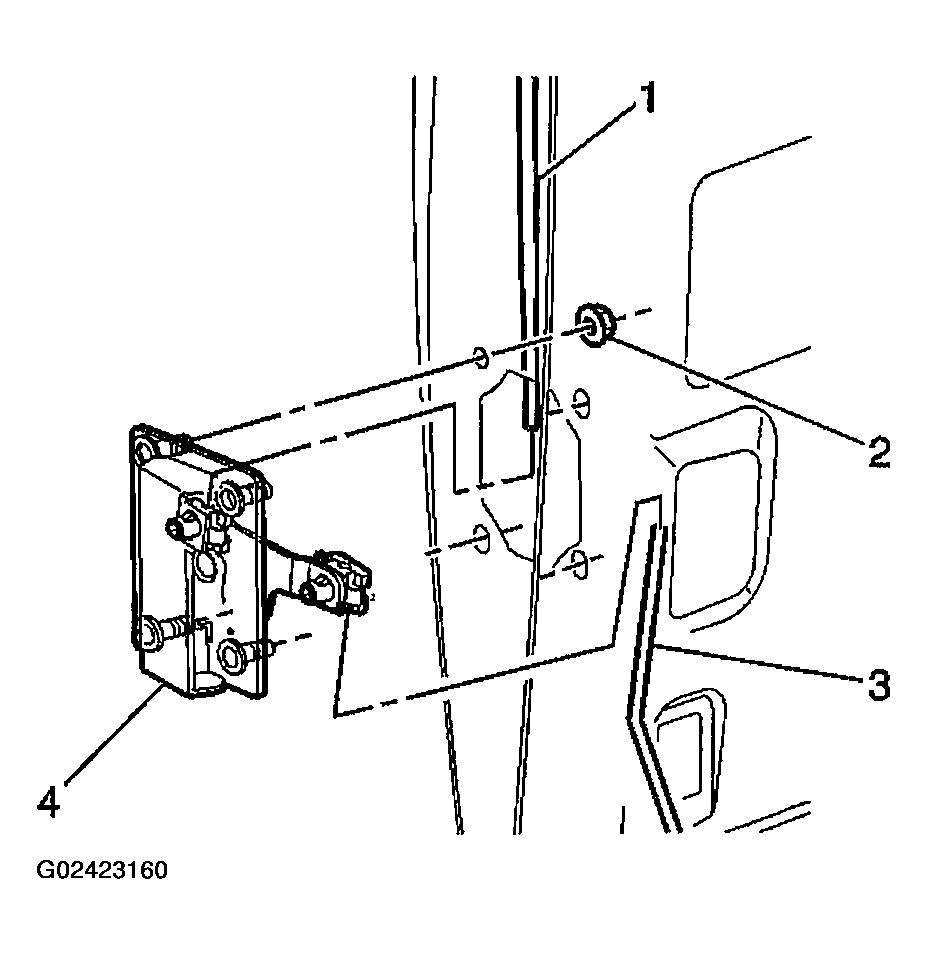

    Fig 1: Removing Side Rear Door Latch Control Handle
    G02423160Courtesy of GENERAL MOTORS CORP.
