Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the J 9886-01  , release the retaining clip on the sliding side door inside handle.
  2. Remove the sliding side door inside handle from the sliding side door control assembly.
  3. Remove the sliding side door inside handle from the vehicle.

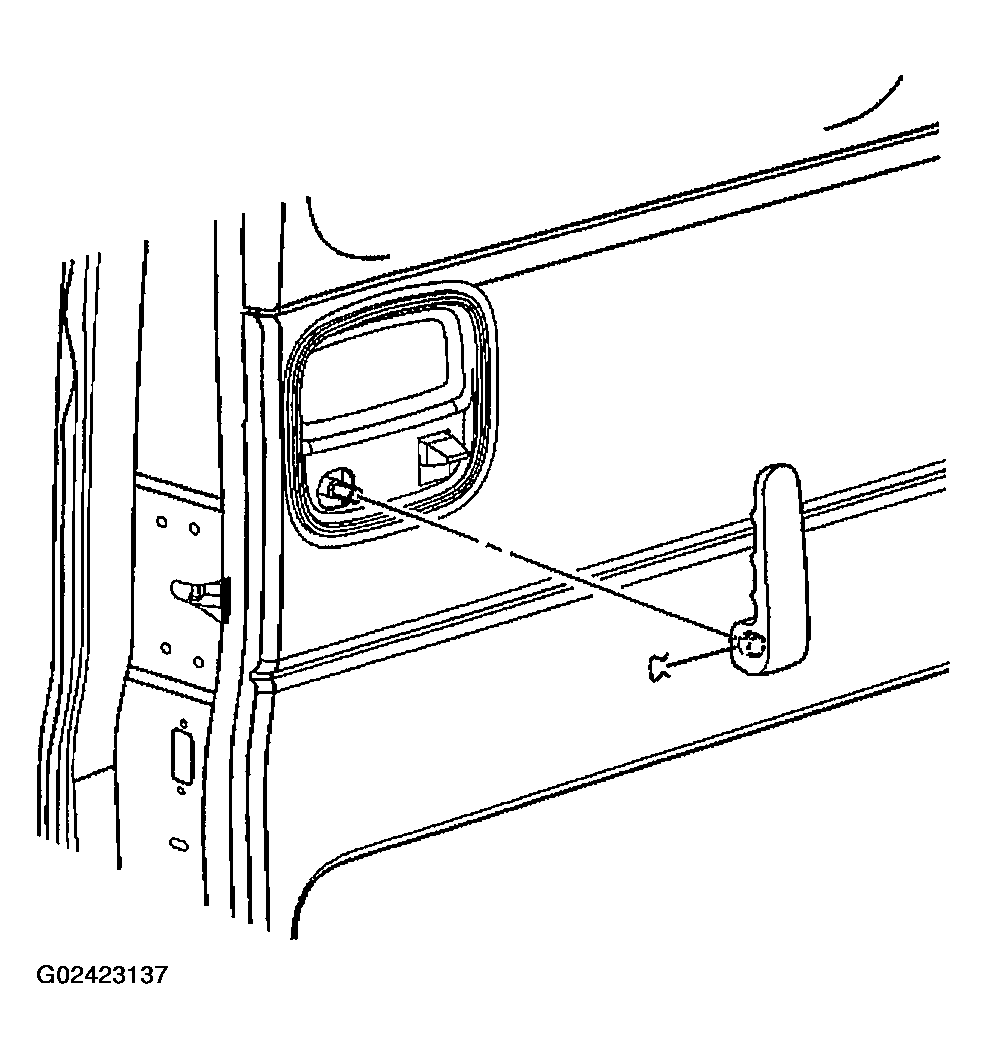

    Fig 1: Removing Sliding Door Inside Handle
    G02423137Courtesy of GENERAL MOTORS CORP.
