Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the inside door handle bezel (1) to the front door trim plate.
  2. Press the door handle bezel towards the door trim panel in order to engage the retaining tab.

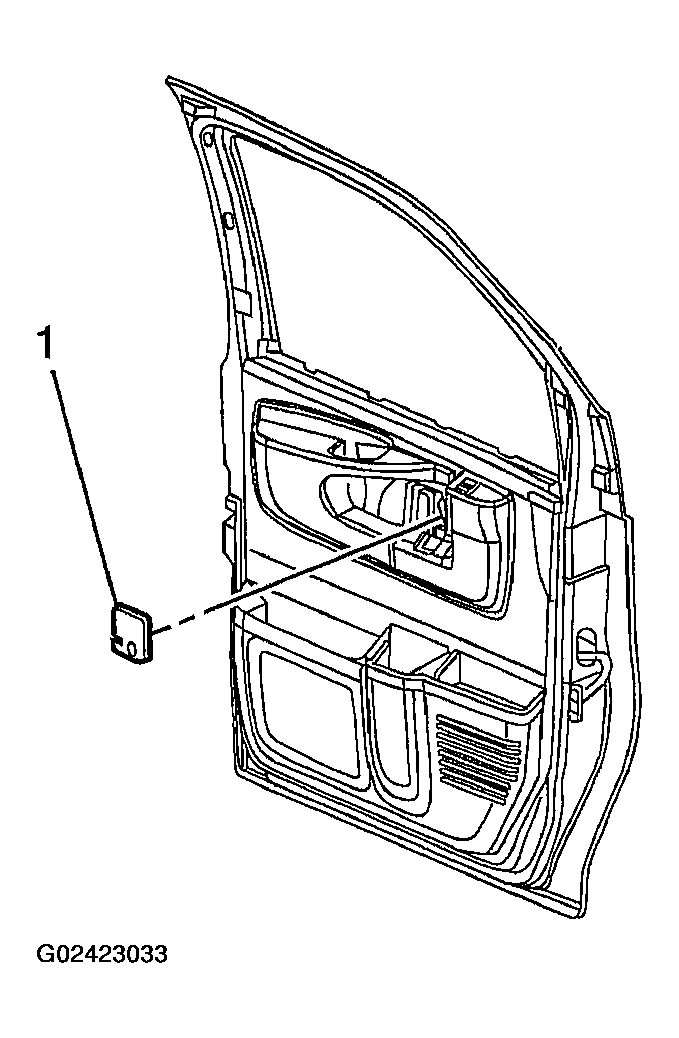

    Fig 1: Installing Inside Door Handle Bezel (Front)
    G02423033Courtesy of GENERAL MOTORS CORP.
