Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window regulator handle, if equipped. Refer to Window Regulator Handle Replacement - Door .
  2. Remove the inside door handle bezel. Refer to Handle Bezel Replacement - Inside - Front .
  3. Remove the screws (2) that retain the front door trim plate (1) to the door panel.
  4. Pull the bottom of the front door trim plate (1) out in order to release the front door trim plate (1) retainers.
  5. Remove the front door trim plate from the front door trim panel.
  6. Disconnect the electrical connectors from the switches on the front door trim plate, if equipped.
  7. Remove the front door trim plate (1) from the vehicle.

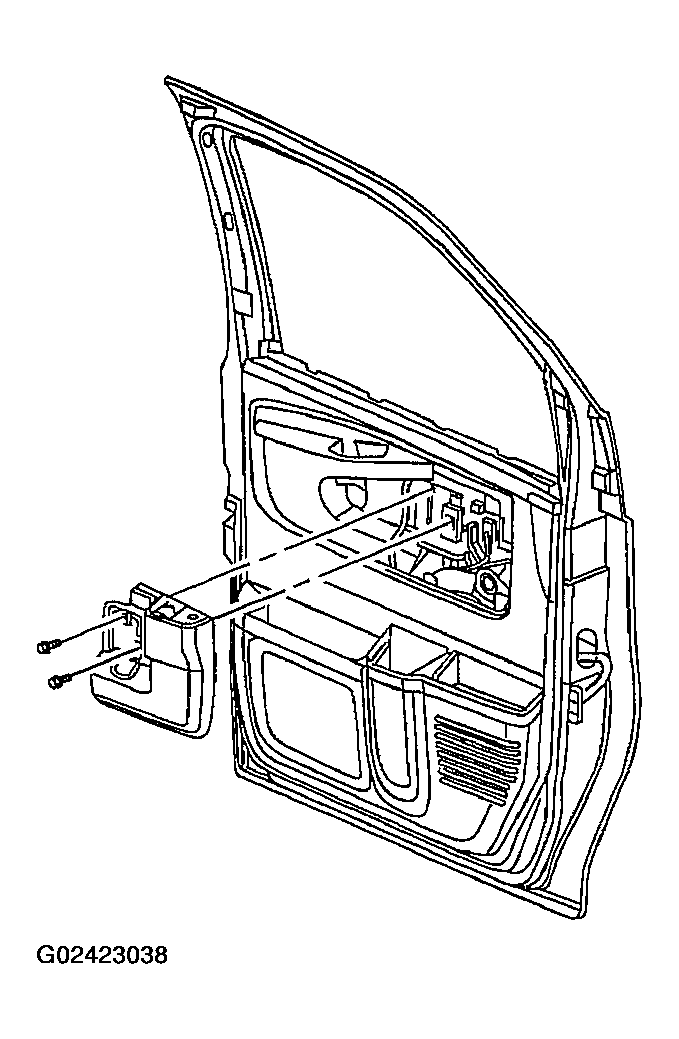

    Fig 1: Removing Front Door Trim Plate
    G02423038Courtesy of GENERAL MOTORS CORP.
