Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window completely.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the lock rods (2) from the lock (6).
  5. Remove the rear run channel from the door. Refer to Window Run Channel Replacement .
  6. Remove the nuts (8) and the bracket (7) that retain the outside door handle (1) to the door.
  7. Remove the outside door handle (1) from the door.

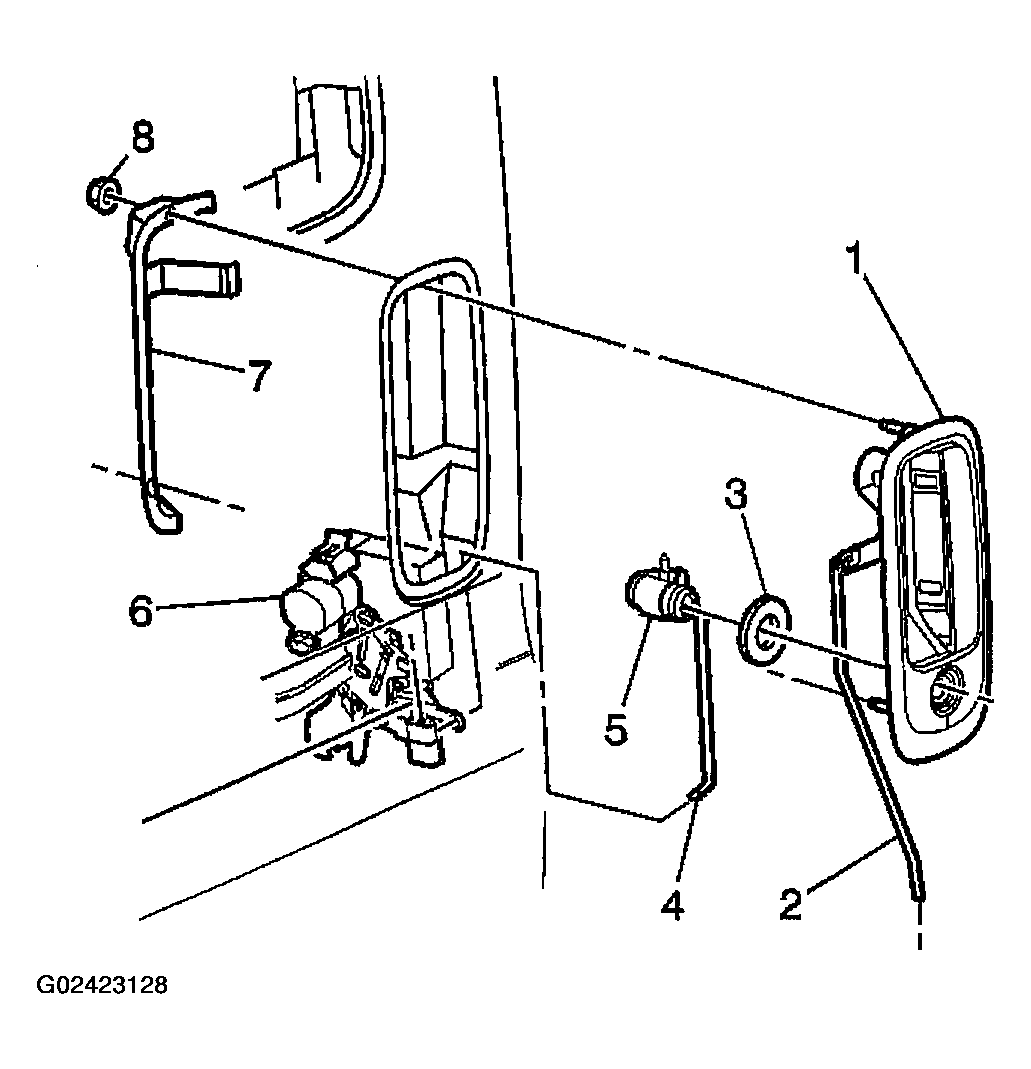

    Fig 1: Removing Outside Door Handle
    G02423128Courtesy of GENERAL MOTORS CORP.
