EVAP Canister: Installation

To install, reverse removal procedure. Tighten EVAP canister mounting bolts to specification. See TORQUE SPECIFICATIONS . Lower vehicle.

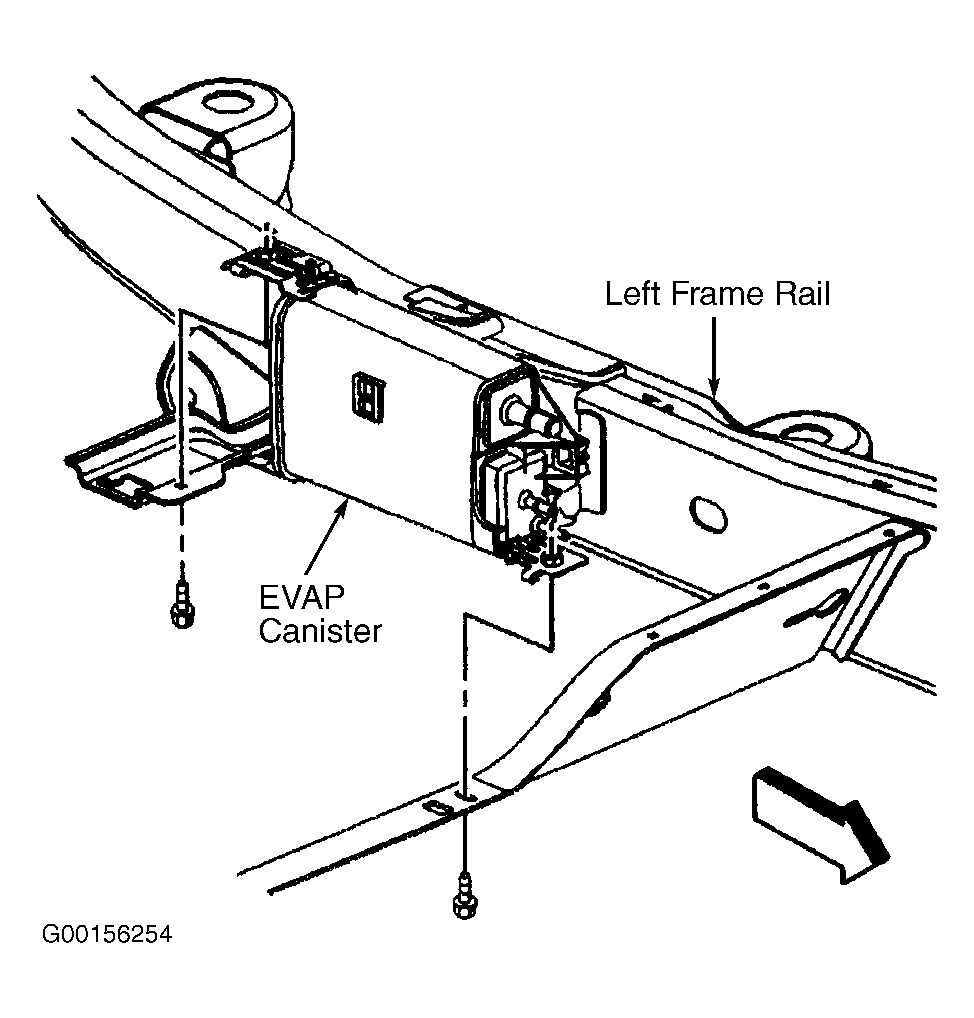

Fig 1: Locating EVAP Canister (Mounted To Frame Rail)

Courtesy of GENERAL MOTORS CORP.

To install, reverse removal procedure. Tighten EVAP canister mounting bolts to specification. See TORQUE SPECIFICATIONS . Lower vehicle.

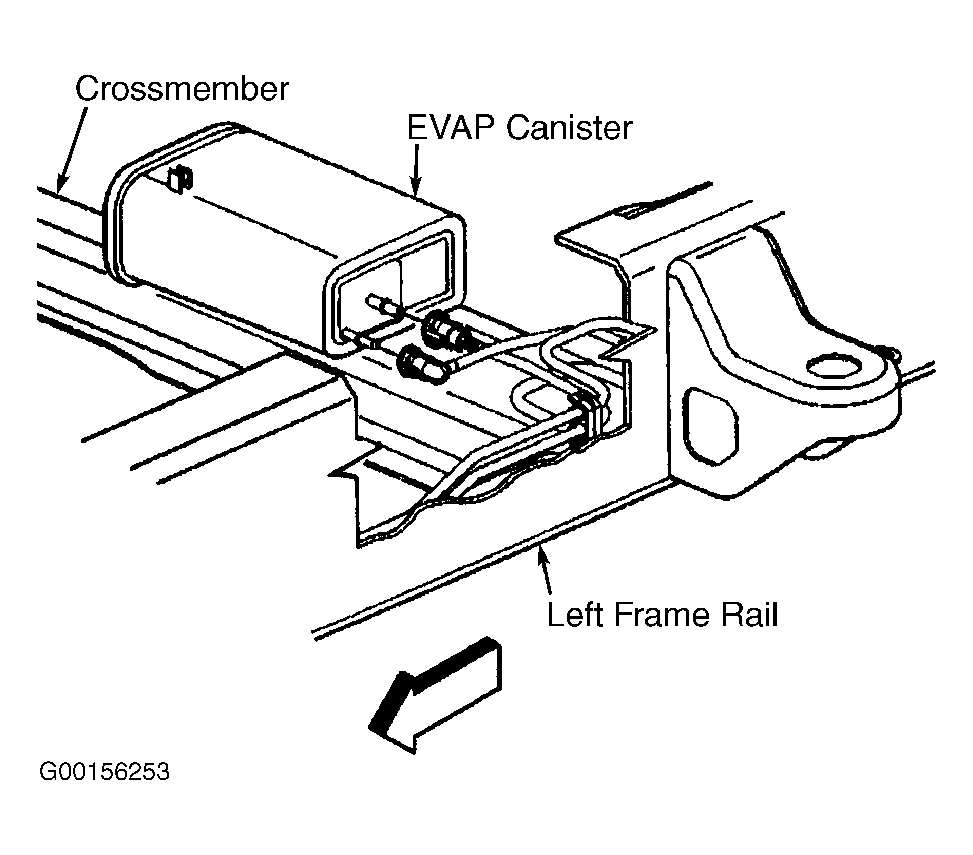

Fig 1: Locating EVAP Canister (Mounted To Crossmember)

Courtesy of GENERAL MOTORS CORP.
