Scan Tool Output Controls

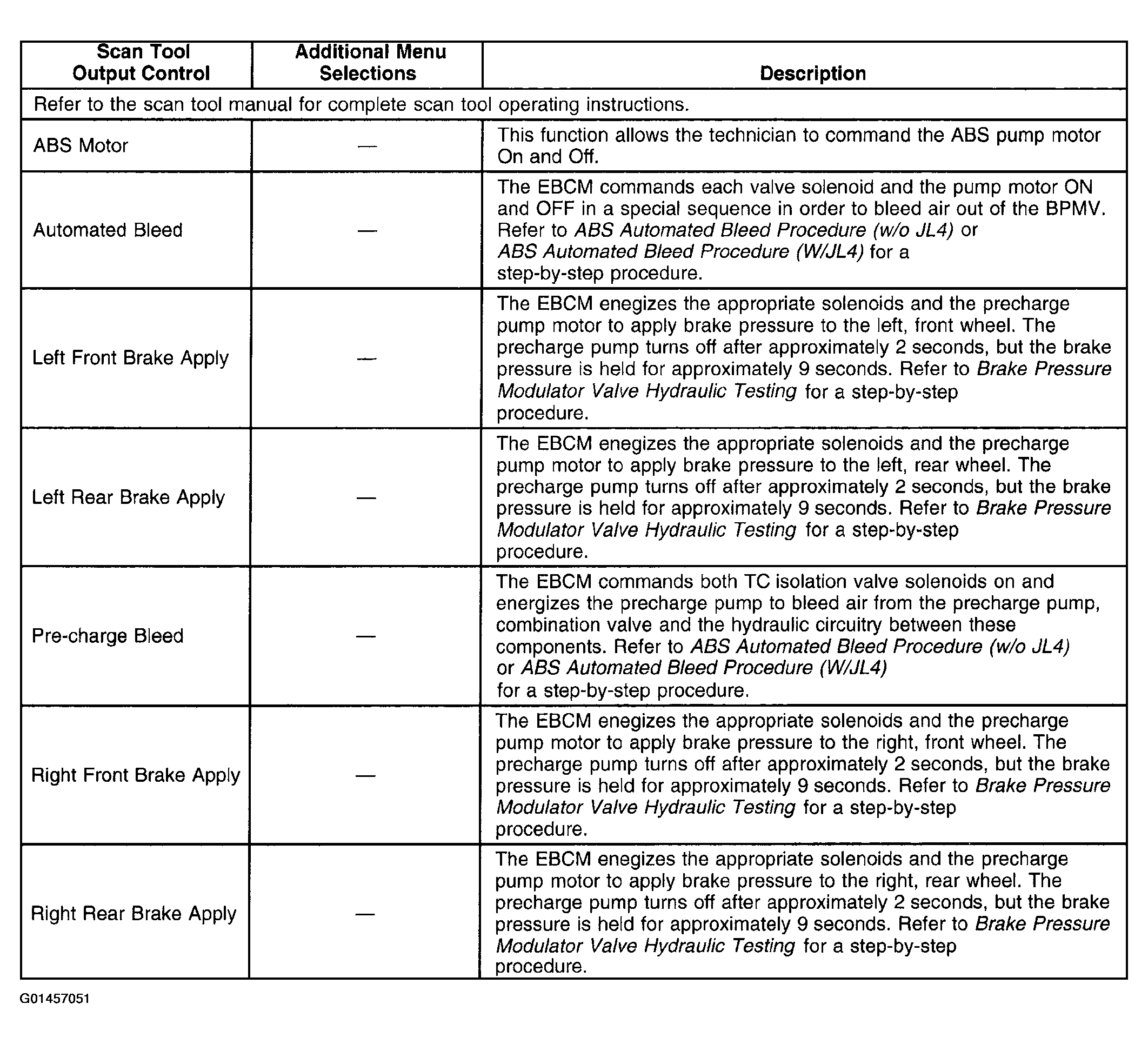

Fig 1: Scan Tool Output Controls (w/JL4) Description (1 Of 2)
G01457051Courtesy of GENERAL MOTORS CORP.

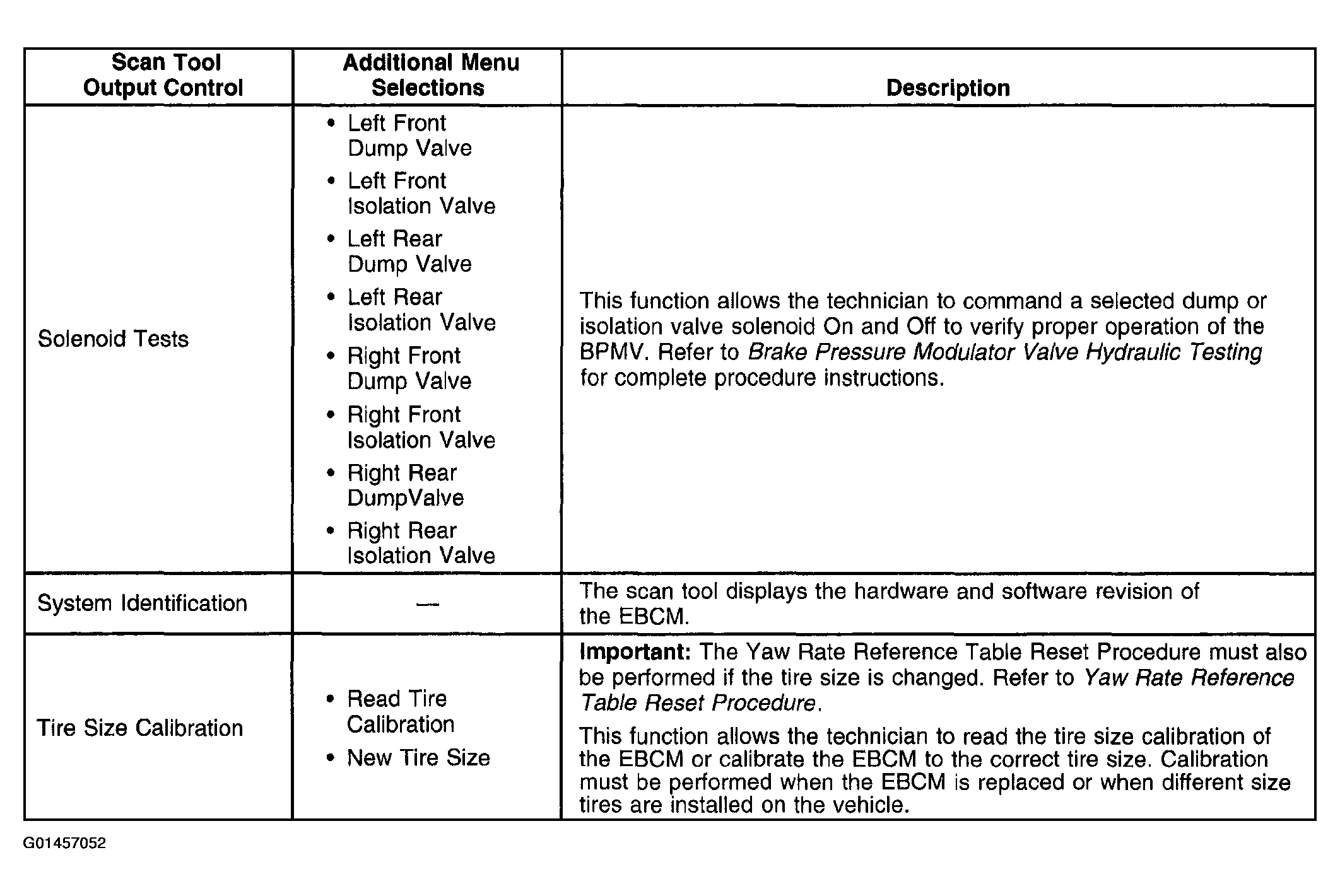

Fig 2: Scan Tool Output Controls (w/JL4) Description (2 Of 2)
G01457052Courtesy of GENERAL MOTORS CORP.

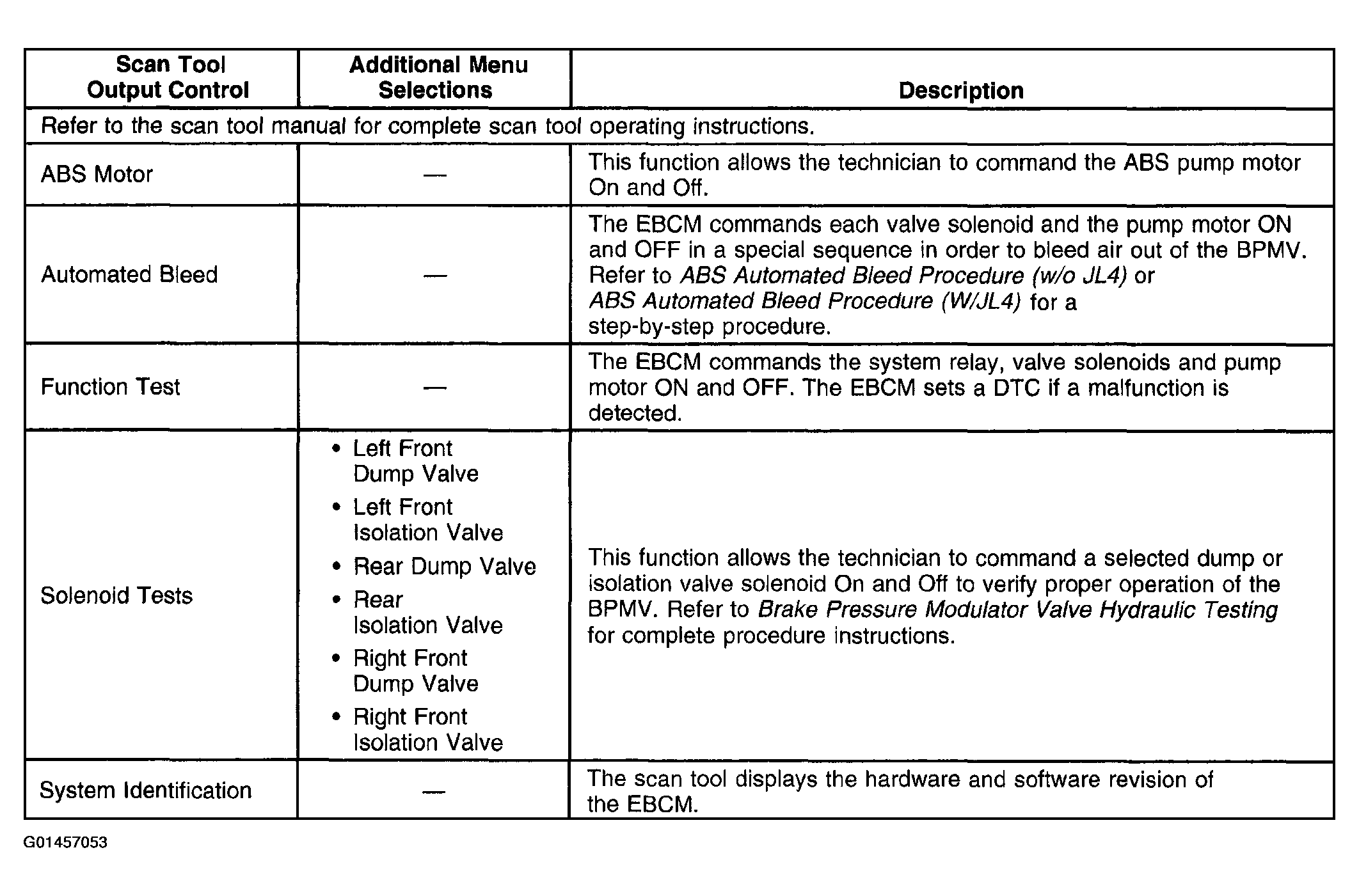

Fig 3: Scan Tool Output Controls (w/NW7) Description (1 Of 2)
G01457053Courtesy of GENERAL MOTORS CORP.
Fig 4: Scan Tool Output Controls (w/NW7) Description (2 Of 2)
G01457054Courtesy of GENERAL MOTORS CORP.

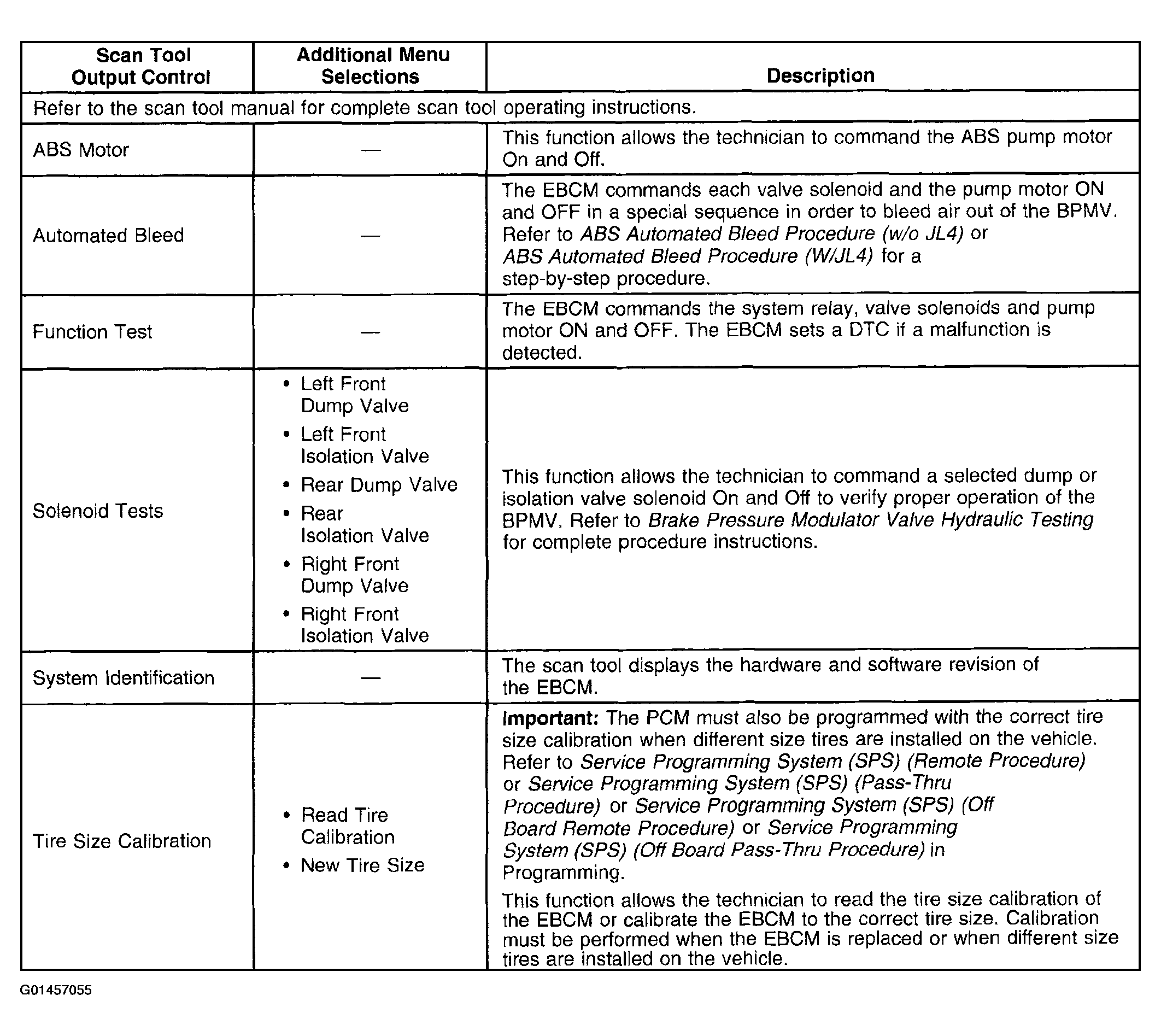

Fig 5: Scan Tool Output Controls (w/o JL4 Or NW7) Description
G01457055Courtesy of GENERAL MOTORS CORP.
