Door Lock/Indicator Wiring Schematics (Driver Door Lock Controls)

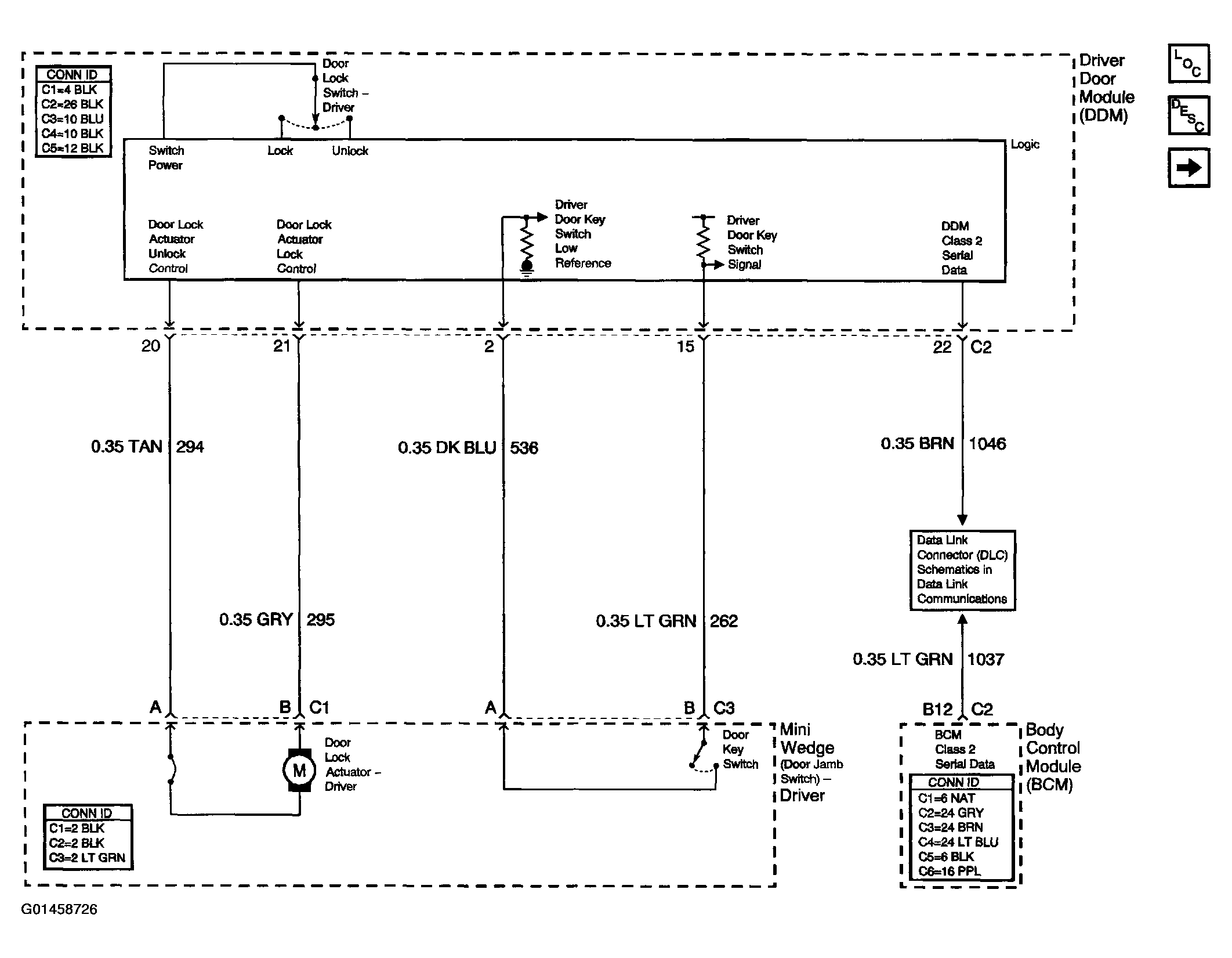

Fig 1: Door Lock/Indicator Schematics (Driver Door Lock Controls)

Courtesy of GENERAL MOTORS CORP.

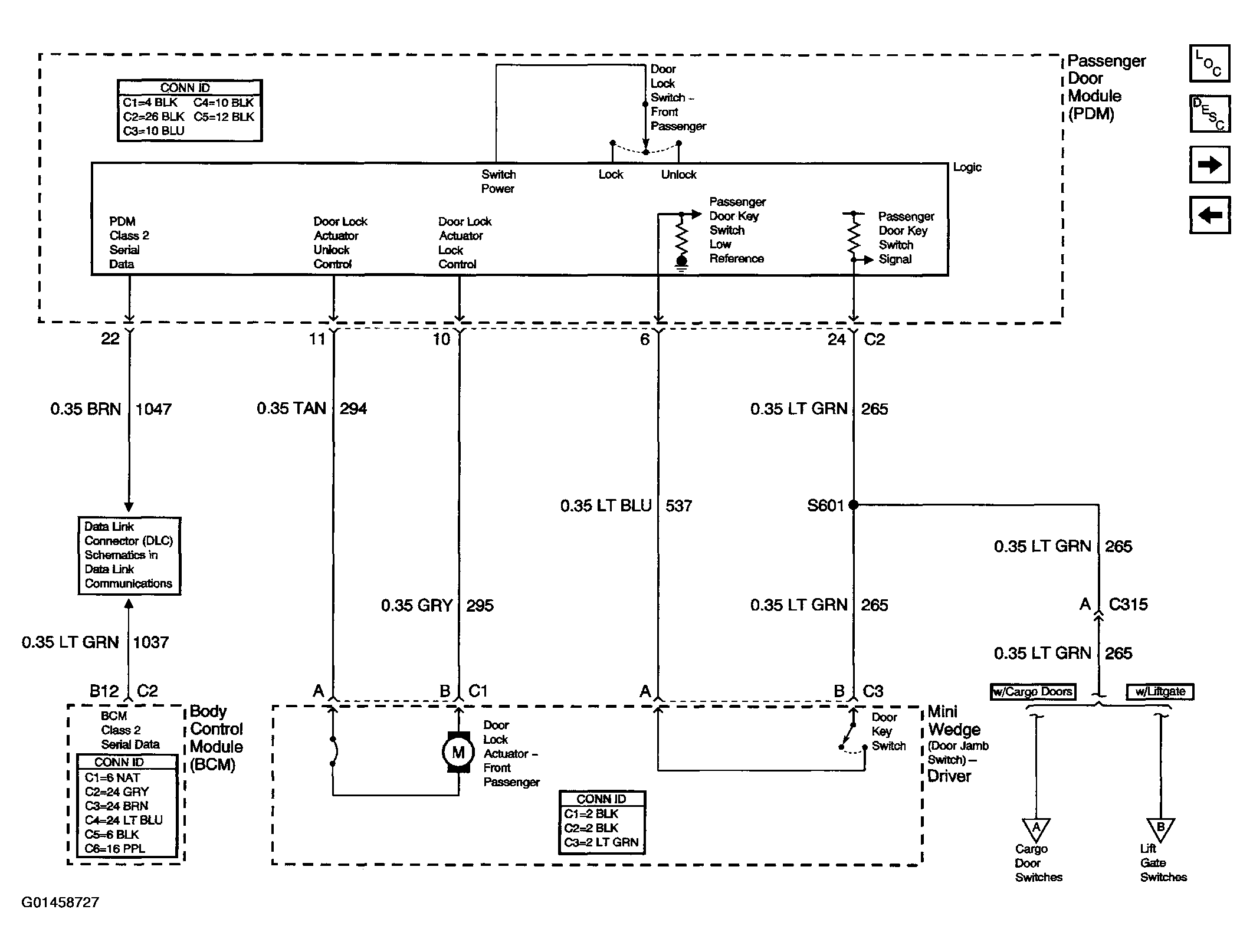

Fig 2: Door Lock/Indicator Schematics (Front Passenger Door Lock Controls)

Courtesy of GENERAL MOTORS CORP.

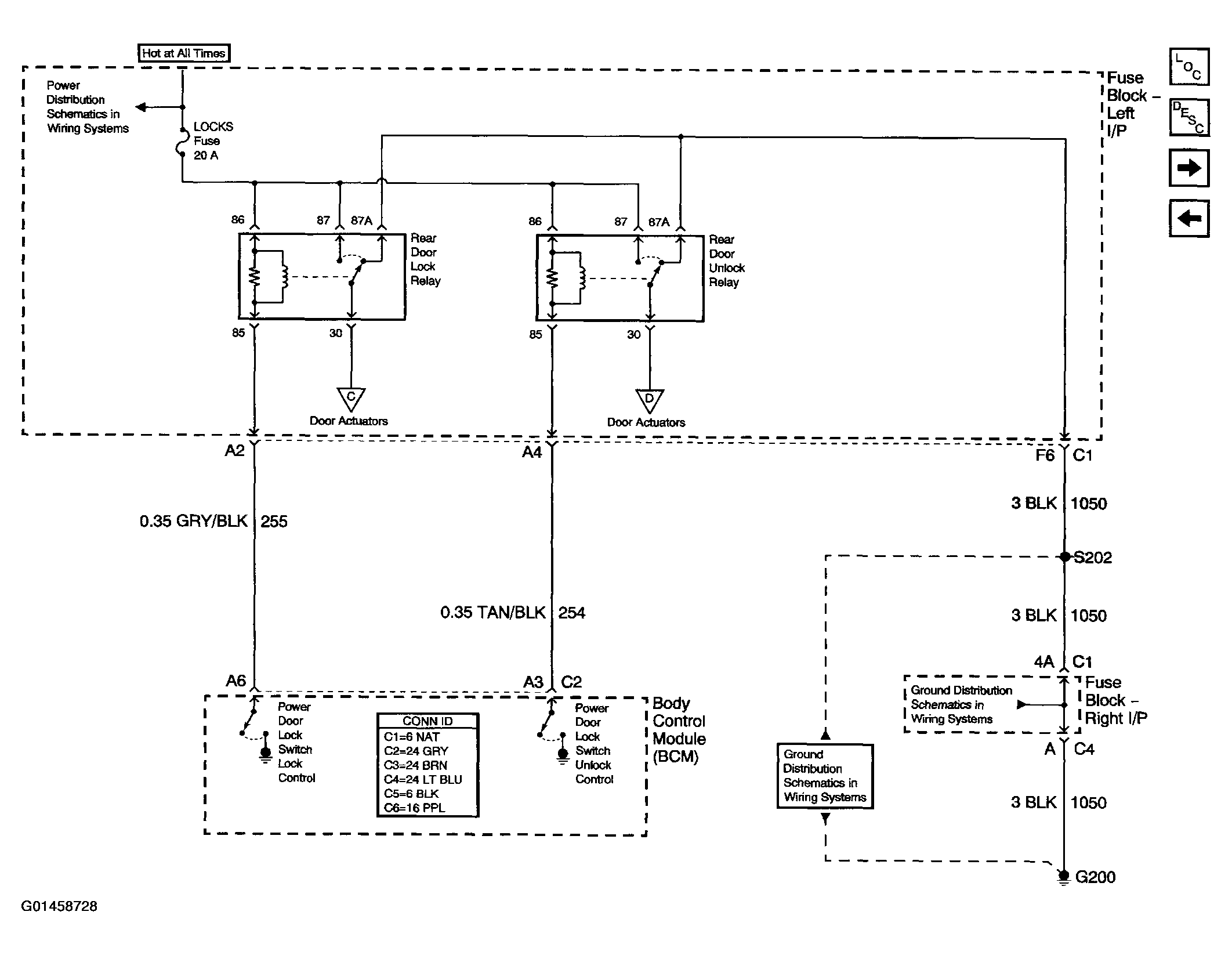

Fig 3: Door Lock/Indicator Schematics (Door Lock Relay Controls)

Courtesy of GENERAL MOTORS CORP.

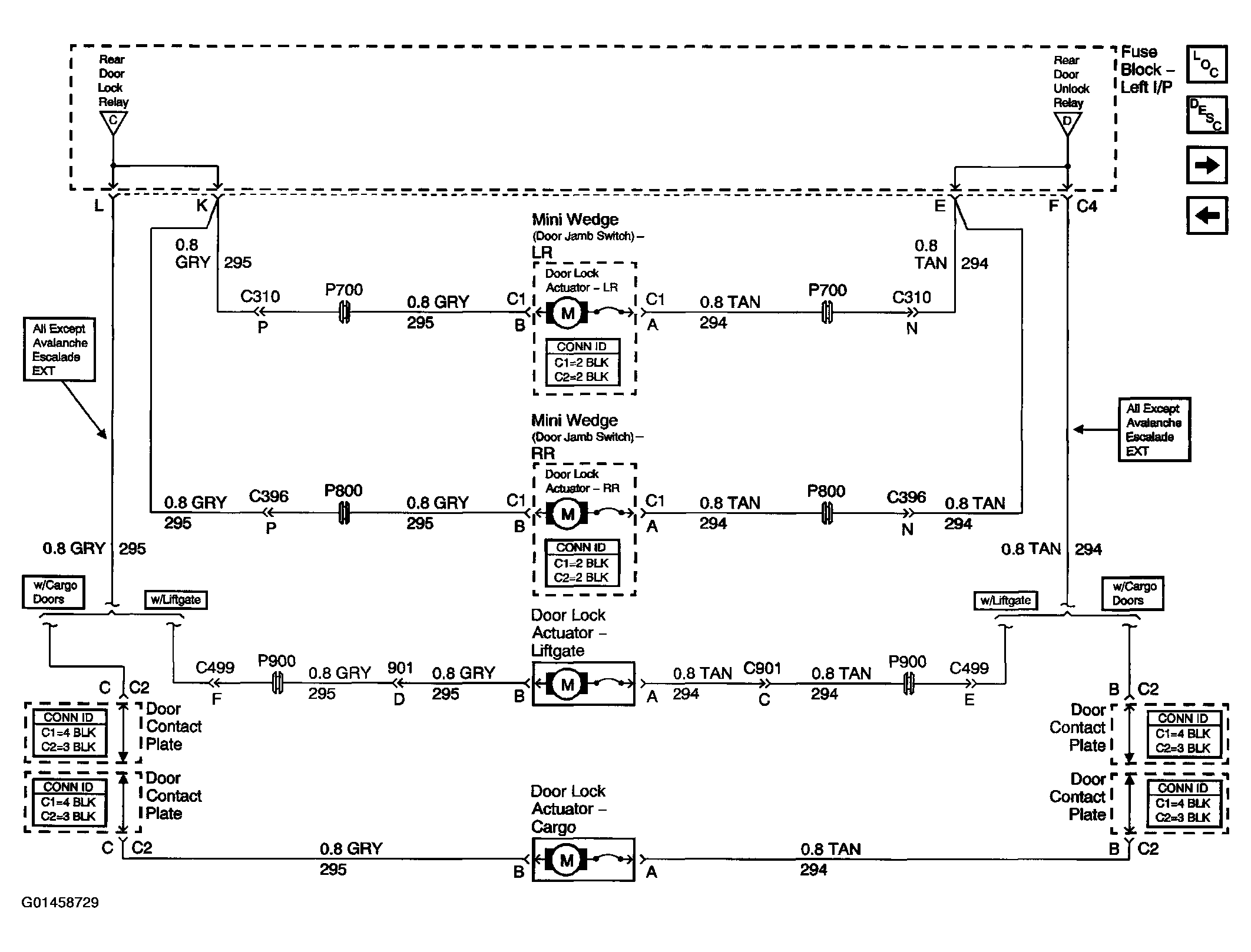

Fig 4: Door Lock/Indicator Schematics (Rear Door Lock Actuators)

Courtesy of GENERAL MOTORS CORP.

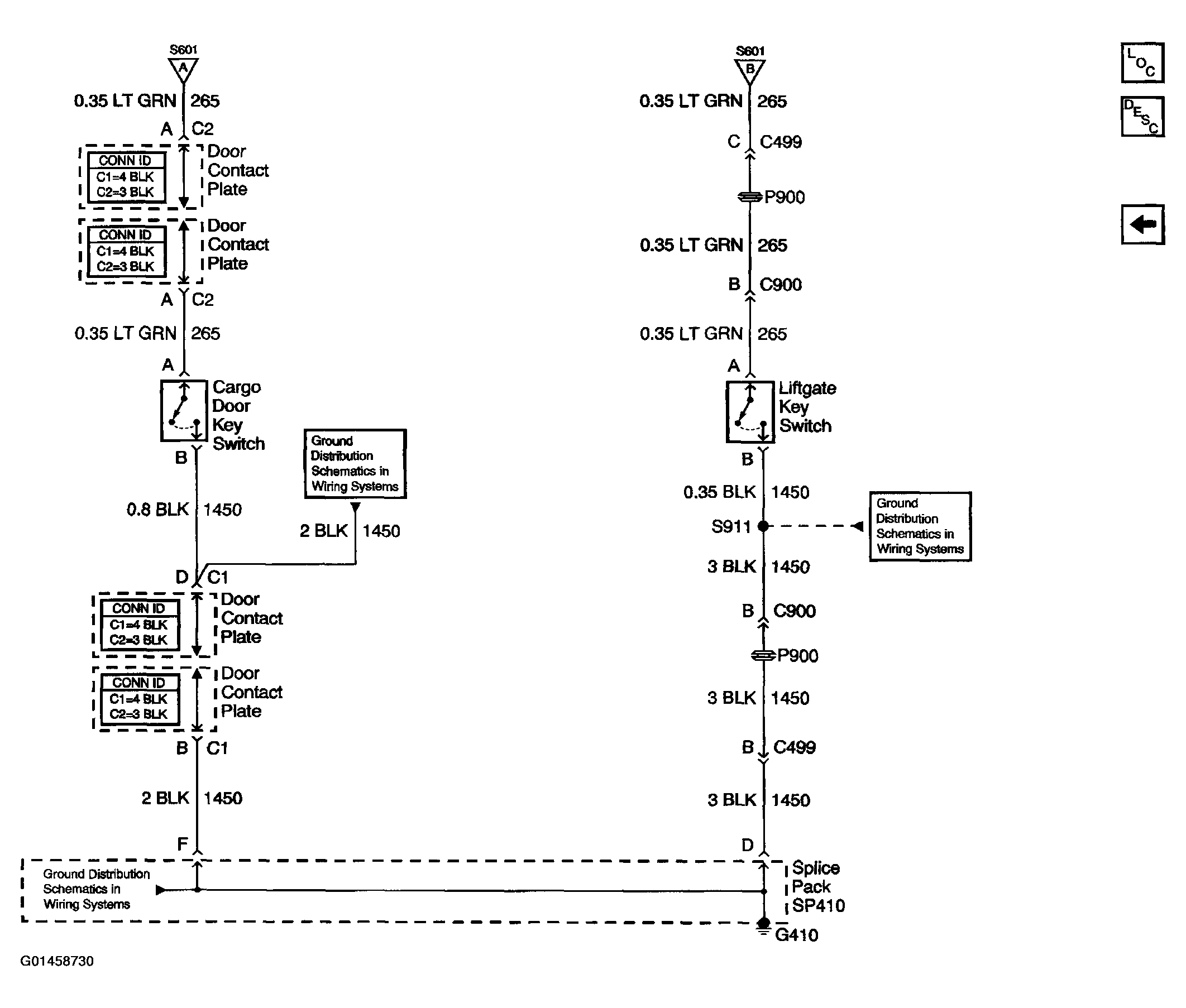

Fig 5: Door Lock/Indicator Schematics (Rear Key Switches And Rear Cargo Door Lock Switch)

Courtesy of GENERAL MOTORS CORP.
