Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the electrical connectors.
  3. Remove the screw that retains the switch panel bezel (1) from the front door panel.
    4. Fig 1: Front Door Switch Panel Bezel Screw
    G01458835Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch panel bezel from the door panel using a flat-bladed tool.
    5. Fig 2: Removing Switch Panel
    G01458836Courtesy of GENERAL MOTORS CORP.
  5. Using a wide plastic flat-bladed tool, release the retaining clips on both sides of the door module.
  6. Remove the door module from the switch panel bezel.

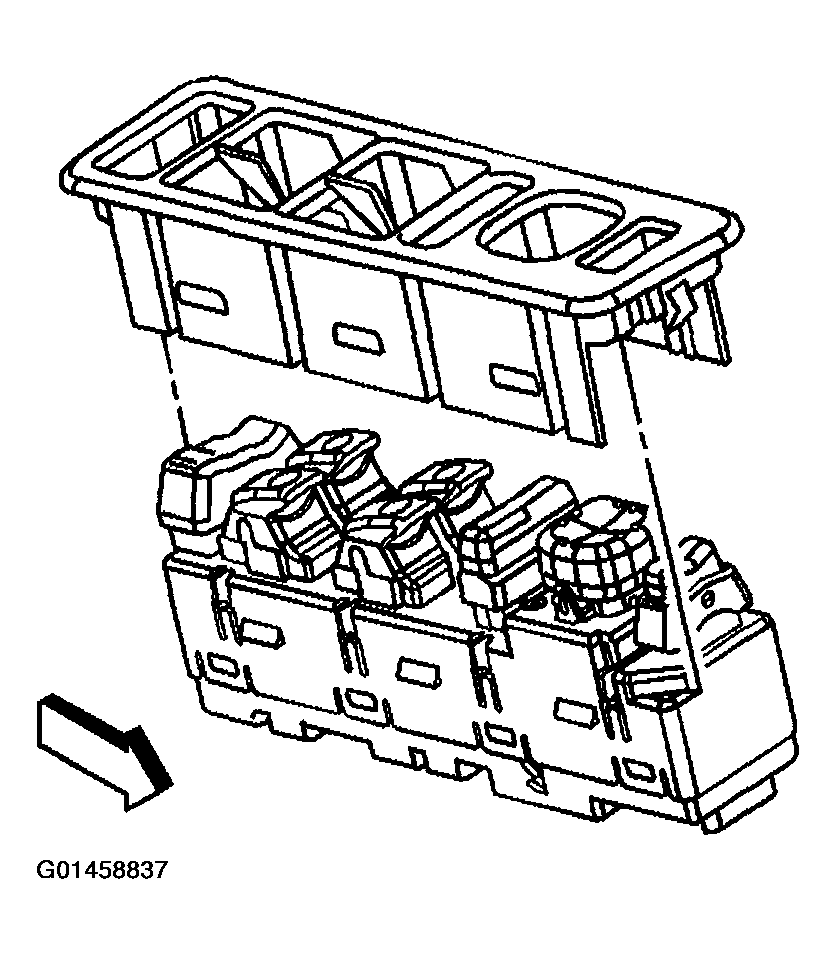

    7. Fig 3: Removing Door Module From Switch
    G01458837Courtesy of GENERAL MOTORS CORP.
