Removal Procedure

  1. Raise the window completely.
  2. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Remove the outside door handle. Refer to DOOR HANDLE REPLACEMENT - OUTSIDE  .
  5. Remove the clip that retains the lock cylinder lever to the lock cylinder.
  6. Remove the lock cylinder retainer. Remove the lock cylinder from the outside door handle.

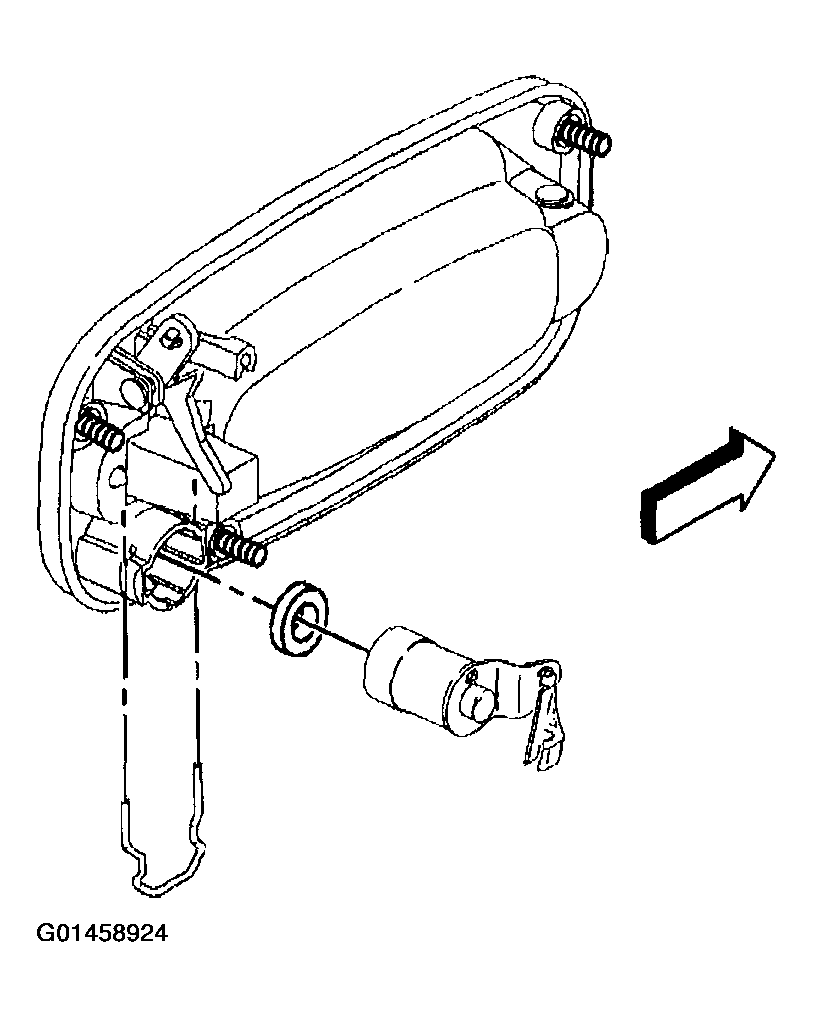

    7. Fig 1: Removing Procedure Lock Cylinder Door
    G01458924Courtesy of GENERAL MOTORS CORP.
