Installation Procedure

  1. Install the power steering gear heat shield.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering gear heat shield mounting bolts.

    Tighten

    Tighten the power steering gear heat shield mounting bolts to 9 N.m (79 lb in).

  3. Install the electrical harness clip to the power steering gear heat shield.
  4. Rotate the stabilizer shaft into position.
  5. Install the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT (FE1, FE3) or STABILIZER SHAFT LINK REPLACEMENT (FE7) in Front Suspension.
  6. Lower the vehicle.

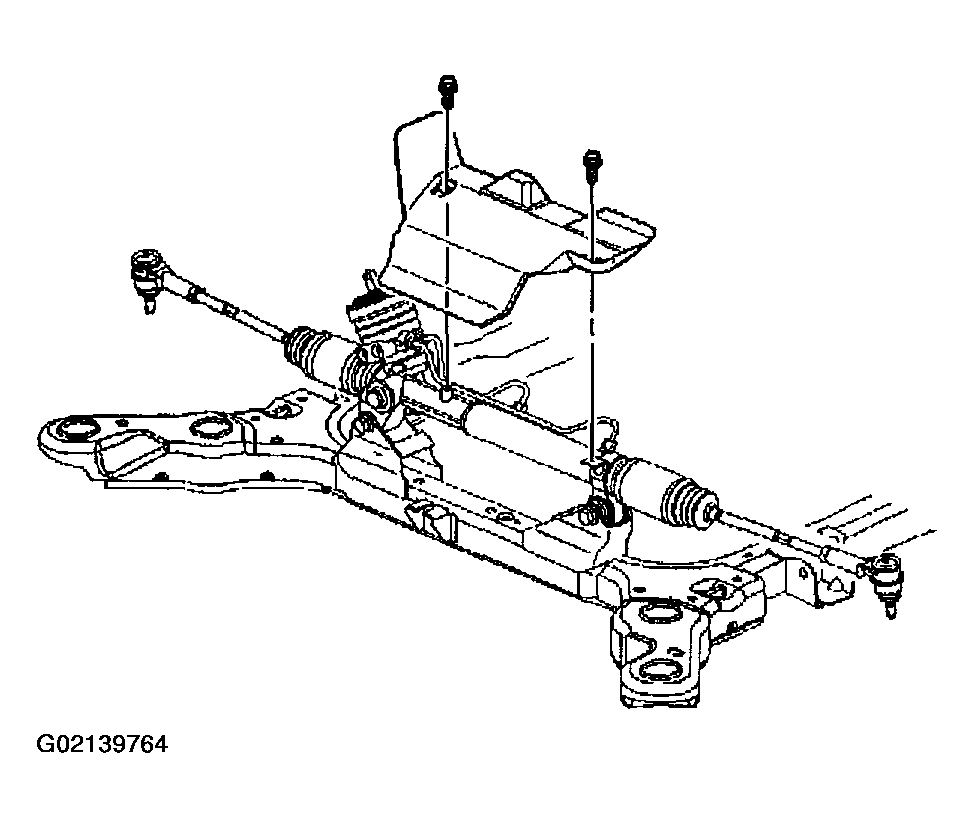

    Fig 1: Installing Power Steering Gear Heat Shield Mounting Bolts
    G02139764Courtesy of GENERAL MOTORS CORP.
