Sunshade Switch Connector End View

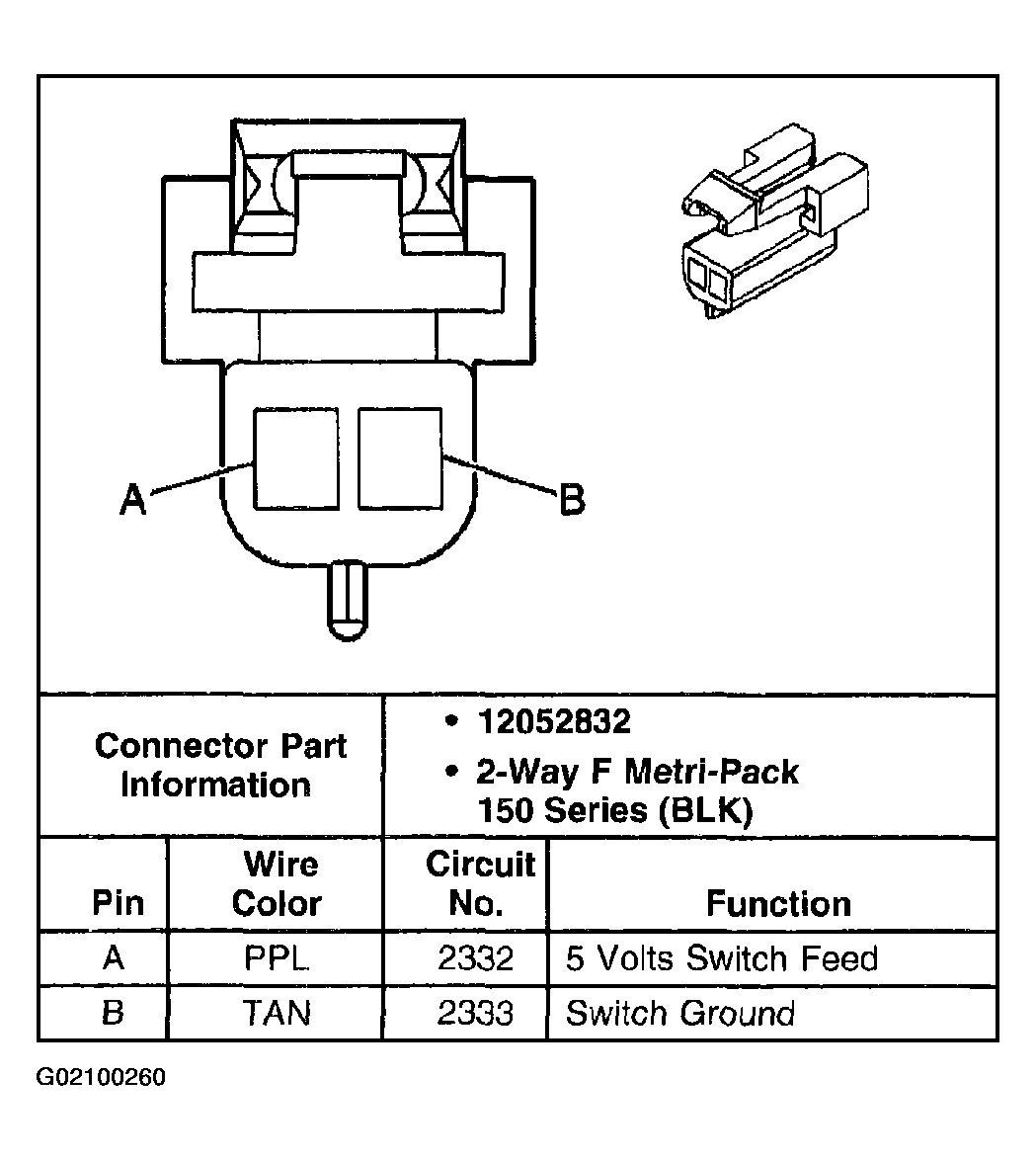

Fig 1: Sunshade Switch

G02100260

Courtesy of GENERAL MOTORS CORP.
