Sunroof Switch Connector End View

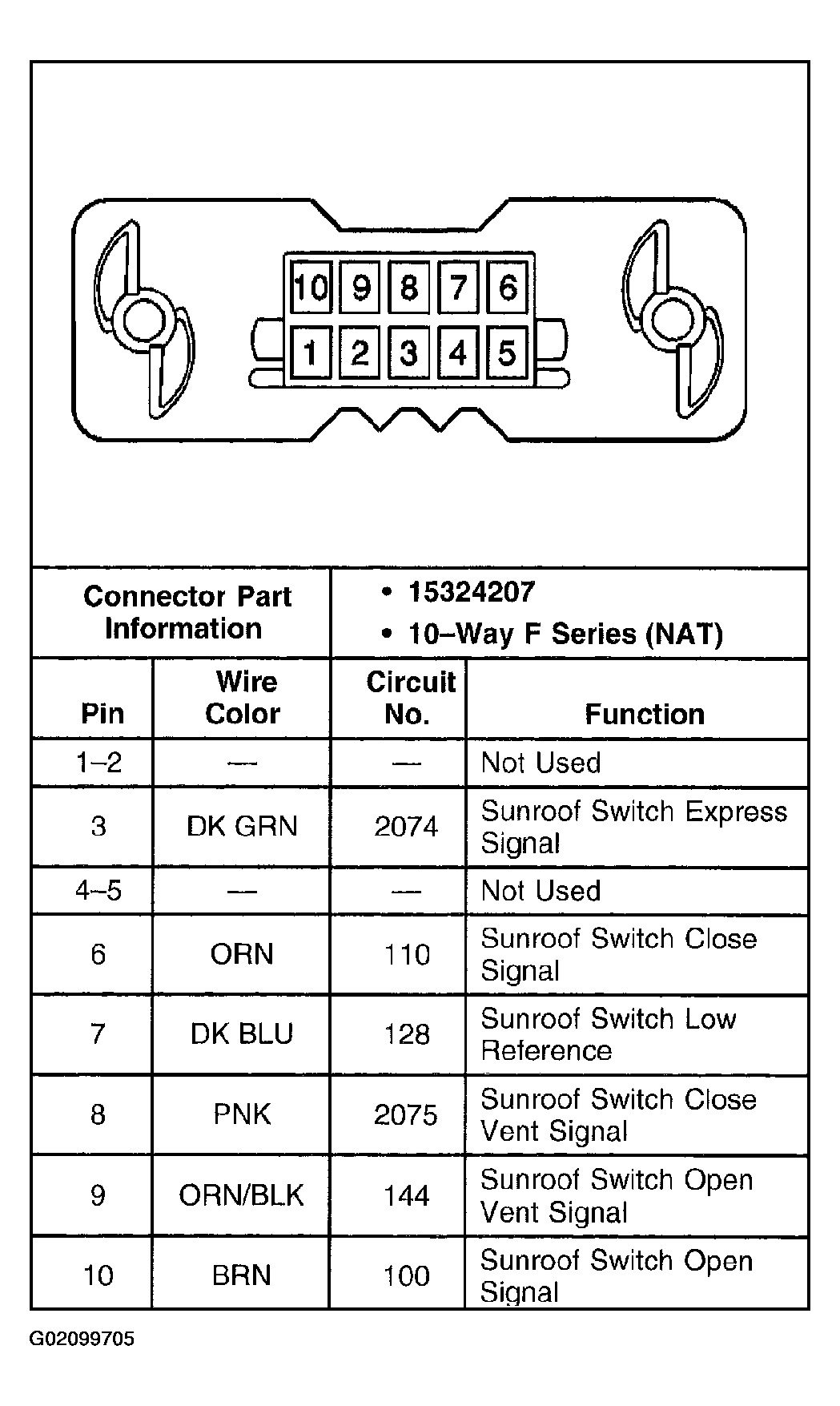

Fig 1: Sunroof Switch

G02099705

Courtesy of GENERAL MOTORS CORP.
