Steering Column Module Connector End View C2 - Tilt Actuator

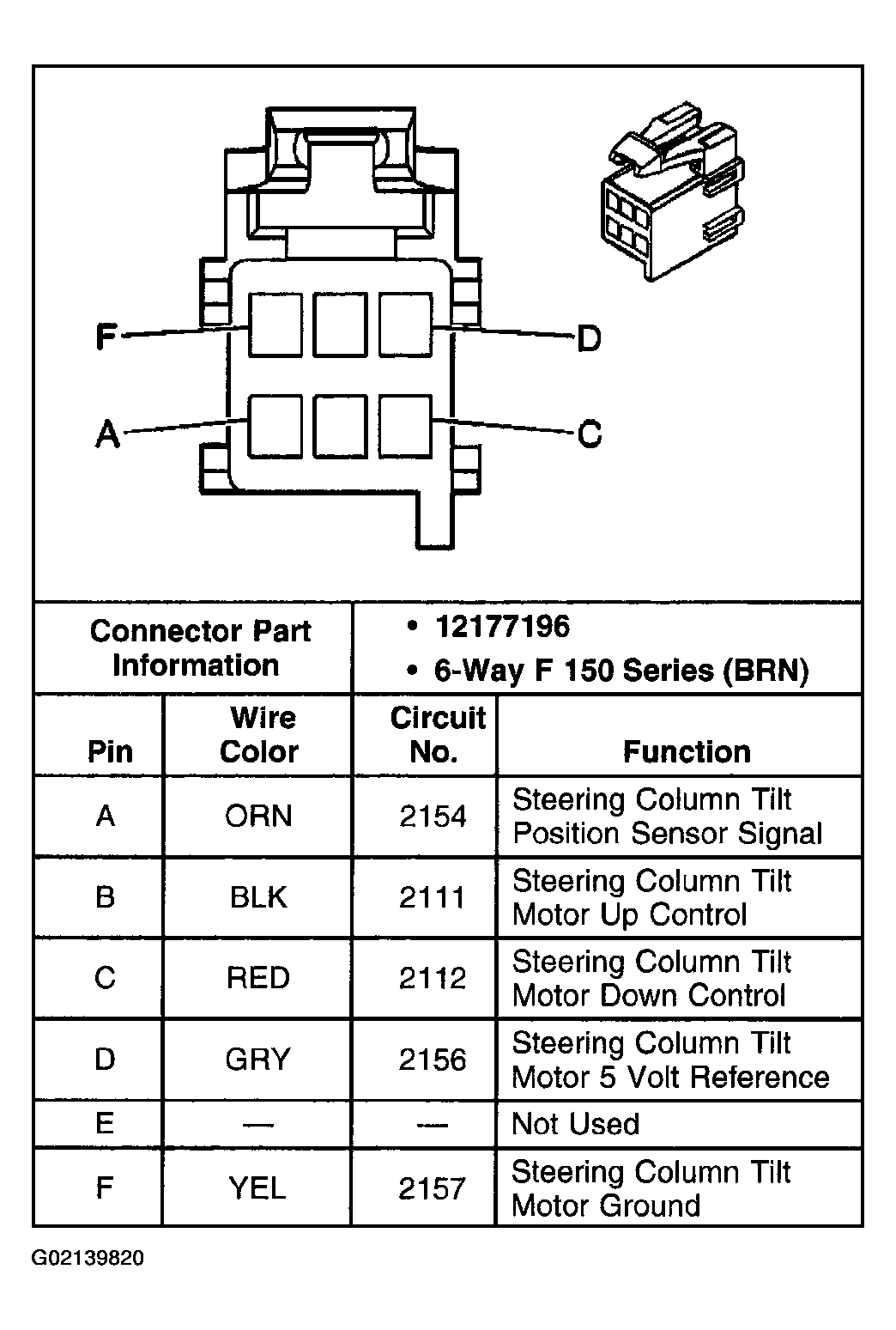

Fig 1: Steering Column Module C2 - Tilt Actuator

G02139820

Courtesy of GENERAL MOTORS CORP.
