Passenger Front Door Module (PFDM) Connector End View C4

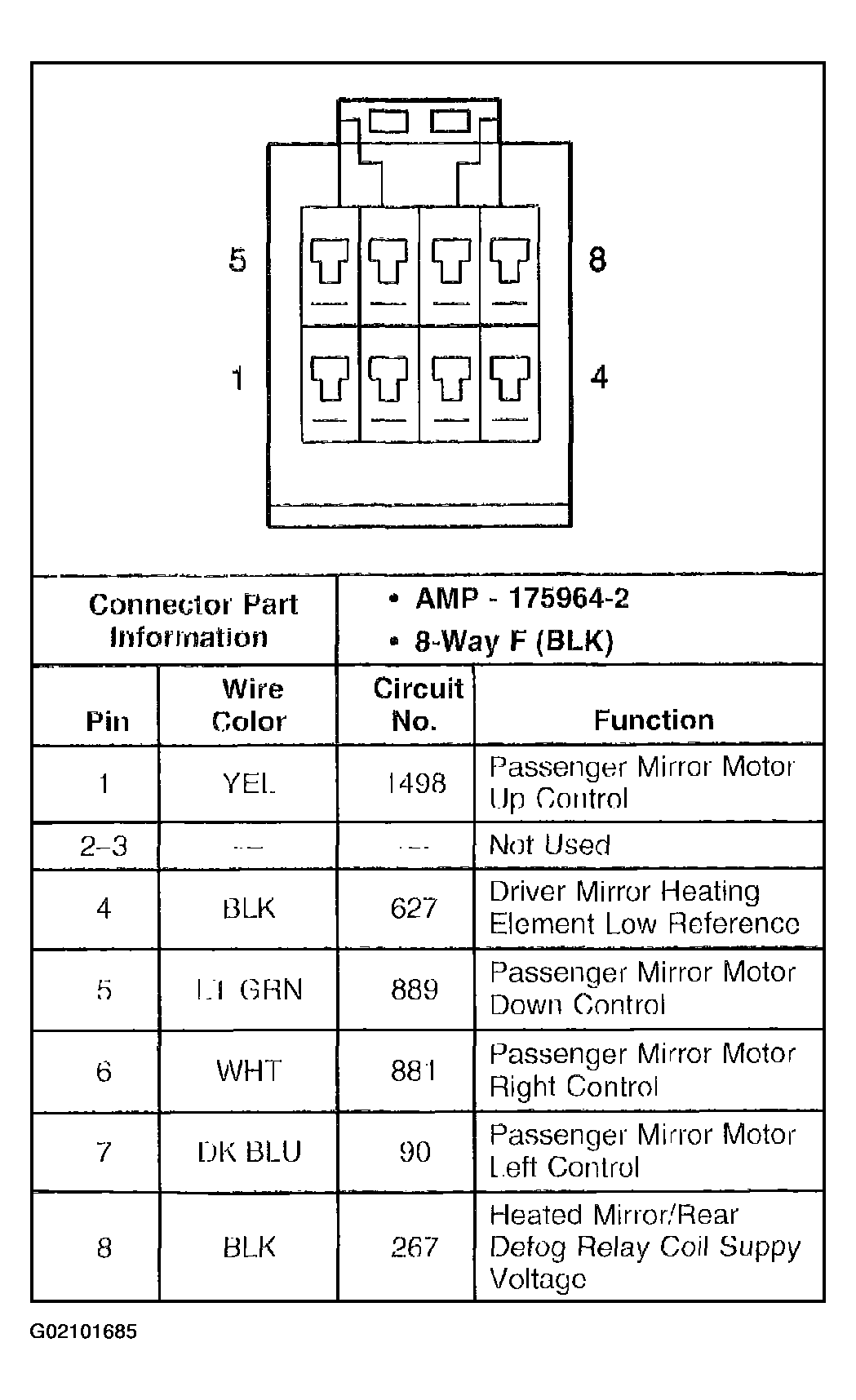

Fig 1: Passenger Front Door Module (PFDM) C4

G02101685

Courtesy of GENERAL MOTORS CORP.
