Passenger Front Door Module (PFDM) Connector End View C3

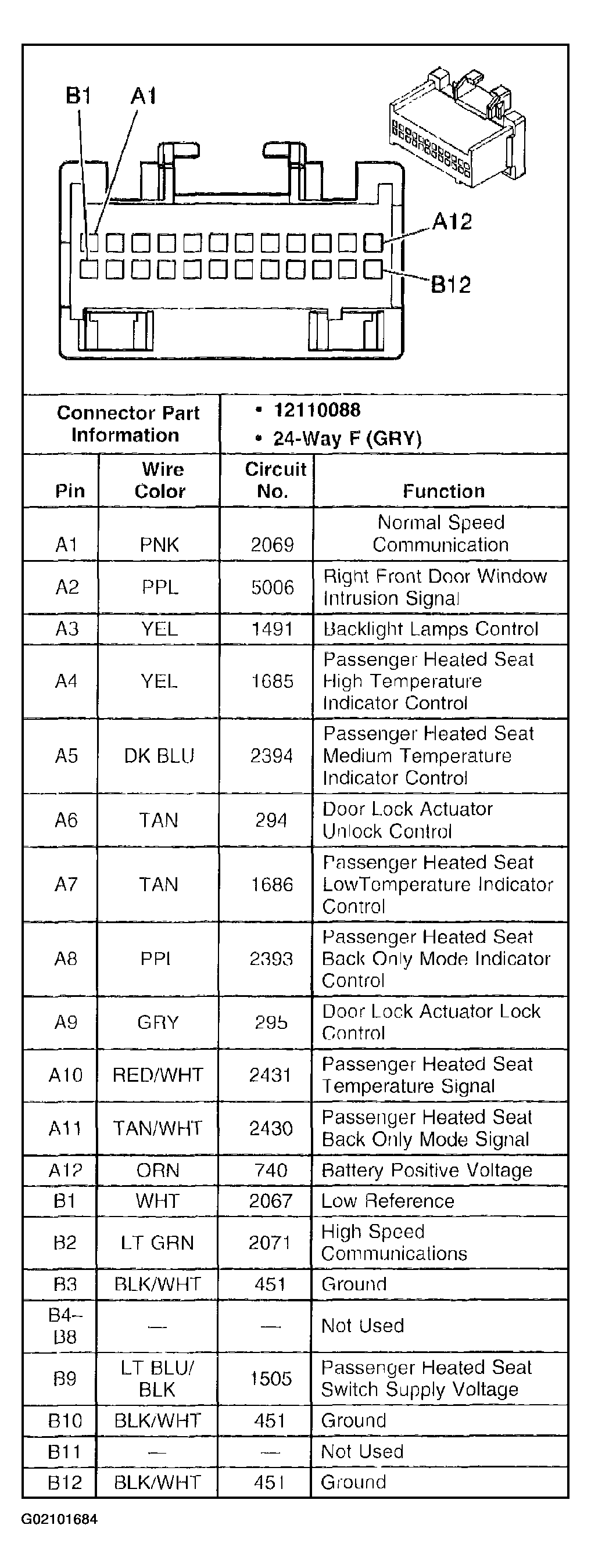

Fig 1: Passenger Front Door Module (PFDM) C3

G02101684

Courtesy of GENERAL MOTORS CORP.
