Passenger Front Door Module (PFDM) Connector End View C1

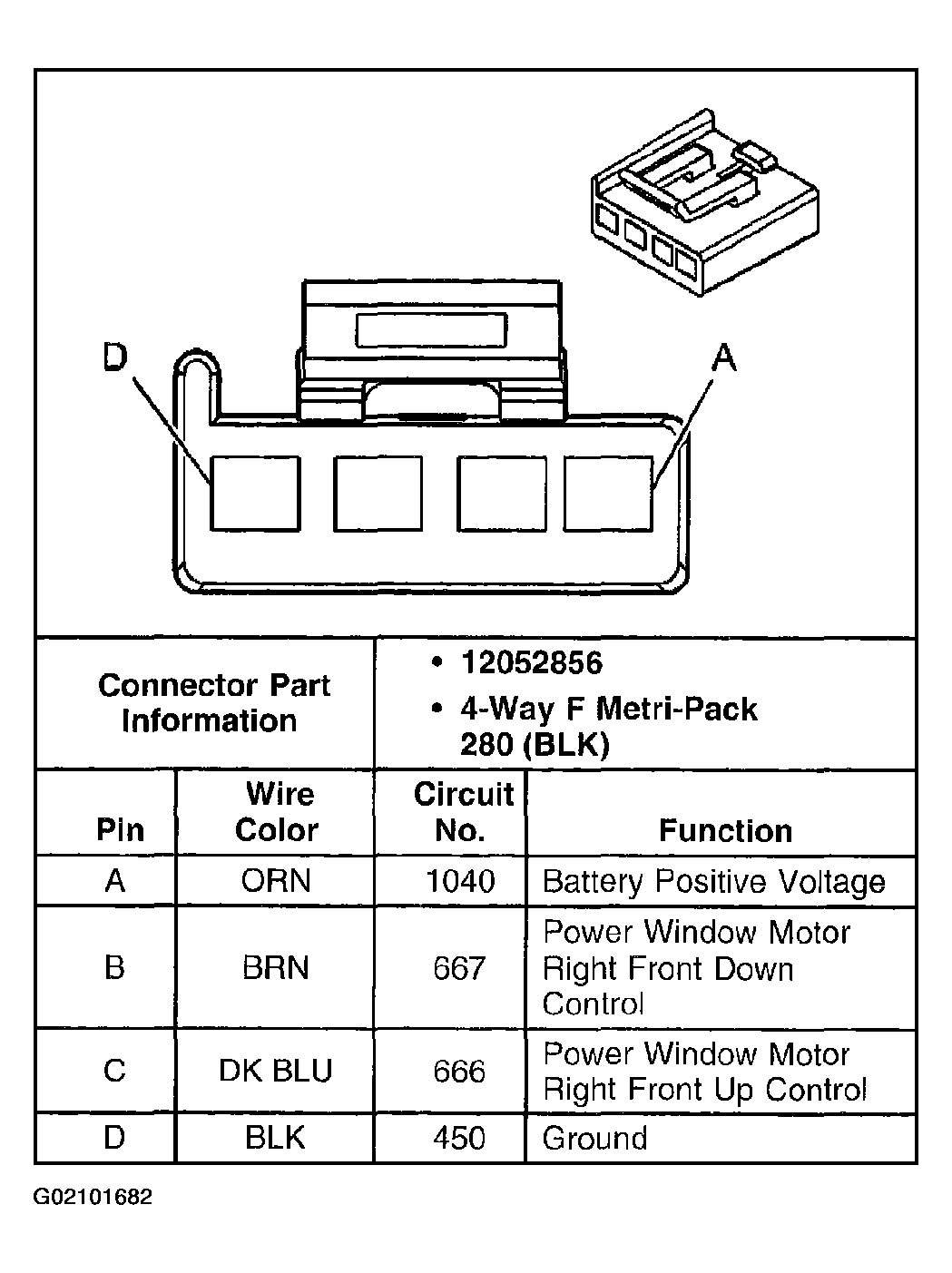

Fig 1: Passenger Front Door Module (PFDM) C1

G02101682

Courtesy of GENERAL MOTORS CORP.
