Driver Information Center Switch Connector End View - Right

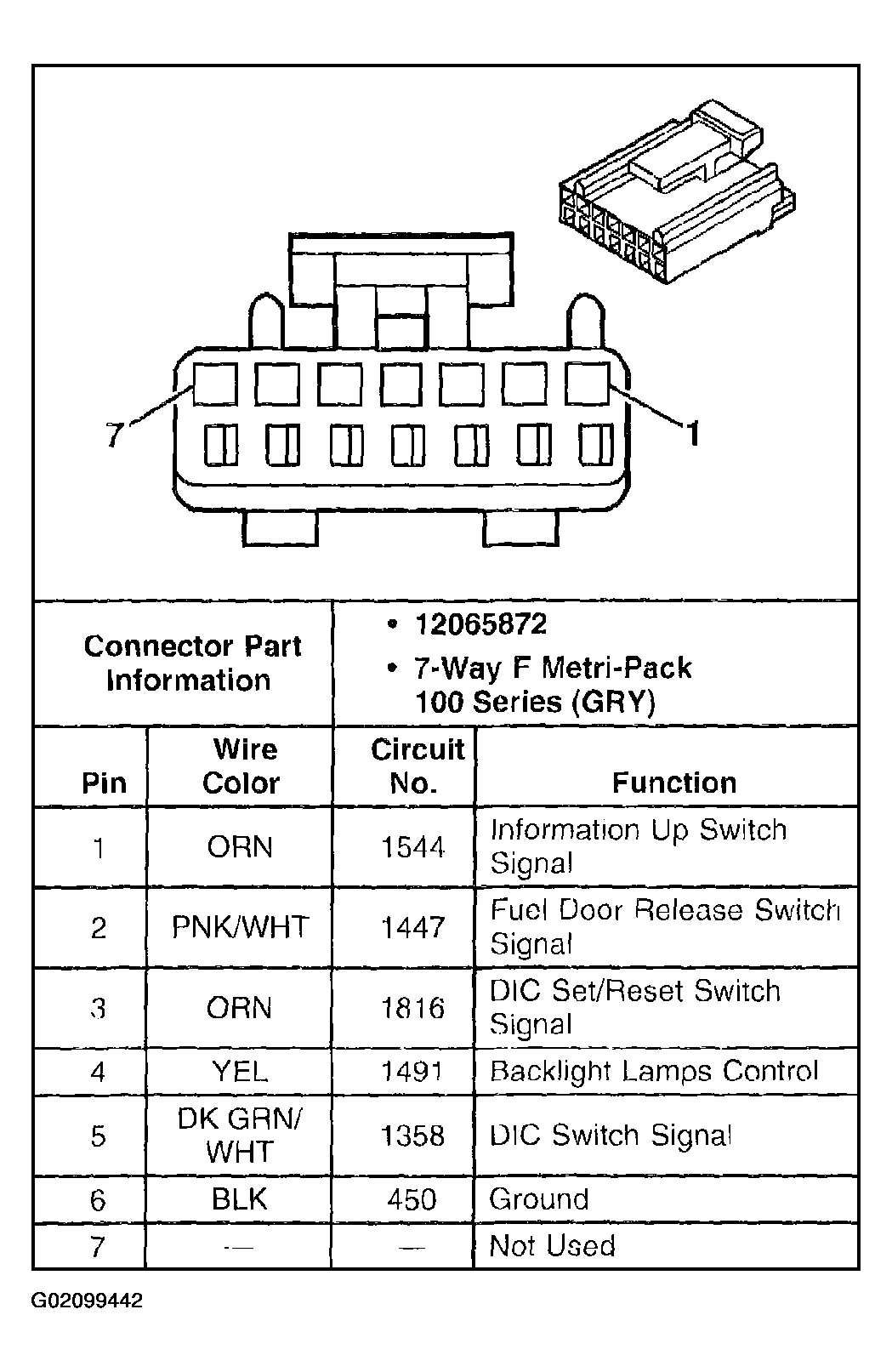

Fig 1: Driver Information Center Switch - Right

G02099442

Courtesy of GENERAL MOTORS CORP.
