Driver Information Center Switch Connector End View - Left

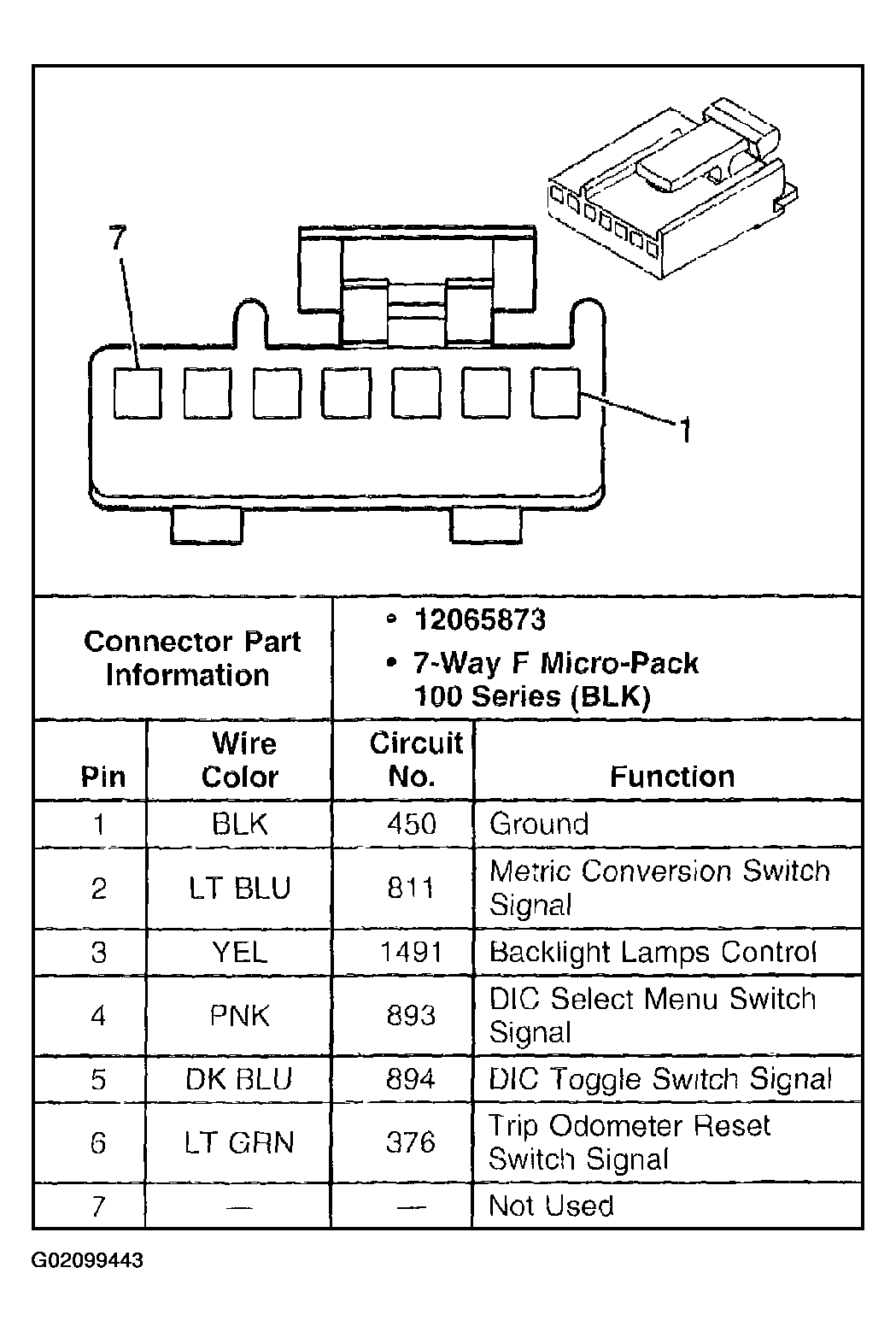

Fig 1: Driver Information Center Switch - Left

G02099443

Courtesy of GENERAL MOTORS CORP.
