Door Lock Relay Connector End View

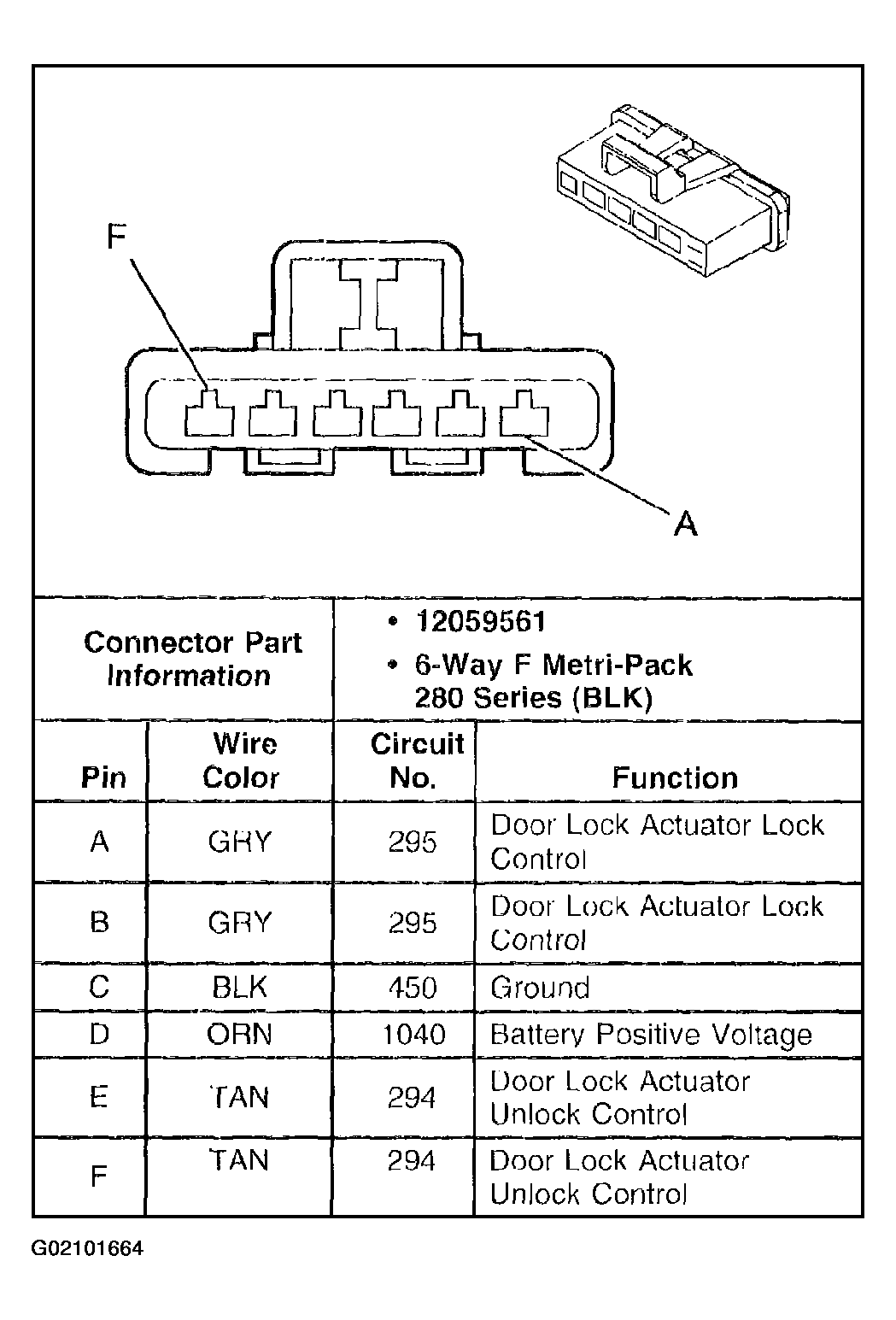

Fig 1: Door Lock Relay (w/B9Q)

G02101664

Courtesy of GENERAL MOTORS CORP.
