A/C Compressor Clutch Connector End View

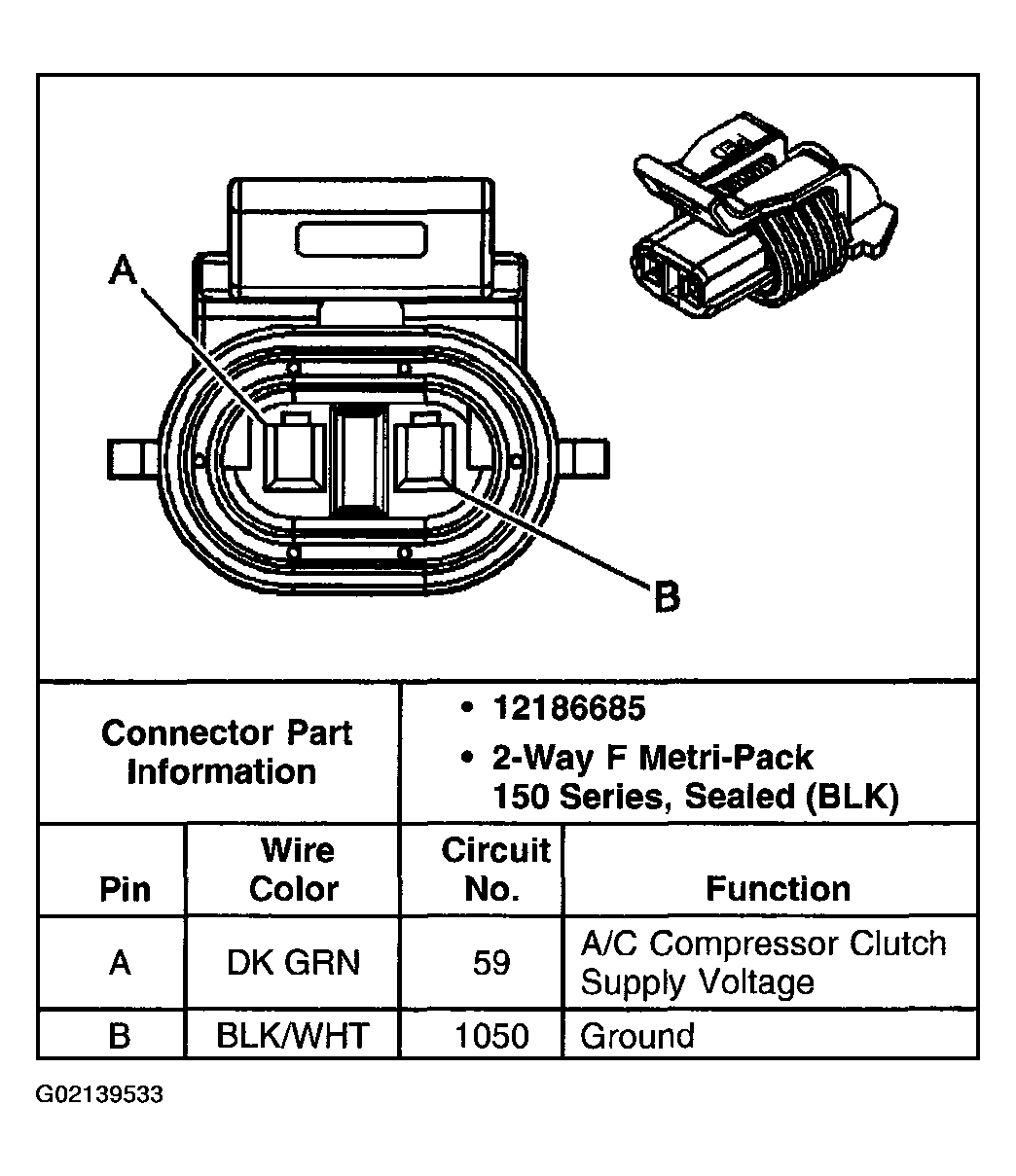

Fig 1: A/C Compressor Clutch

G02139533

Courtesy of GENERAL MOTORS CORP.

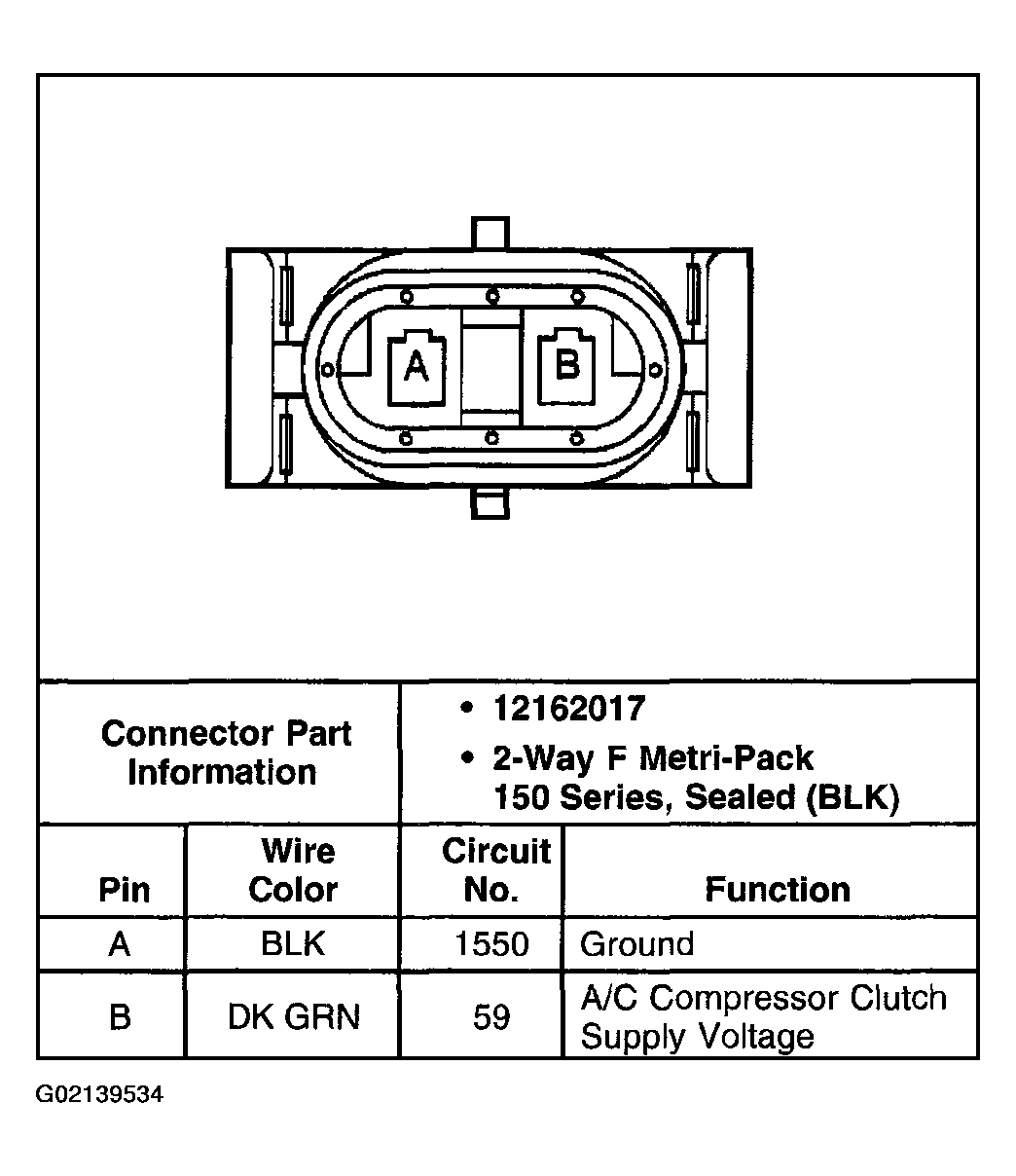

Fig 1: A/C Compressor Clutch (V4U)

G02139534

Courtesy of GENERAL MOTORS CORP.
