Power Window Schematics

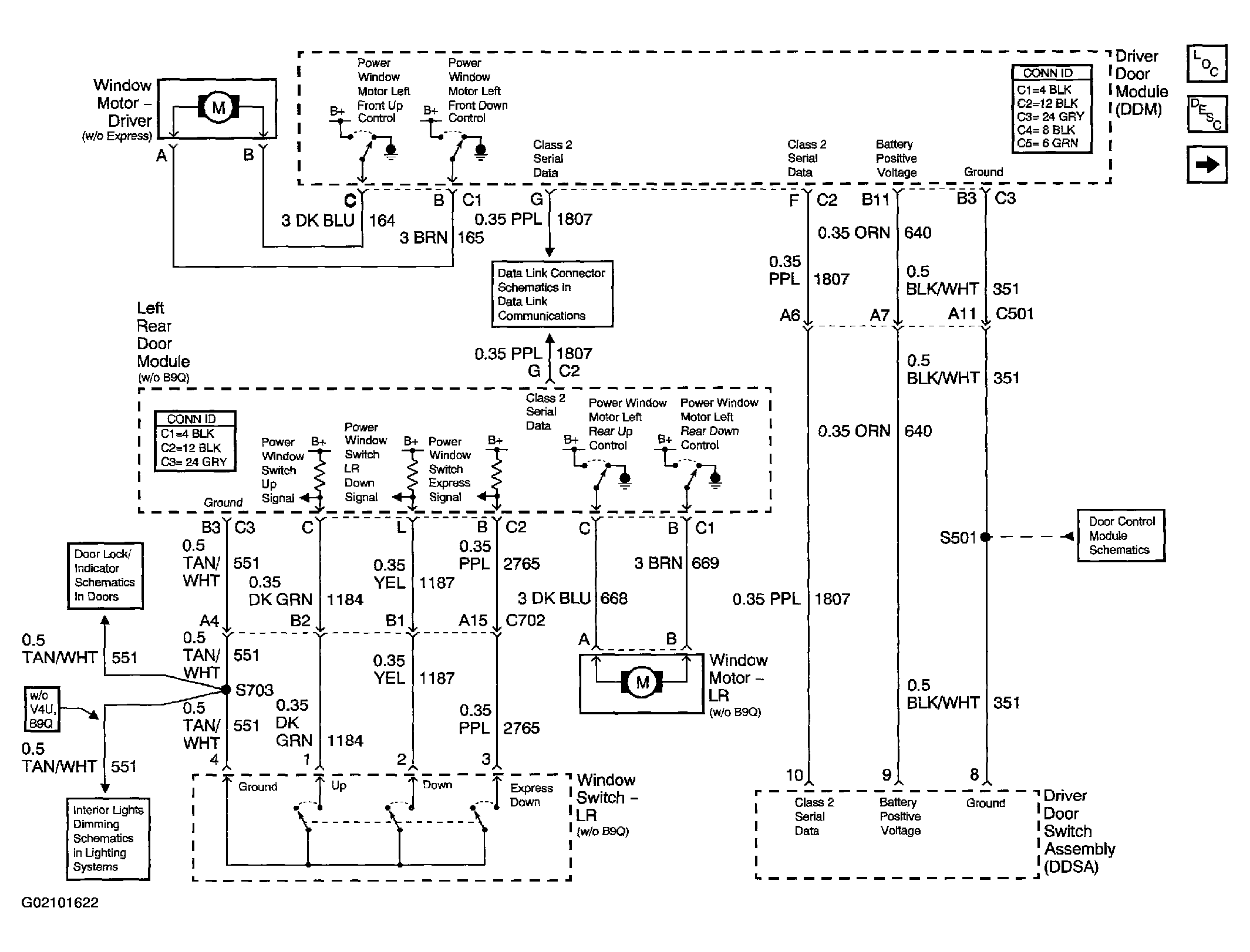

Fig 1: Power Window Schematics (Left Power Windows) Diagram
Courtesy of GENERAL MOTORS CORP.

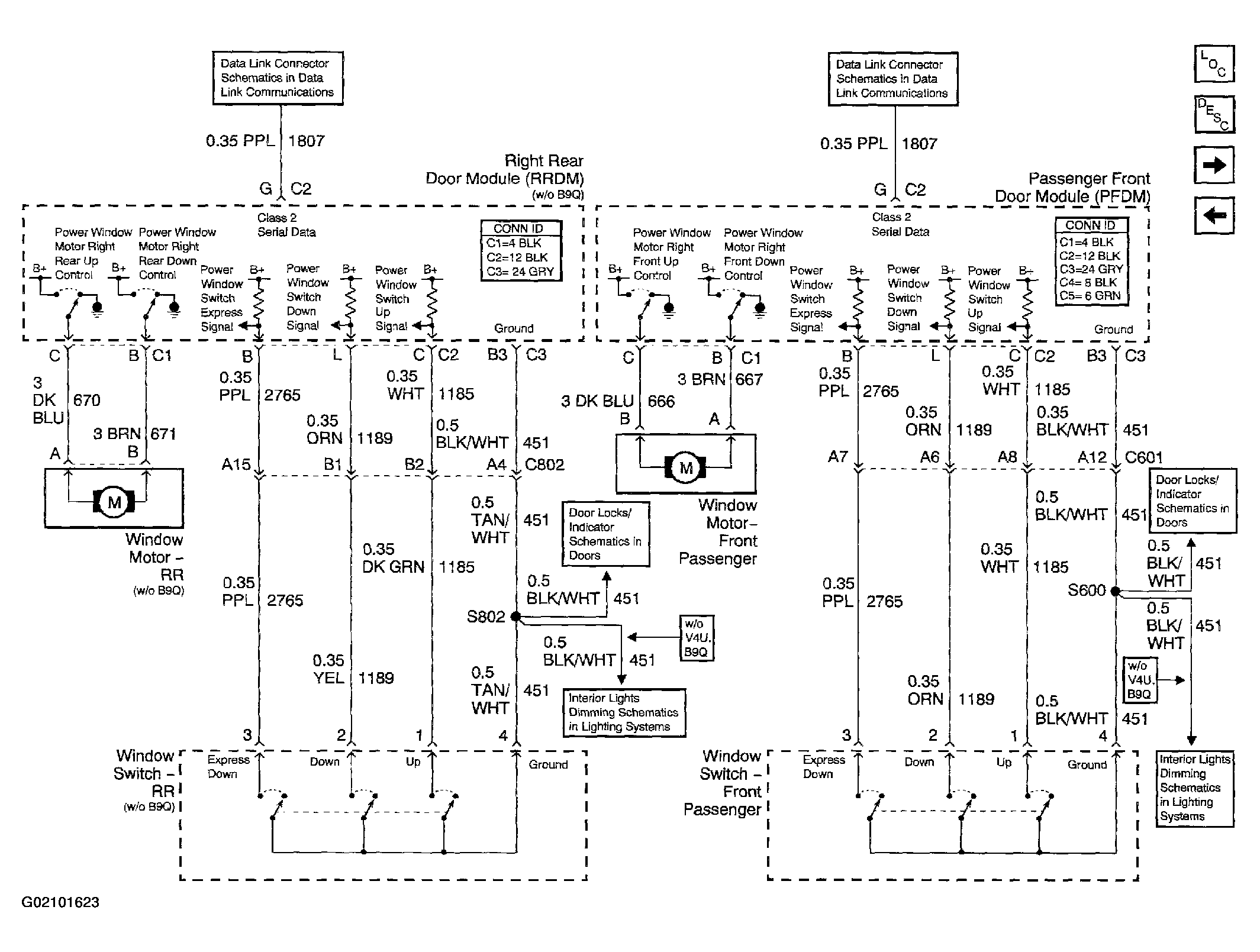

Fig 2: Power Window Schematics (Right Power Windows) Diagram
Courtesy of GENERAL MOTORS CORP.

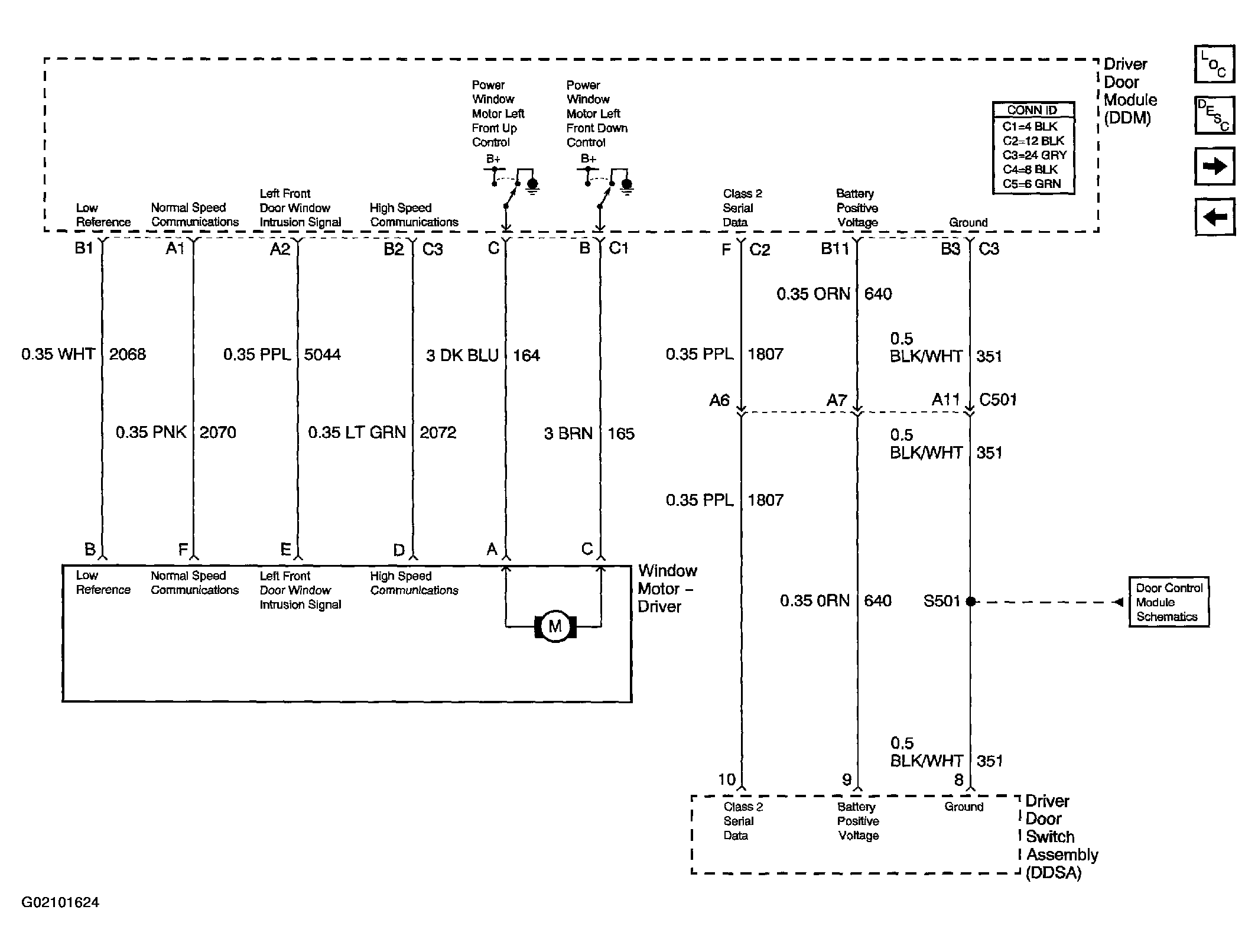

Fig 3: Power Window Schematics (Driver Power Window w/Express) Diagram
Courtesy of GENERAL MOTORS CORP.

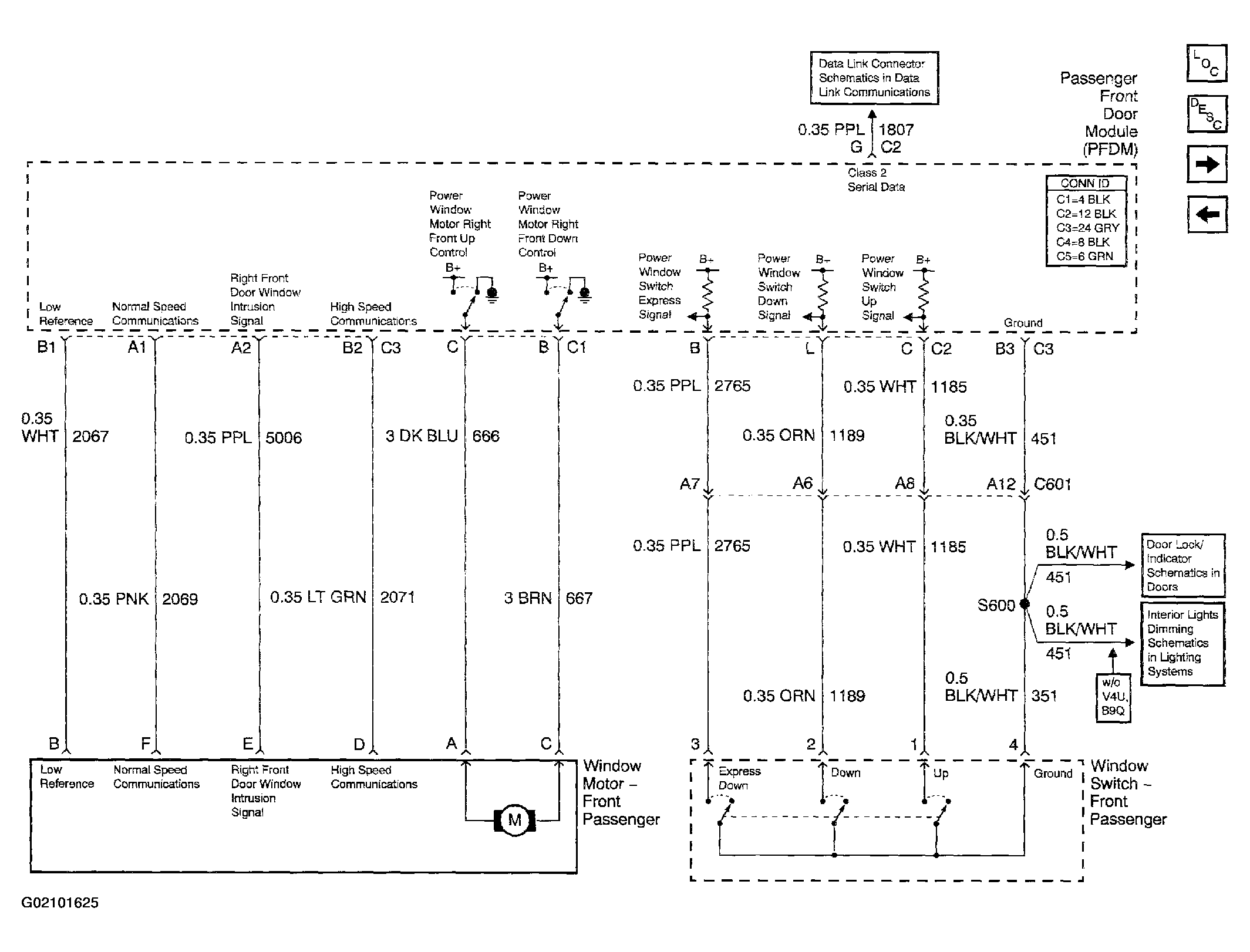

Fig 4: Power Window Schematics (Passenger Power Window w/Express) Diagram
Courtesy of GENERAL MOTORS CORP.

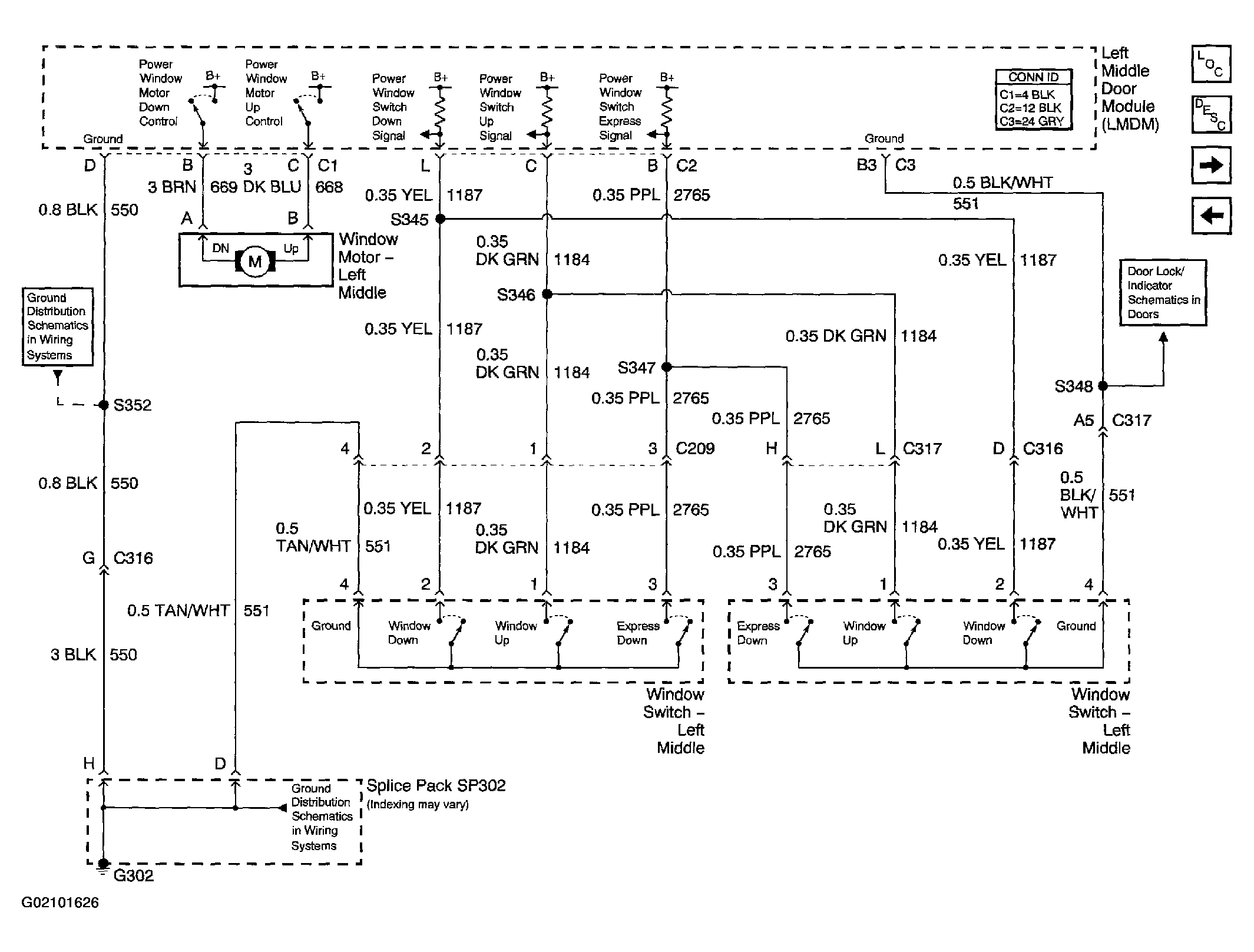

Fig 5: Power Window Schematics (Left Middle Door Power Window (w/V4U)) Diagram
Courtesy of GENERAL MOTORS CORP.

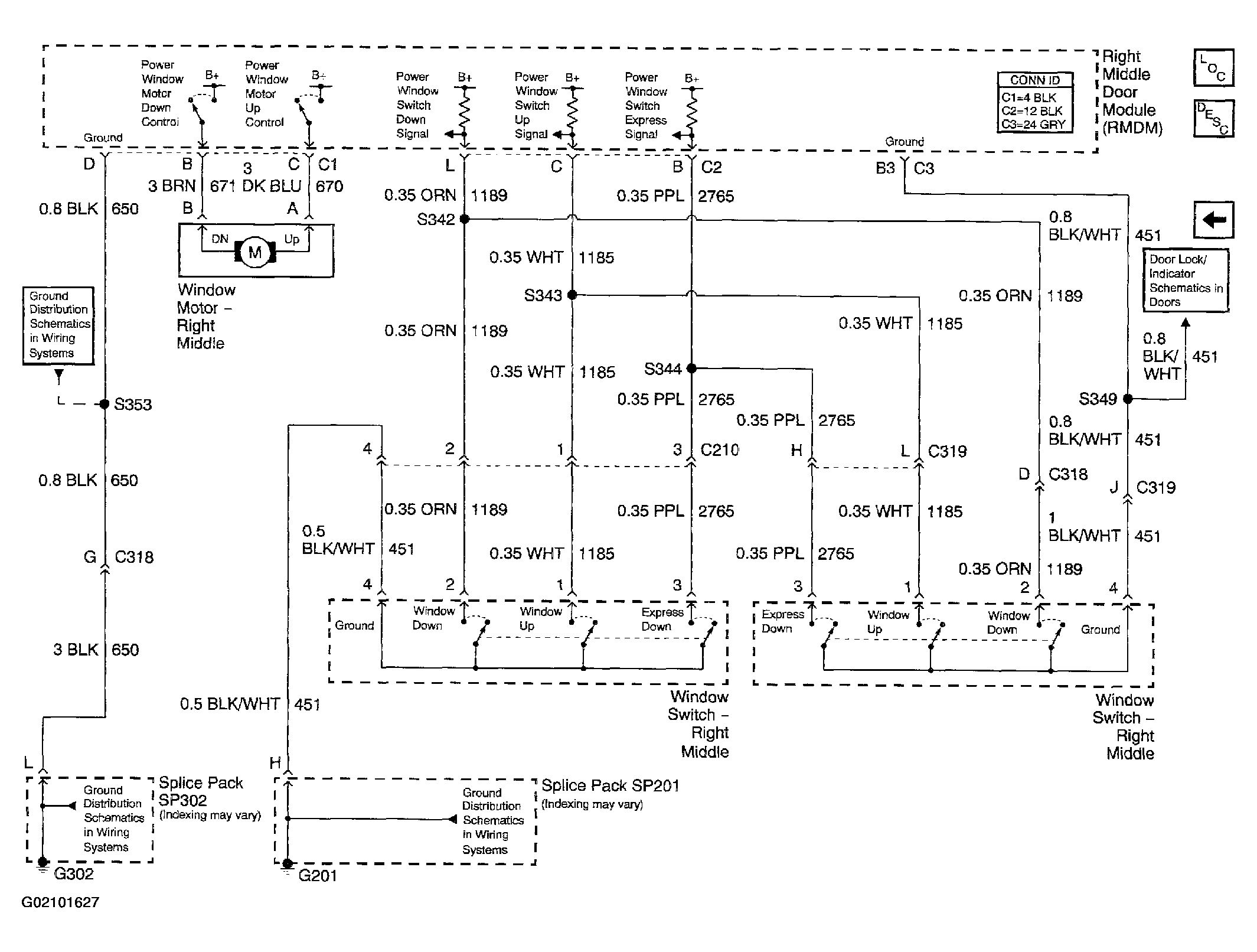

Fig 6: Power Window Schematics (Right Middle Door Power Window (w/V4U)) Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
