Home >> Cadillac >> 2003 >> DeVille Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Diagnostic Information and Procedures >> Scan Tool Output Controls

Scan Tool Output Controls

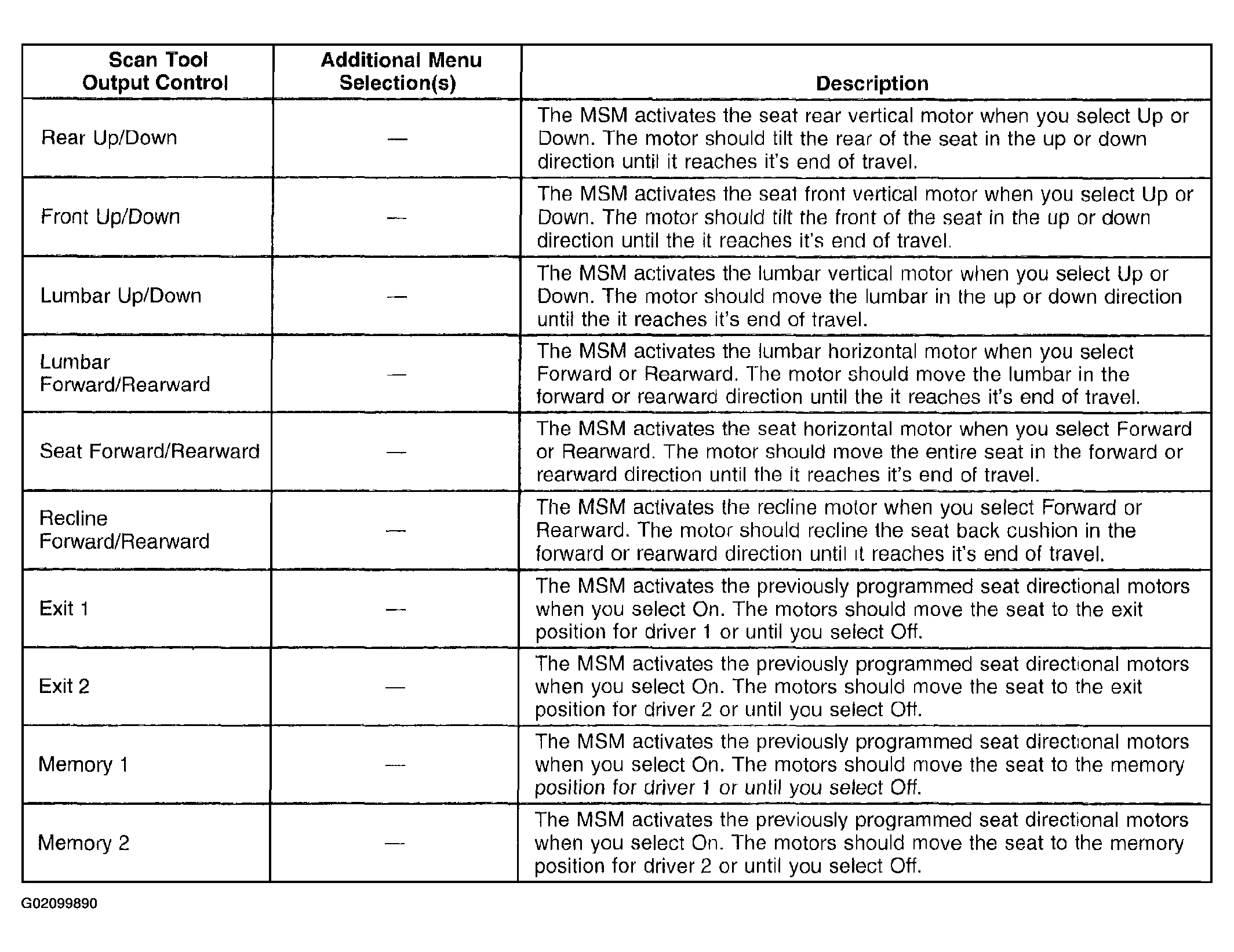

Fig 1: Memory Seat Module (MSM) Specifications (1 Of 2)

G02099890

Courtesy of GENERAL MOTORS CORP.
