Vehicle Speed Sensor (VSS) Connector End View

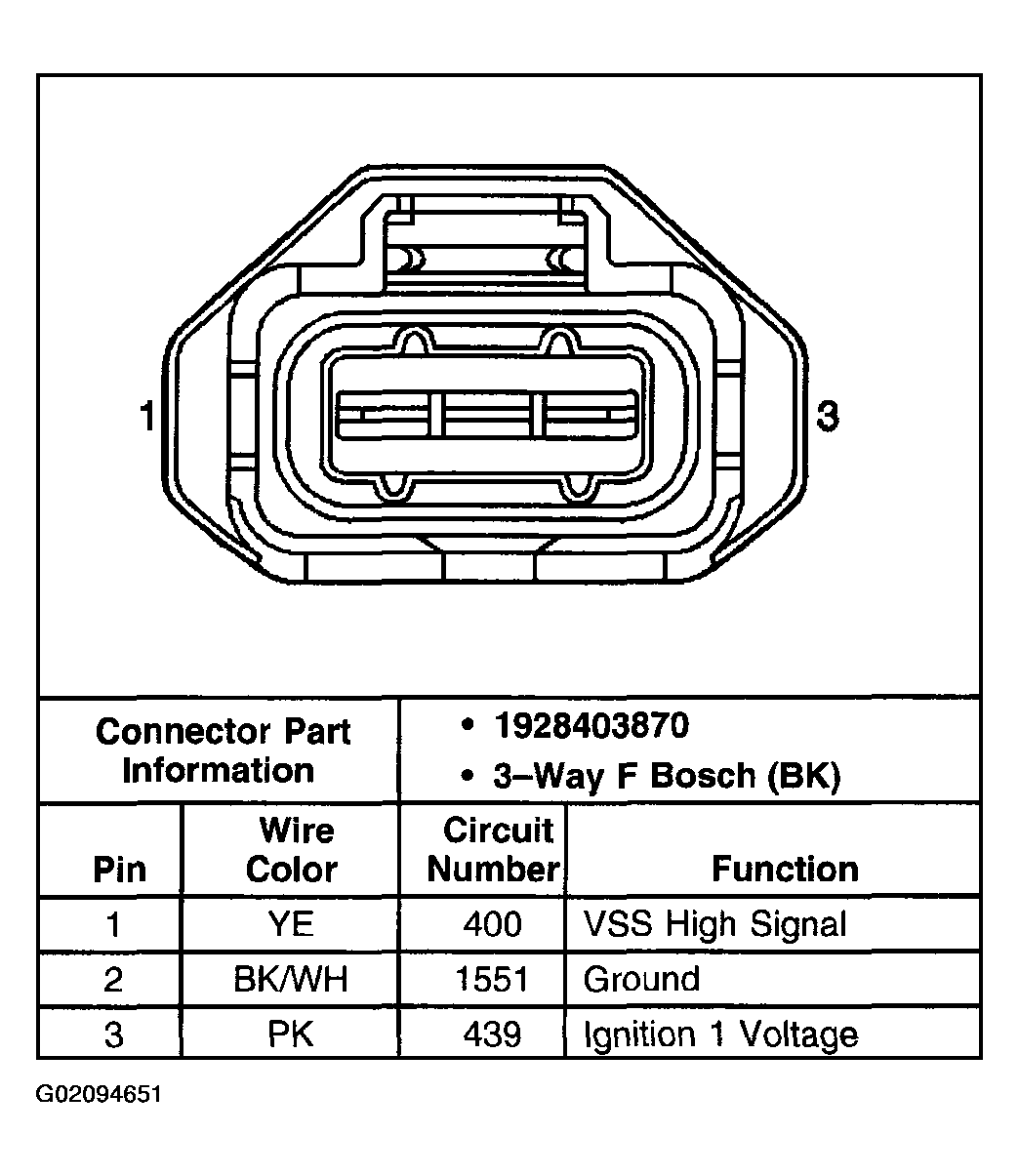

Fig 1: Vehicle Speed Sensor (VSS)

G02094651

Courtesy of GENERAL MOTORS CORP.
