Rear Compartment Release Switch Connector End View

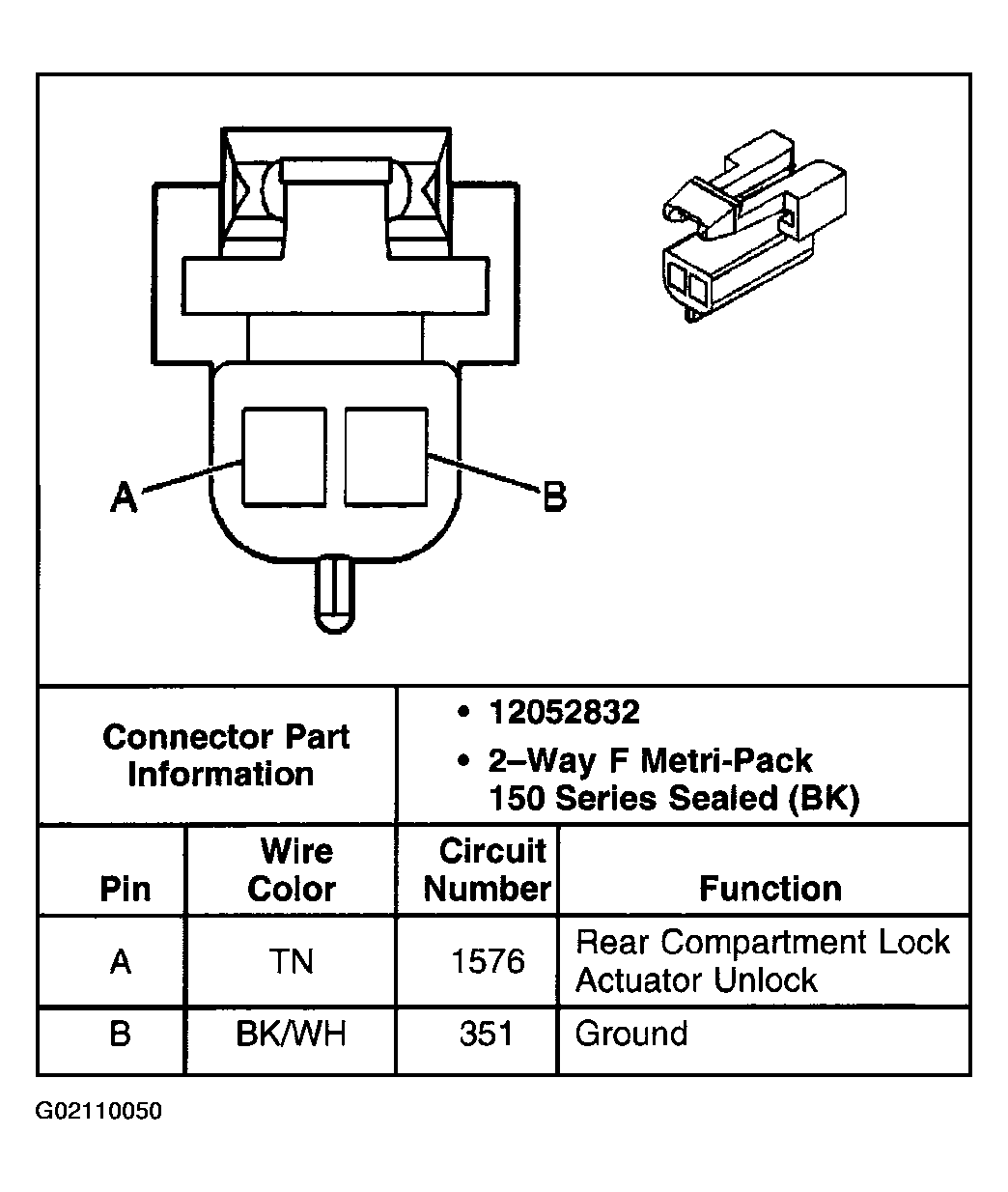

Fig 1: Rear Compartment Release Switch

G02110050

Courtesy of GENERAL MOTORS CORP.
