Rear Compartment Lid Release Connector End View

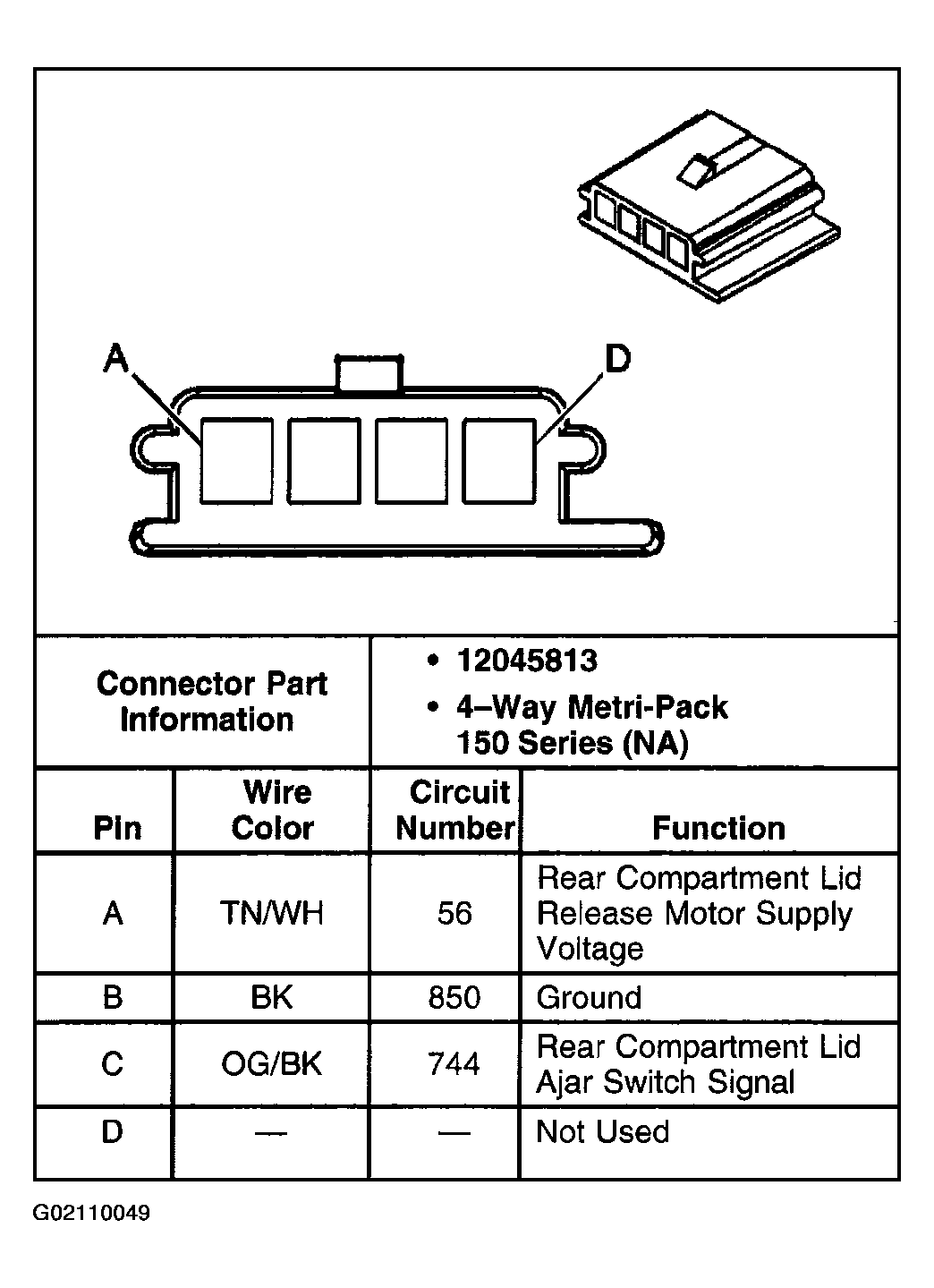

Fig 1: Rear Compartment Lid Release

G02110049

Courtesy of GENERAL MOTORS CORP.
