Ignition Lock Cylinder Control Actuator Connector End View

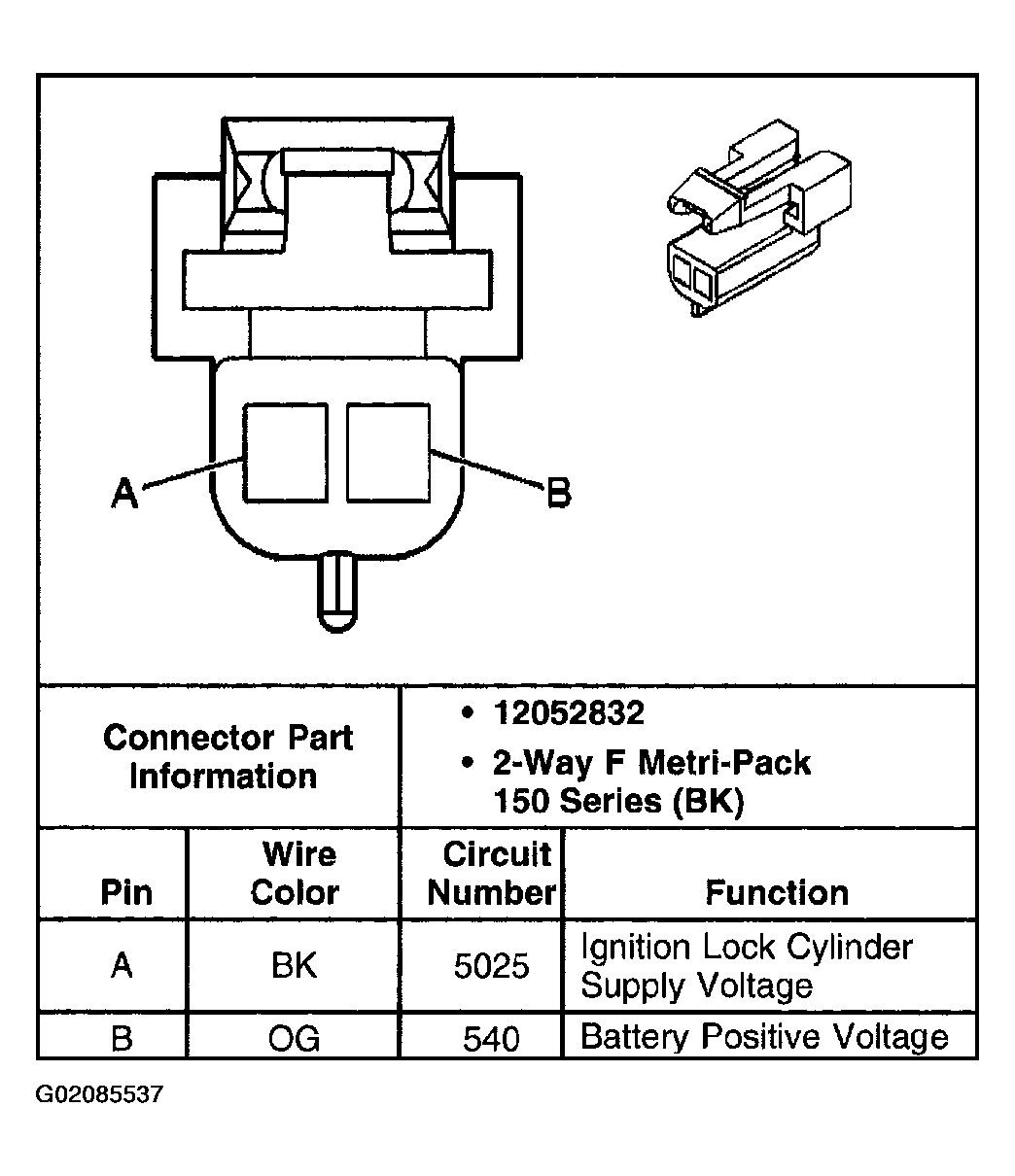

Fig 1: Ignition Lock Cylinder Control Actuator

G02085537

Courtesy of GENERAL MOTORS CORP.
