Diagnostic Procedure

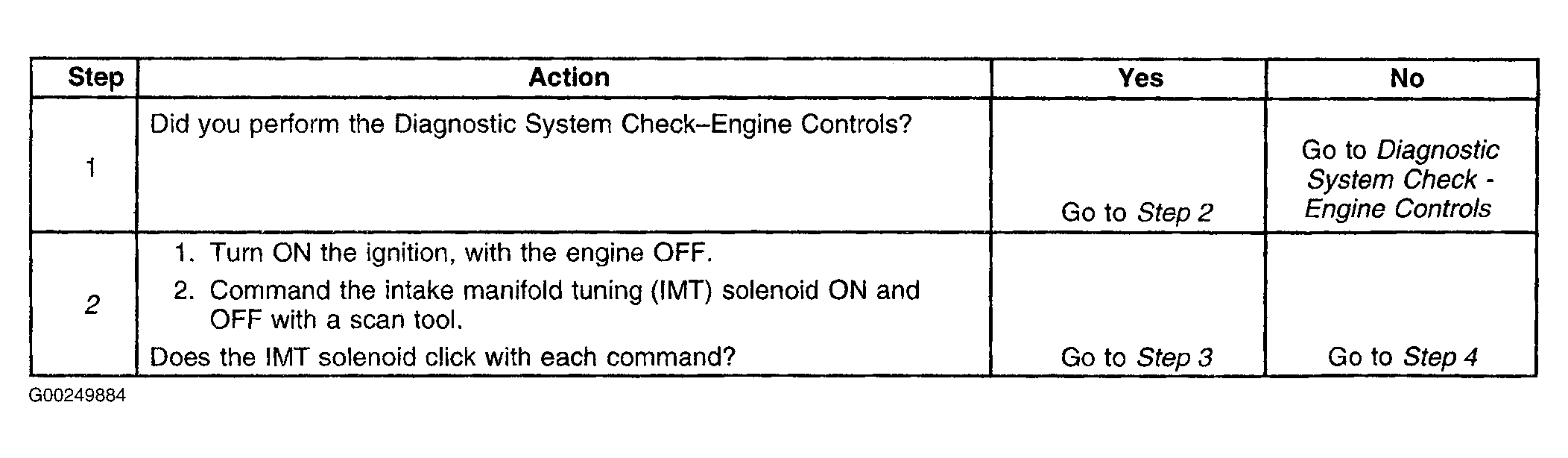

Fig 1: DTC P0662: Intake Manifold Tuning Valve Control Circuit High (Steps 1 & 2)
G00249888Courtesy of GENERAL MOTORS CORP.

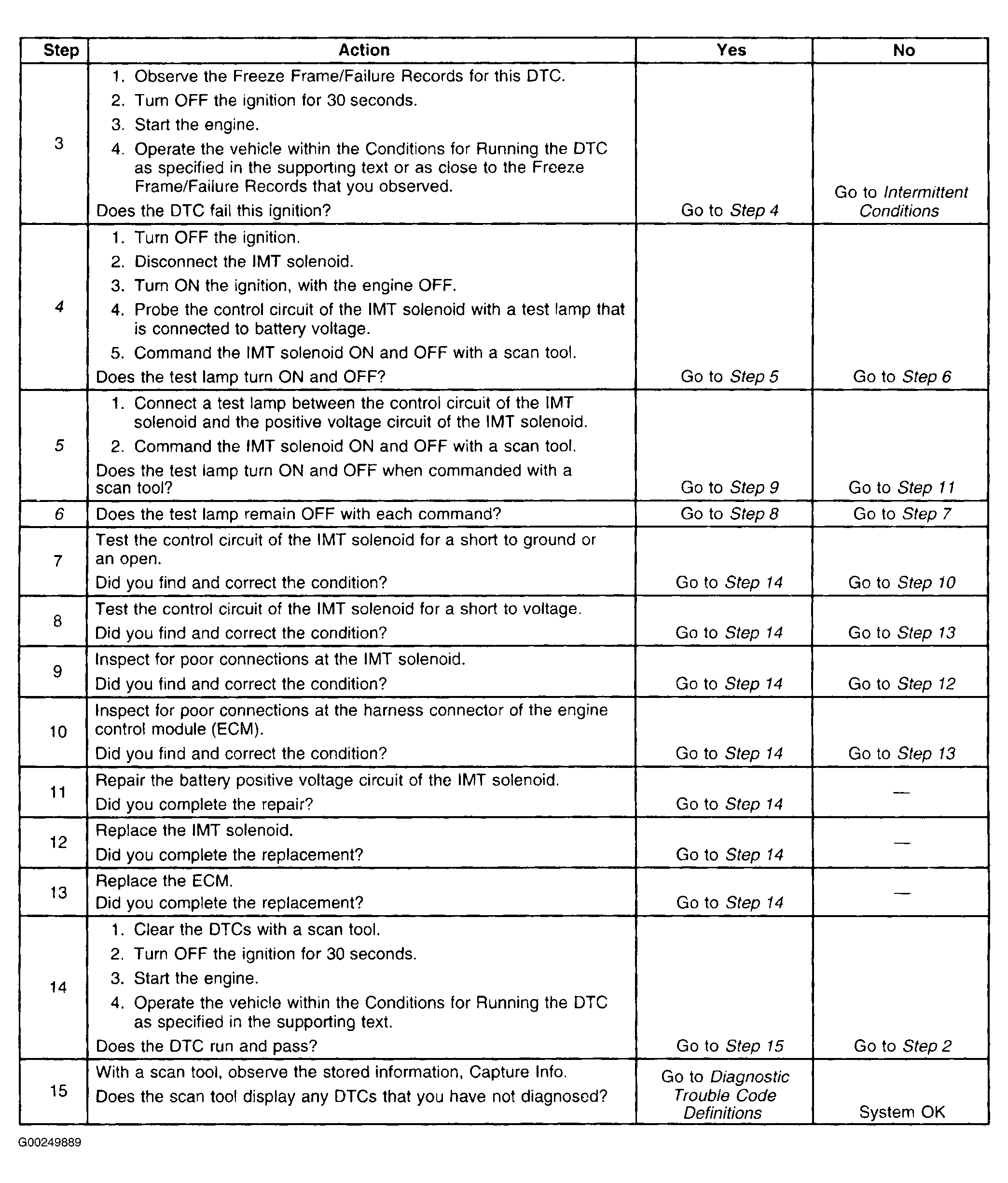

Fig 2: DTC P0662: Intake Manifold Tuning Valve Control Circuit High (Steps 3-15)
G00249889Courtesy of GENERAL MOTORS CORP.
