Diagnostic Procedures

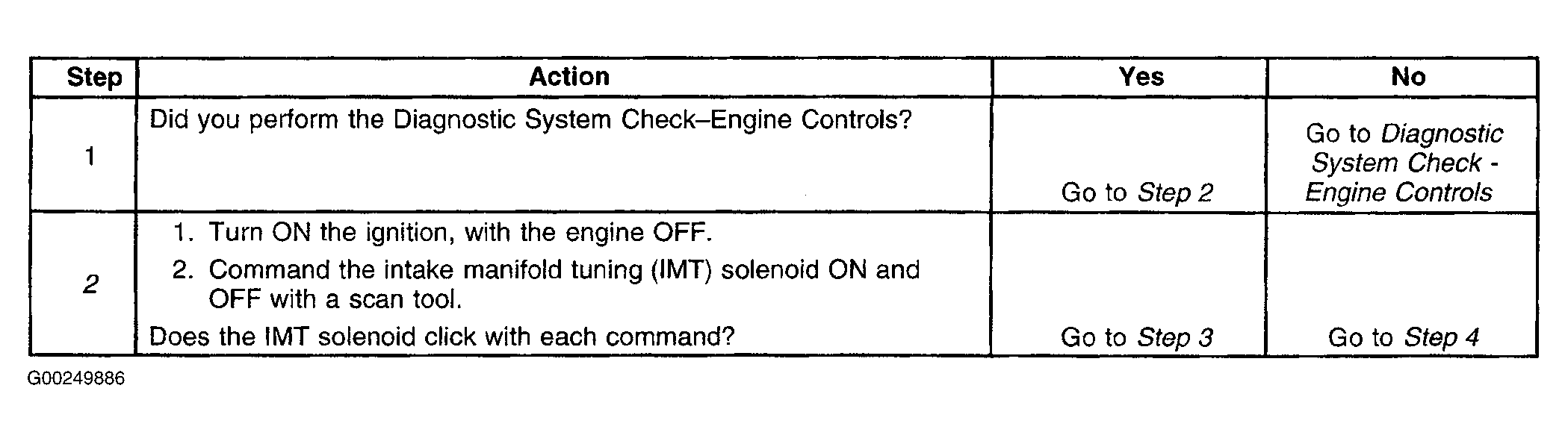

Fig 1: DTC P0661: Intake Manifold Tuning Valve Control Circuit Low (Steps 1 & 2)
G00249886Courtesy of GENERAL MOTORS CORP.

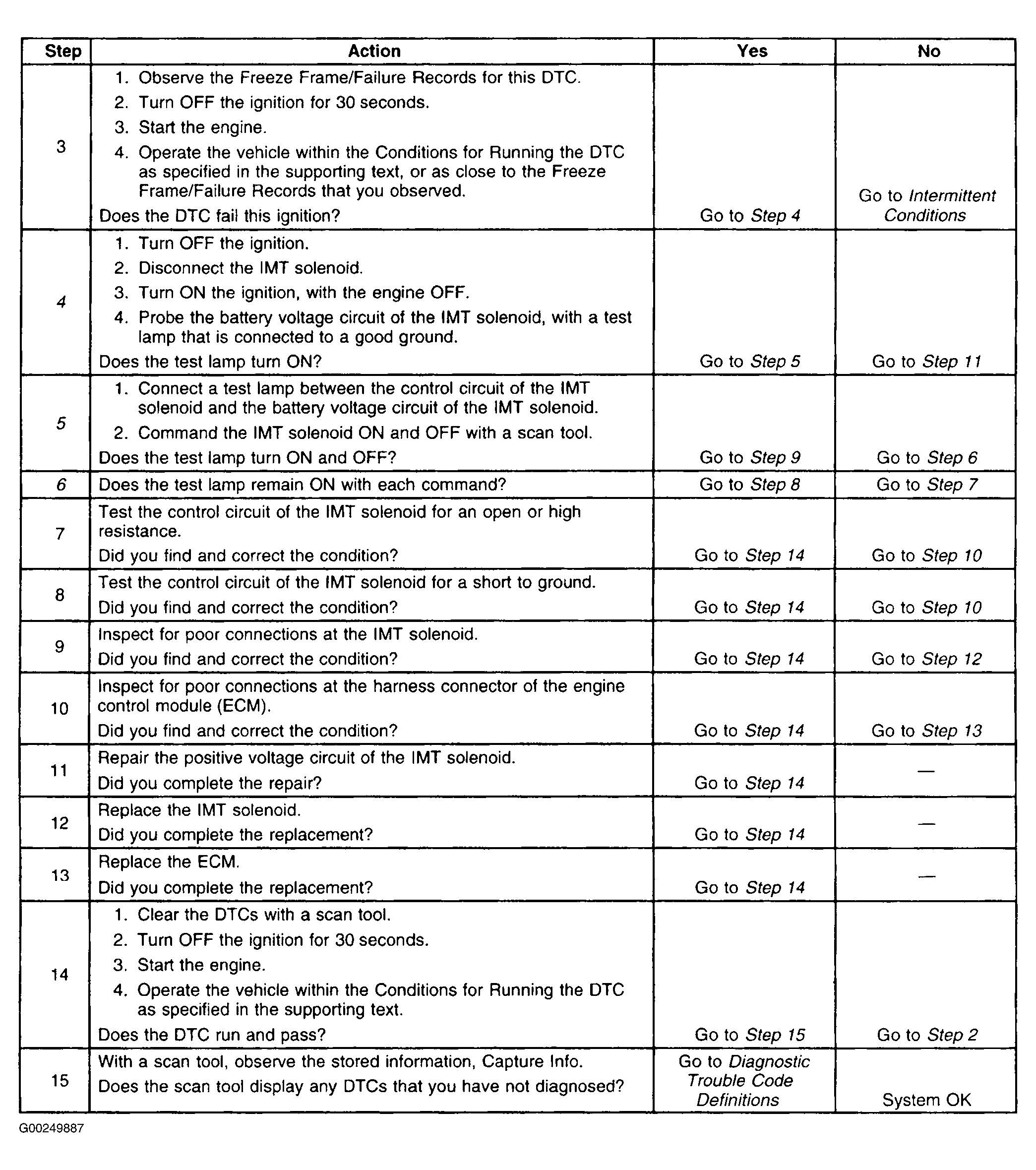

Fig 2: DTC P0661: Intake Manifold Tuning Valve Control Circuit Low (Steps 3-15)
G00249887Courtesy of GENERAL MOTORS CORP.
