Diagnostic Procedure

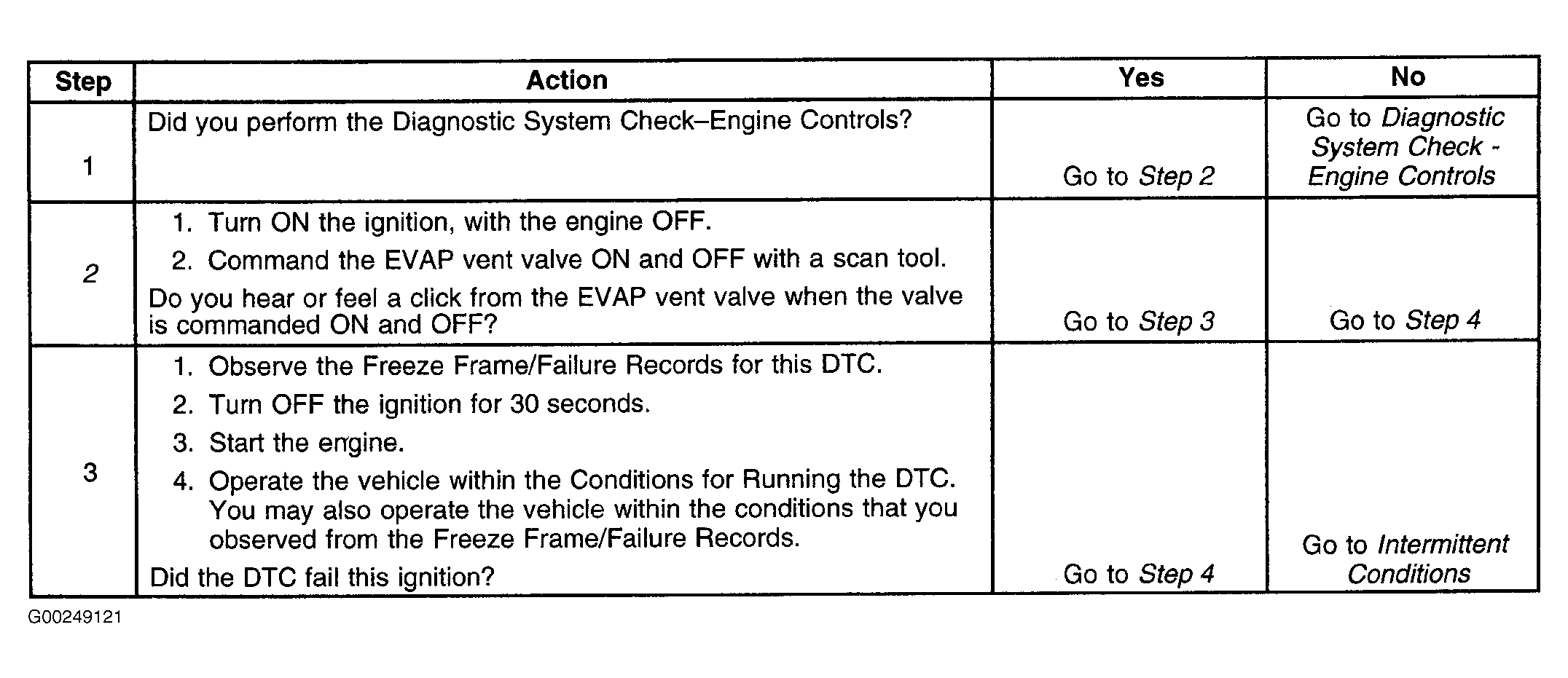

Fig 1: DTC P0448: EVAP Vent Valve Control Circuit Shorted (Steps 1-3)
G00249121Courtesy of GENERAL MOTORS CORP.

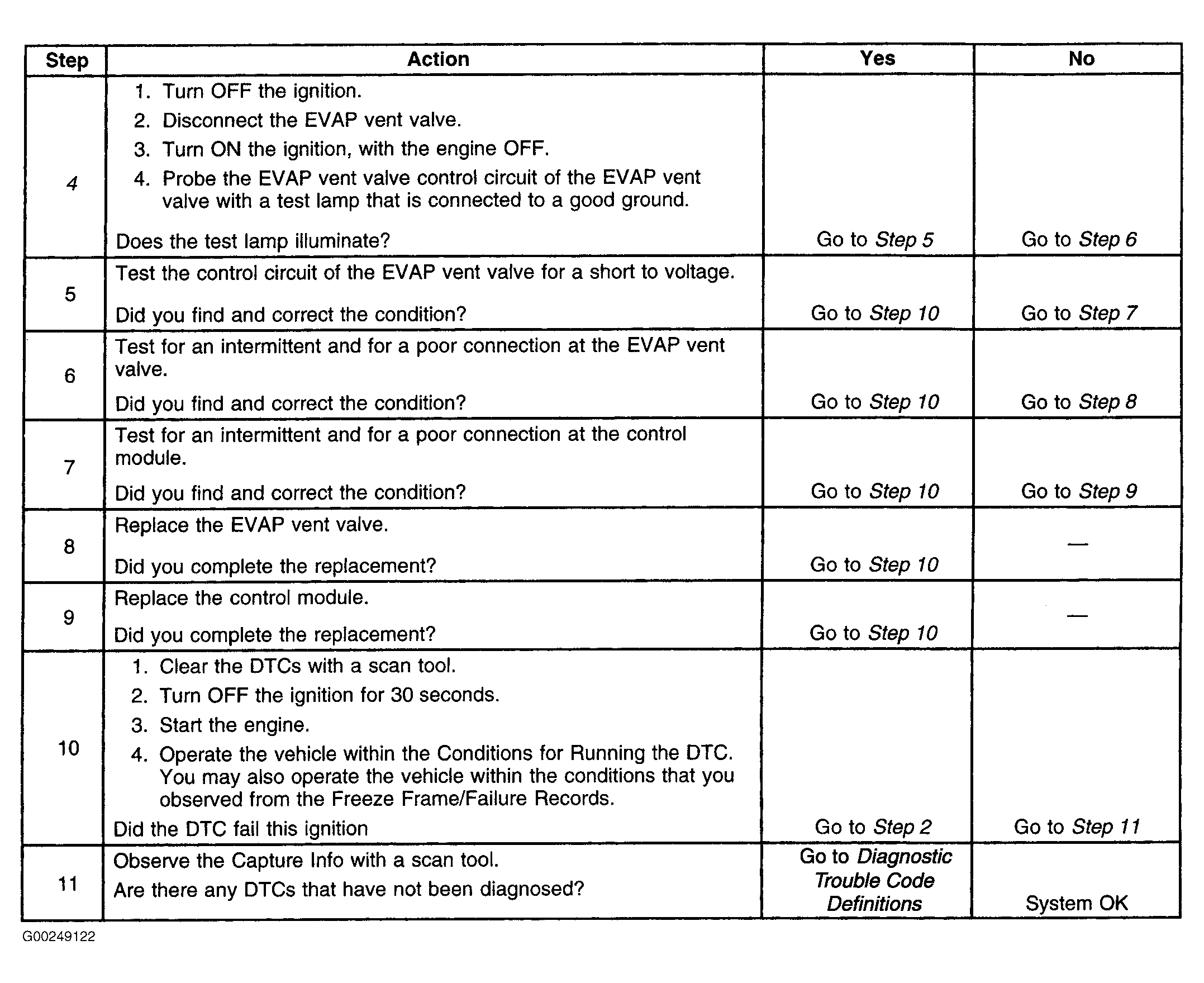

Fig 2: DTC P0448: EVAP Vent Valve Control Circuit Shorted (Steps 4-11)
G00249122Courtesy of GENERAL MOTORS CORP.
