Diagnostic Procedure

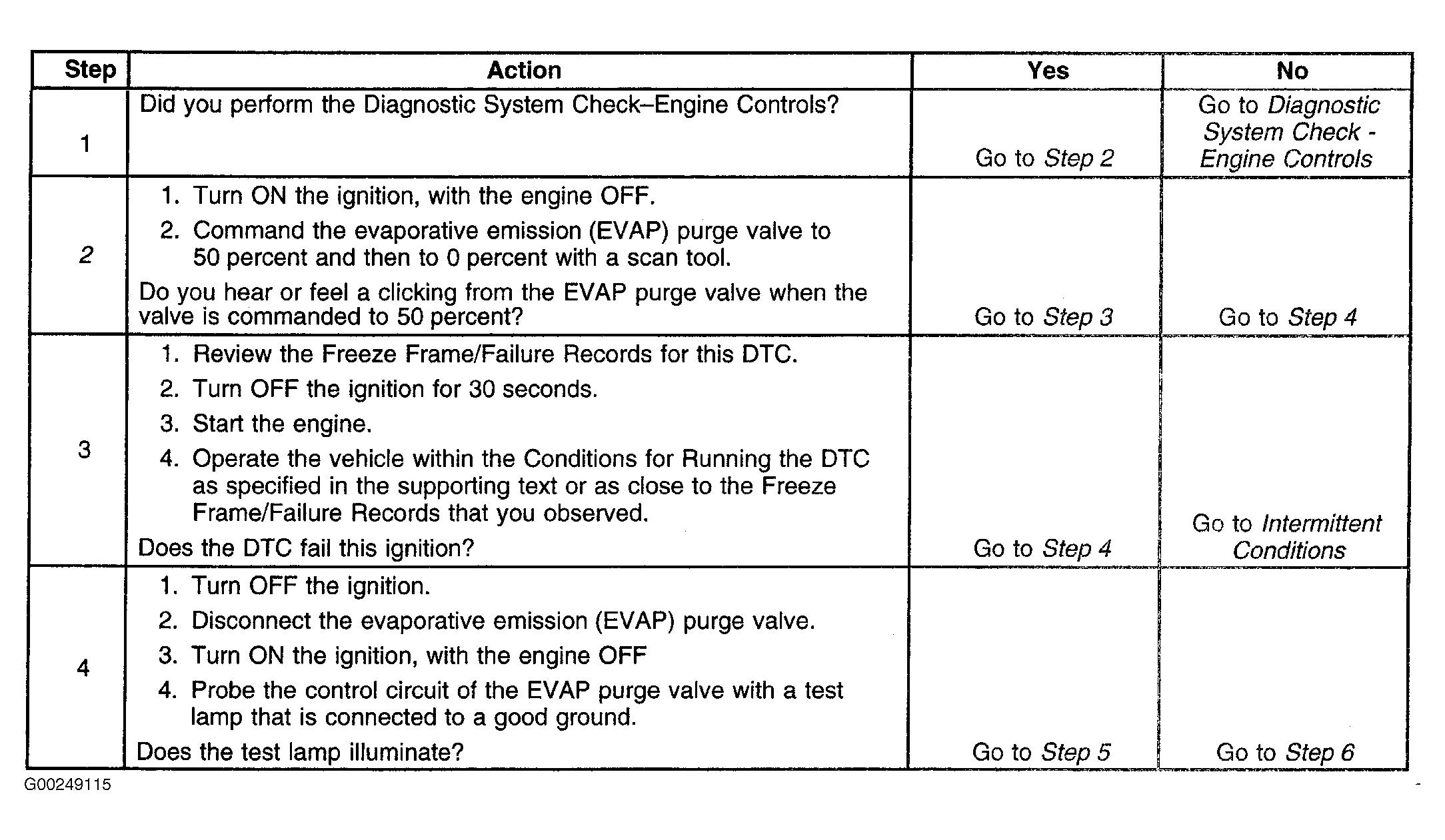

Fig 1: DTC P0445: EVAP Purge Control Valve Circuit Shorted (Steps 1-4)
G00249115Courtesy of GENERAL MOTORS CORP.

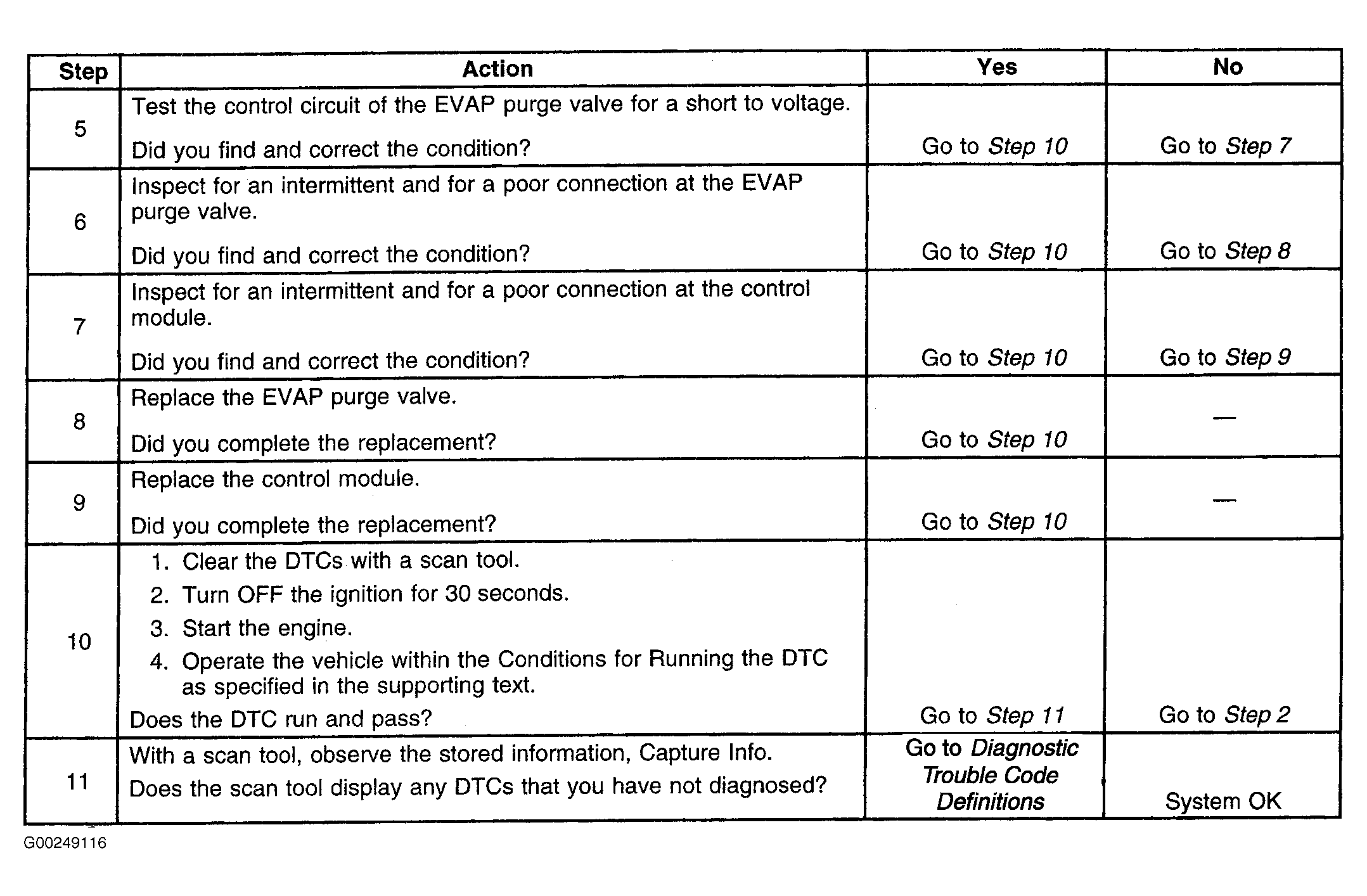

Fig 2: DTC P0455: EVAP Purge Control Valve Circuit Shorted (Steps 5-11)
G00249116Courtesy of GENERAL MOTORS CORP.
