Diagnostic Procedures

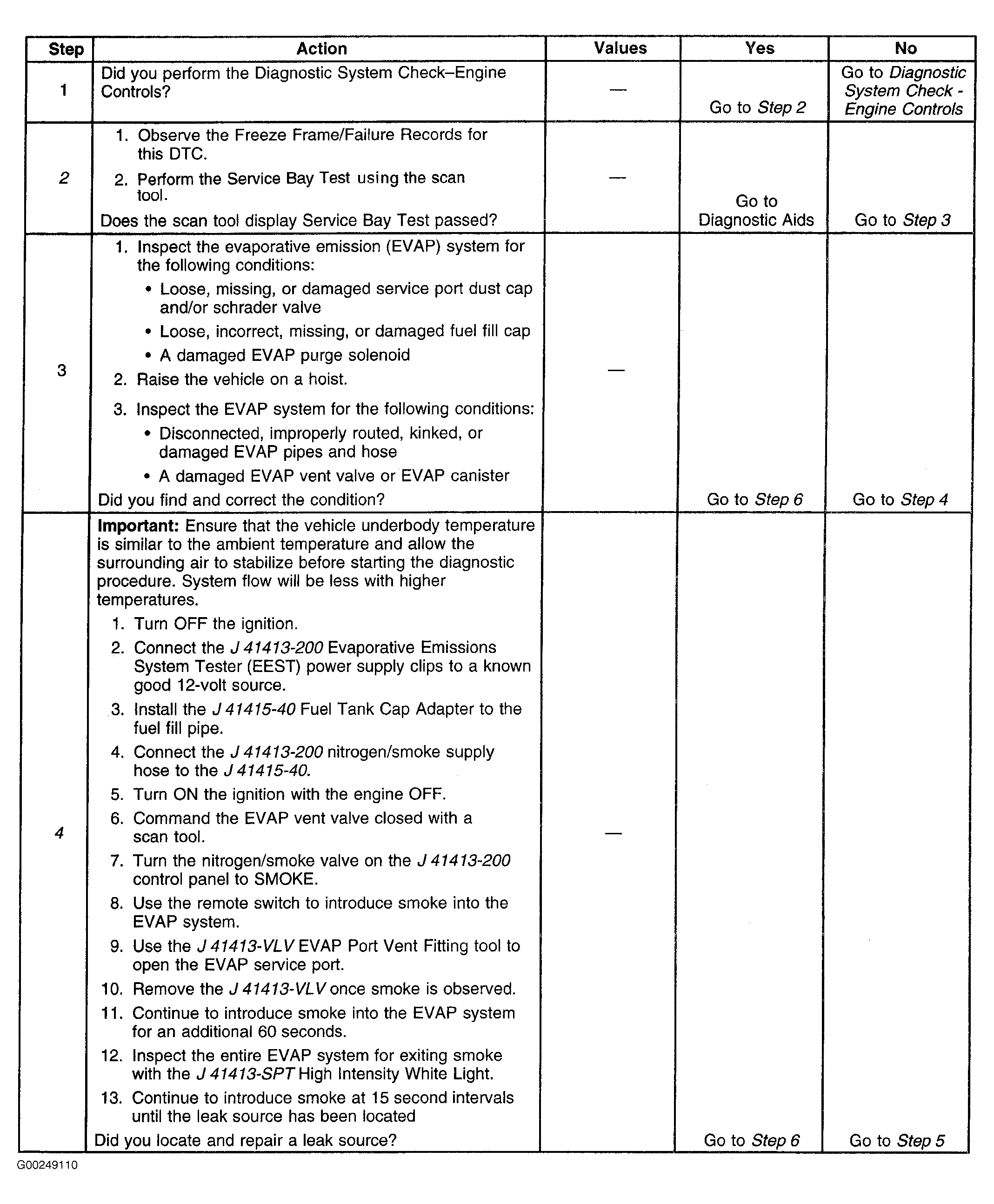

Fig 1: DTC P0442: EVAP System - Small Leak Detected (Steps 1-4)
G00249110Courtesy of GENERAL MOTORS CORP.

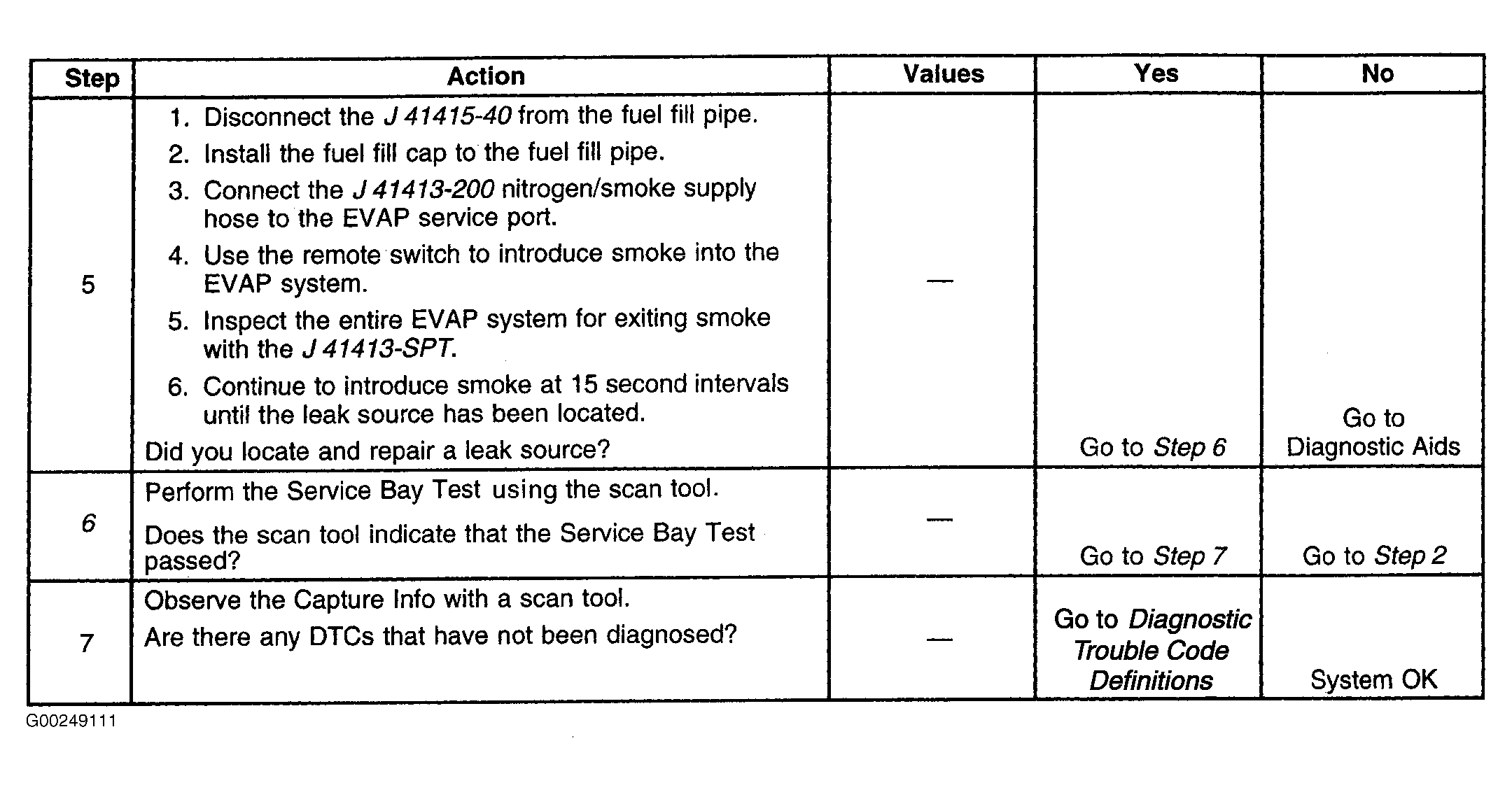

Fig 2: DTC P0442: EVAP System - Small Leak Detected (Steps 5-7)
G00249111Courtesy of GENERAL MOTORS CORP.
