Diagnostic Procedures

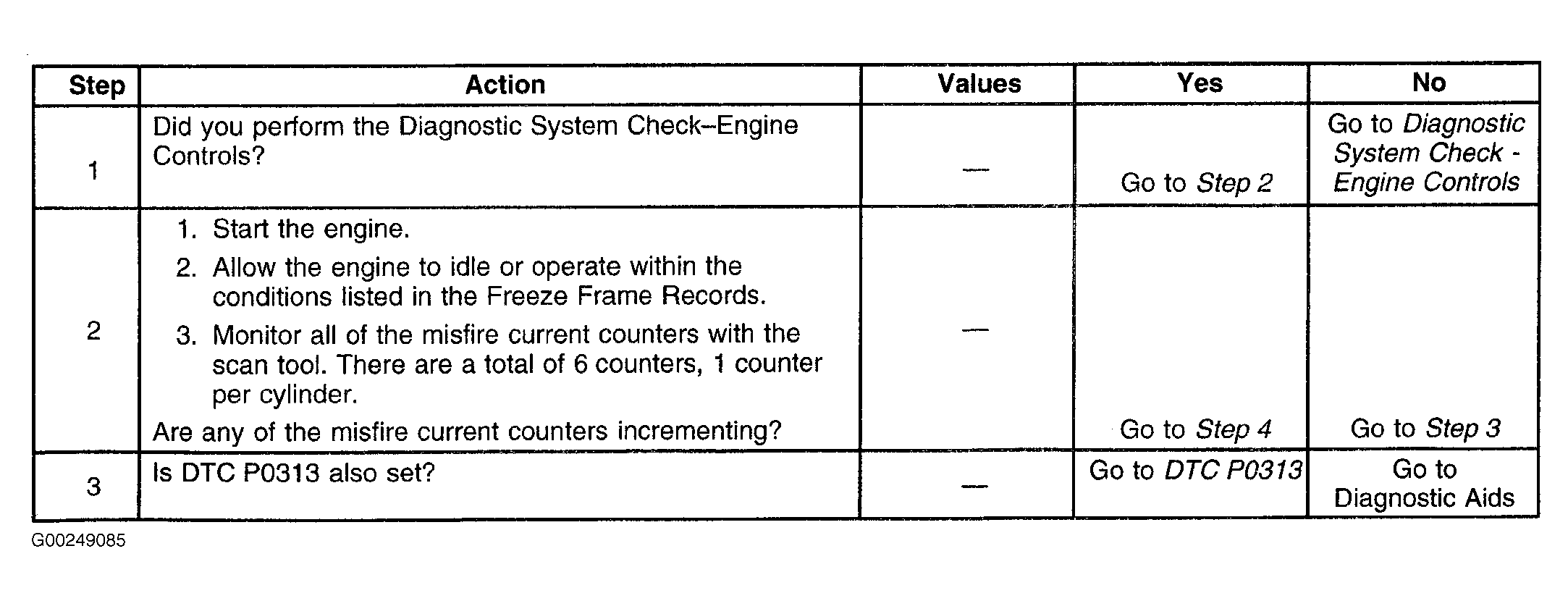

Fig 1: DTC P0300: Engine Misfire Detected (Steps 1-3)

G00249085

Courtesy of GENERAL MOTORS CORP.

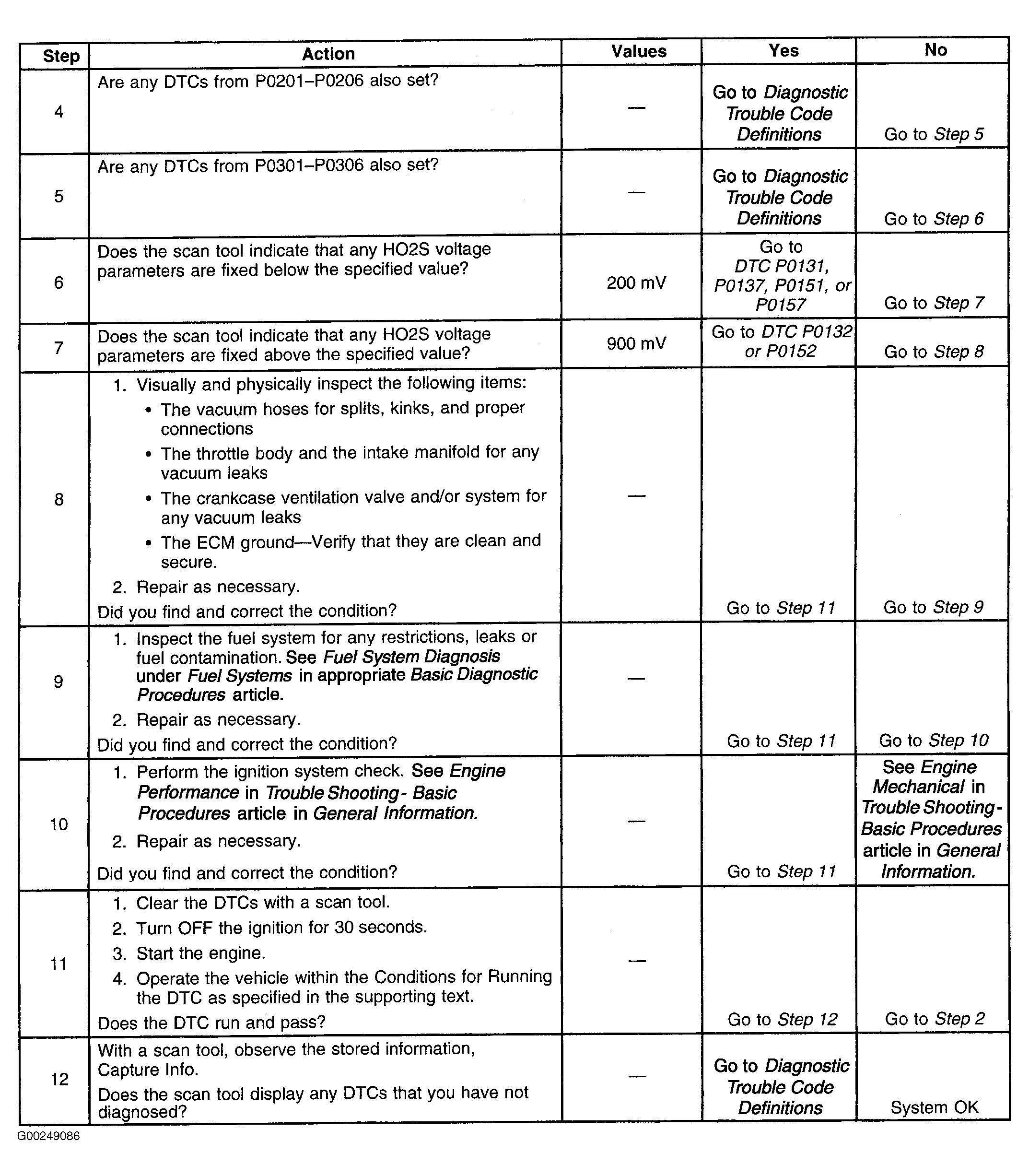

Fig 2: DTC P0300: Engine Misfire Detected (Steps 4-12)

G00249086

Courtesy of GENERAL MOTORS CORP.
