Door Lock/Indicator Schematics

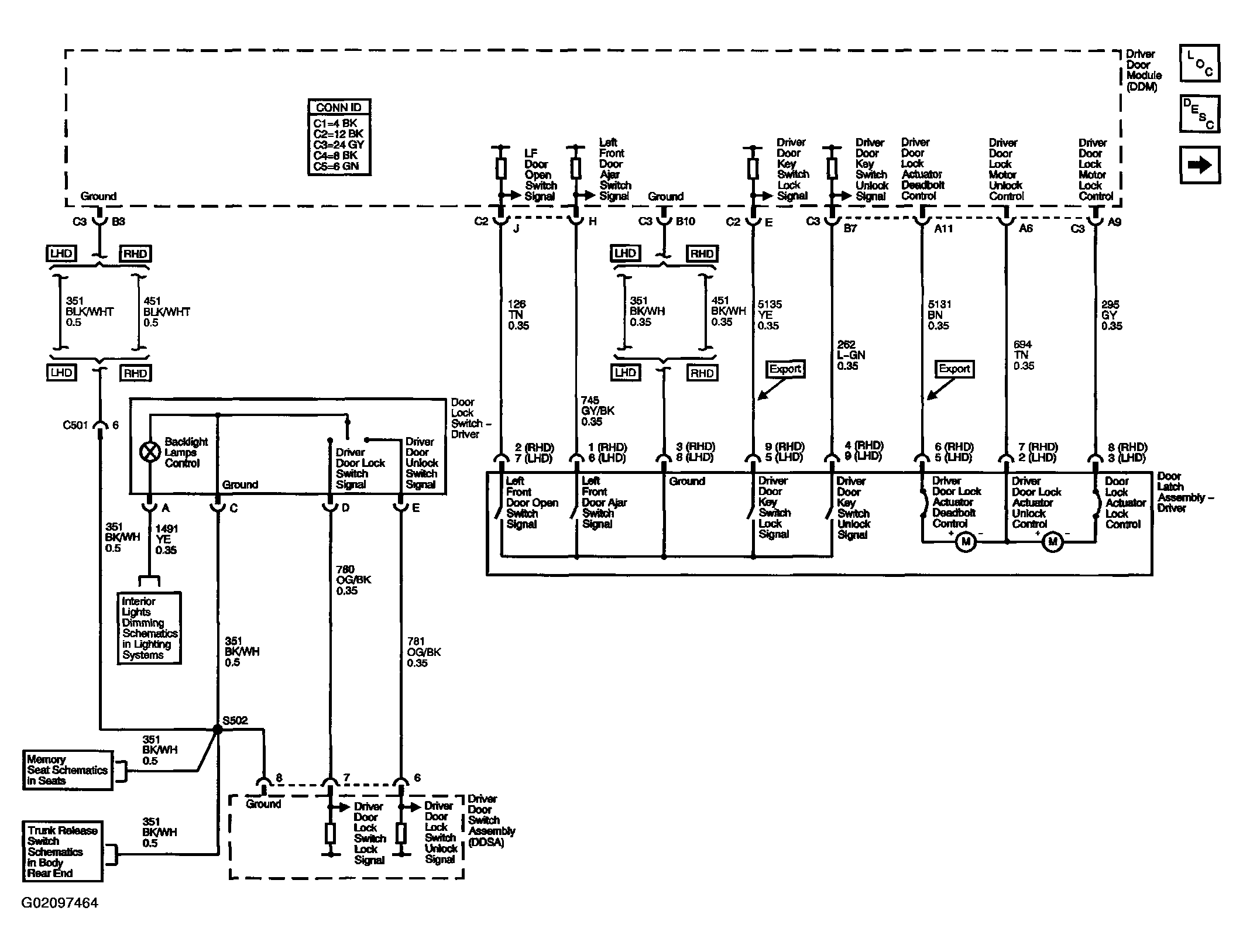

Fig 1: Door Lock/Indicator (Driver Door Module (DDM), Driver Door Switch Assembly (DDSA)) Schematics Diagram
G02097464Courtesy of GENERAL MOTORS CORP.

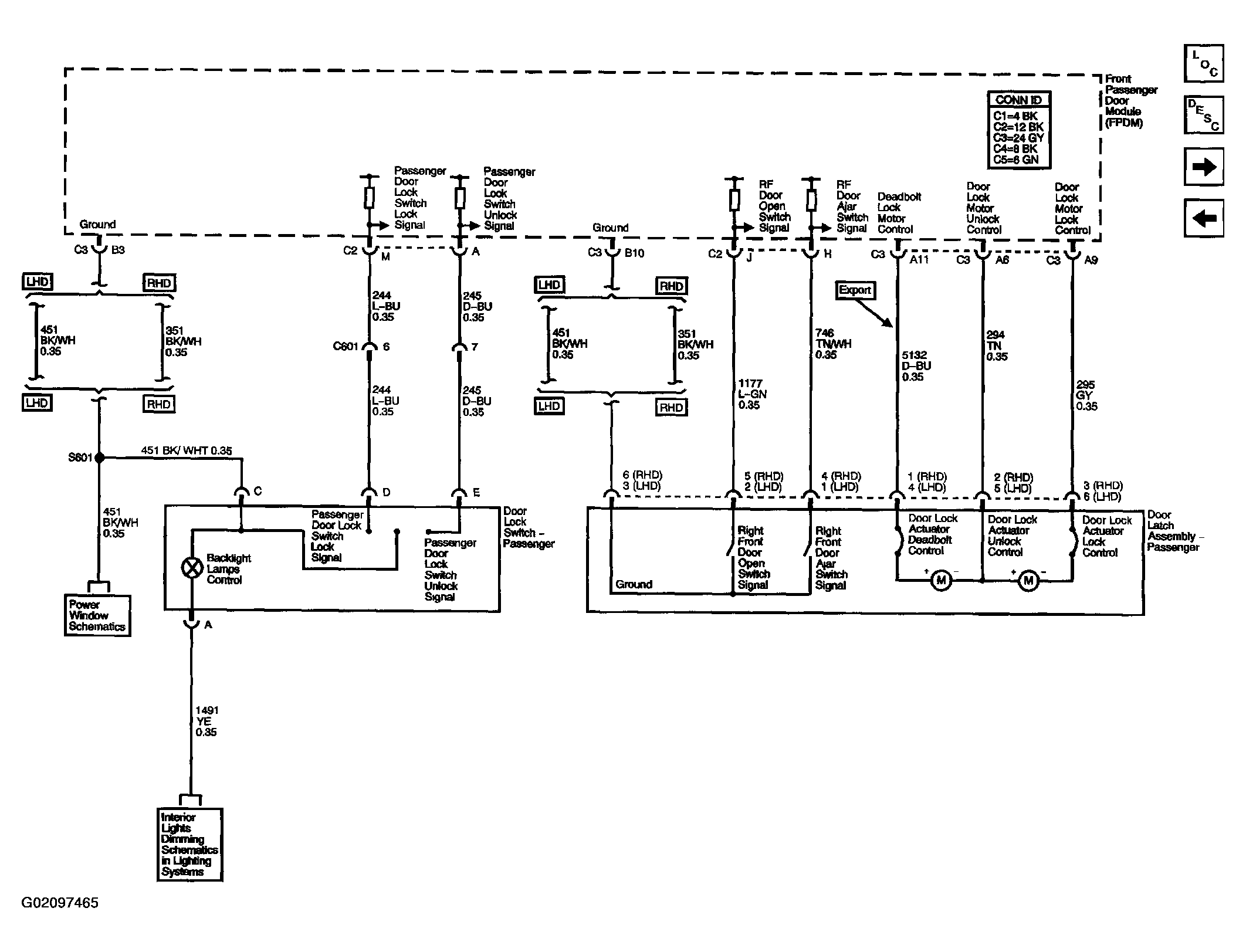

Fig 2: Door Lock/Indicator (Front Passenger Door Module (FPDM)) Schematics Diagram
G02097465Courtesy of GENERAL MOTORS CORP.

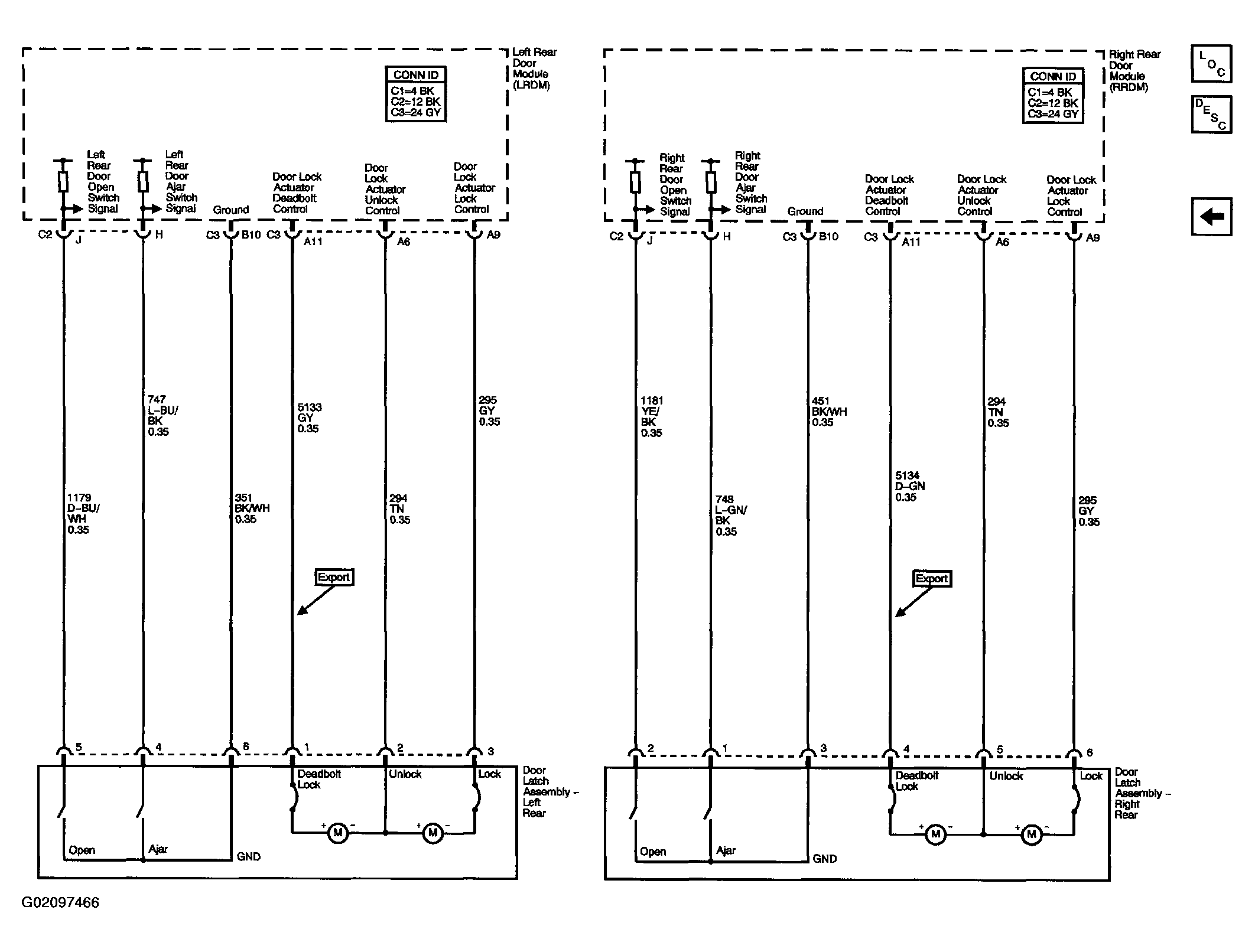

Fig 3: Door Lock/Indicator (Left Rear Door Module (LRDM), Right Rear Door Module (RRDM)) Schematics Diagram
G02097466Courtesy of GENERAL MOTORS CORP.
