Removal Procedure

  1. Remove the mirror face. Refer to MIRROR FACE REPLACEMENT  .
  2. Remove the screws (2).
  3. Disconnect the electrical connector.

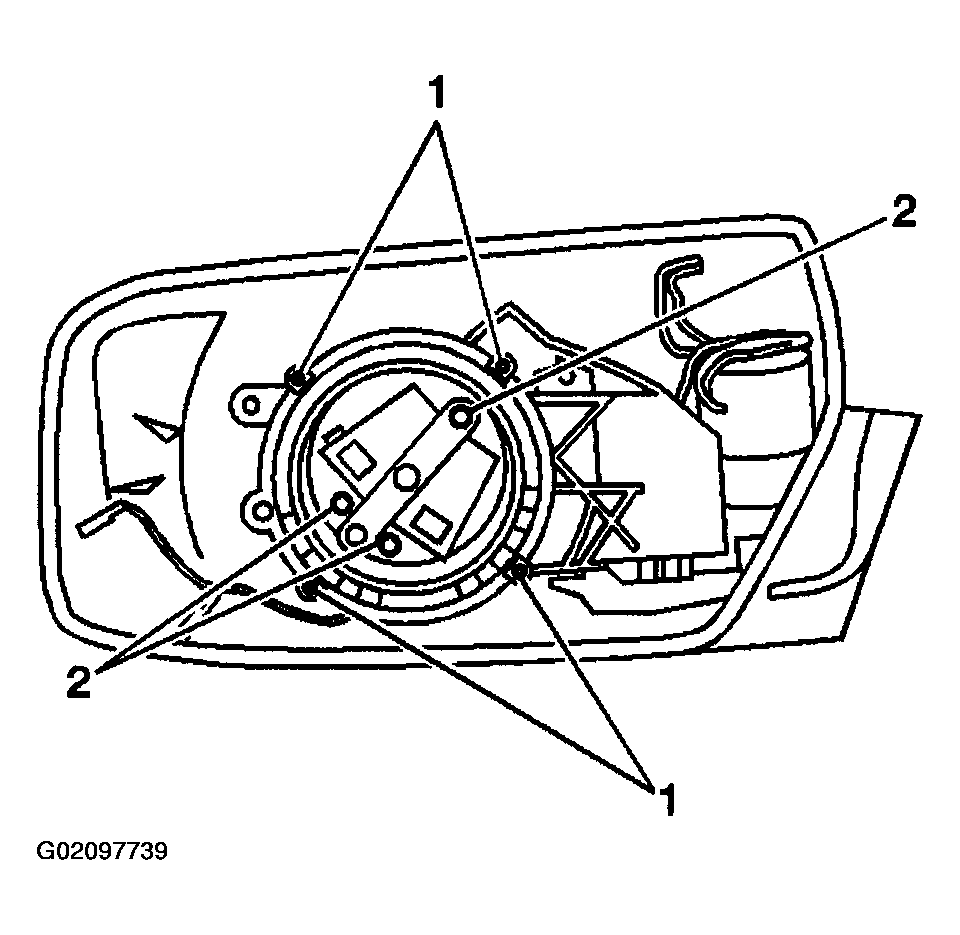

    Fig 1: Removing Power Mirror Motor
    G02097739Courtesy of GENERAL MOTORS CORP.
