Home >> Cadillac >> 2002 >> Seville SLS >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Steering Controls Connector End Views >> Suspension Position Sensor Connector End View - RF

Suspension Position Sensor Connector End View - RF

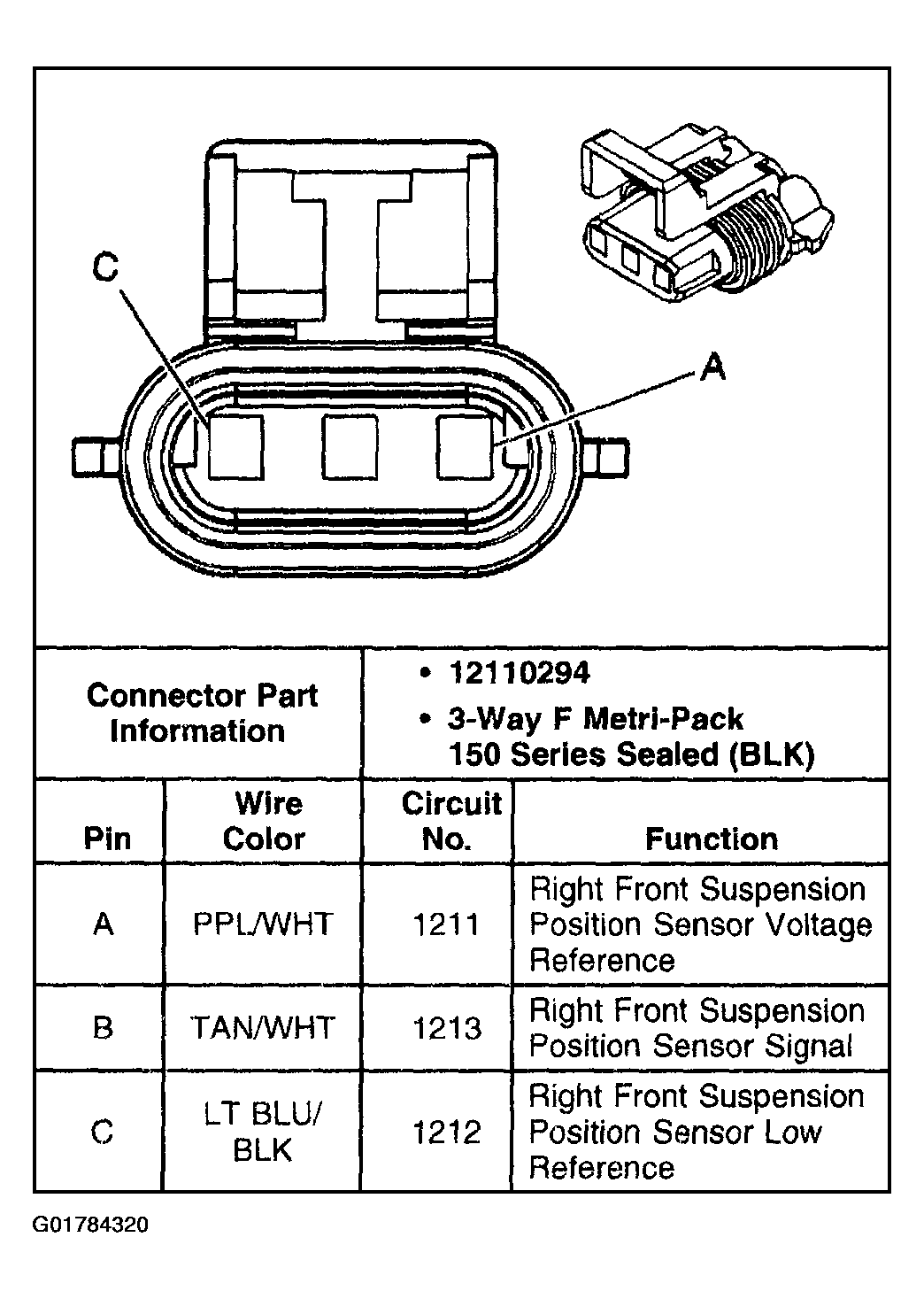

Fig 1: Suspension Position Sensor - RF

G01784320

Courtesy of GENERAL MOTORS CORP.
