Suspension Position Sensor Connector End View - LR

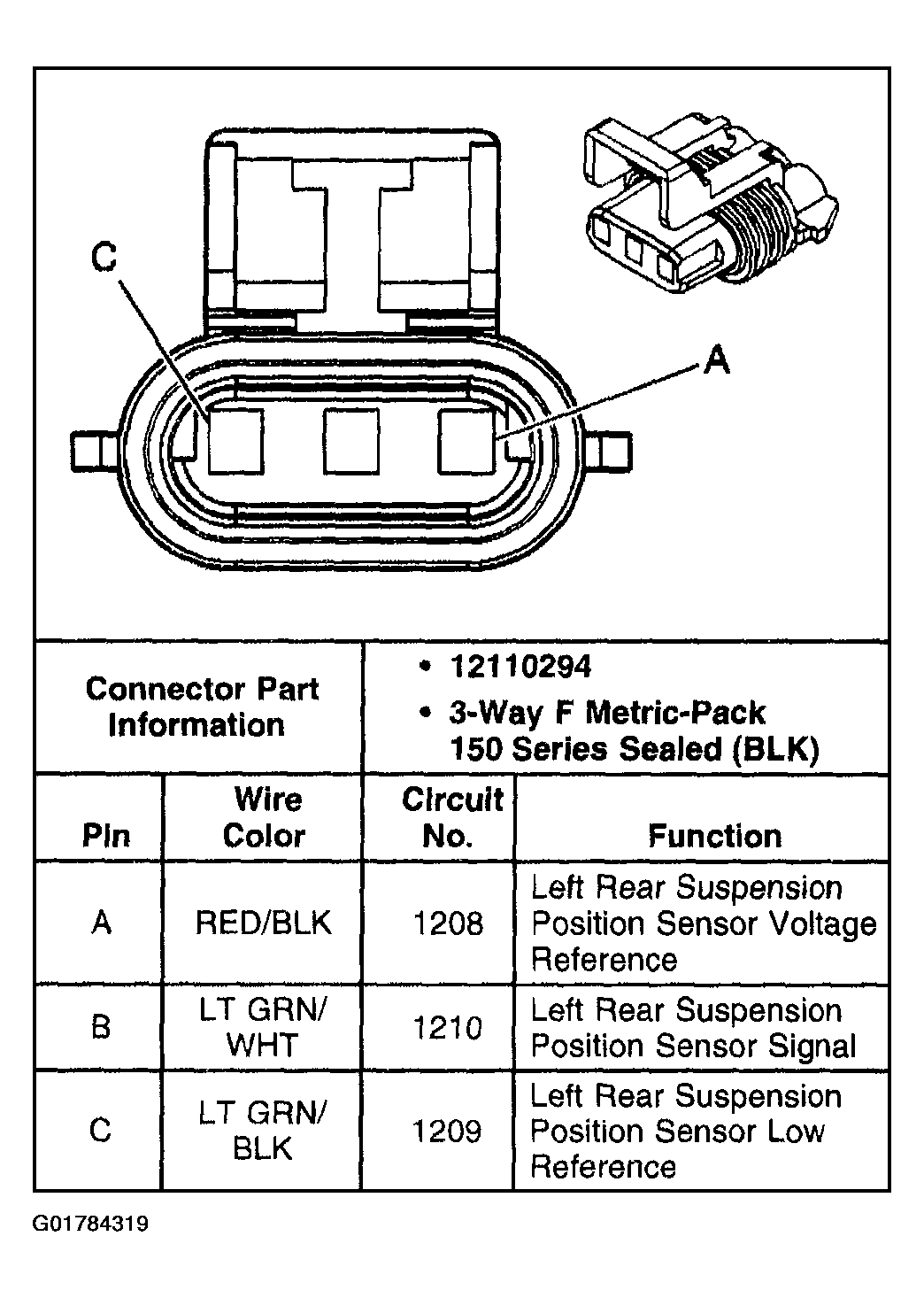

Fig 1: Suspension Position Sensor - LR

G01784319

Courtesy of GENERAL MOTORS CORP.
