Suspension Position Sensor Connector End View - LF

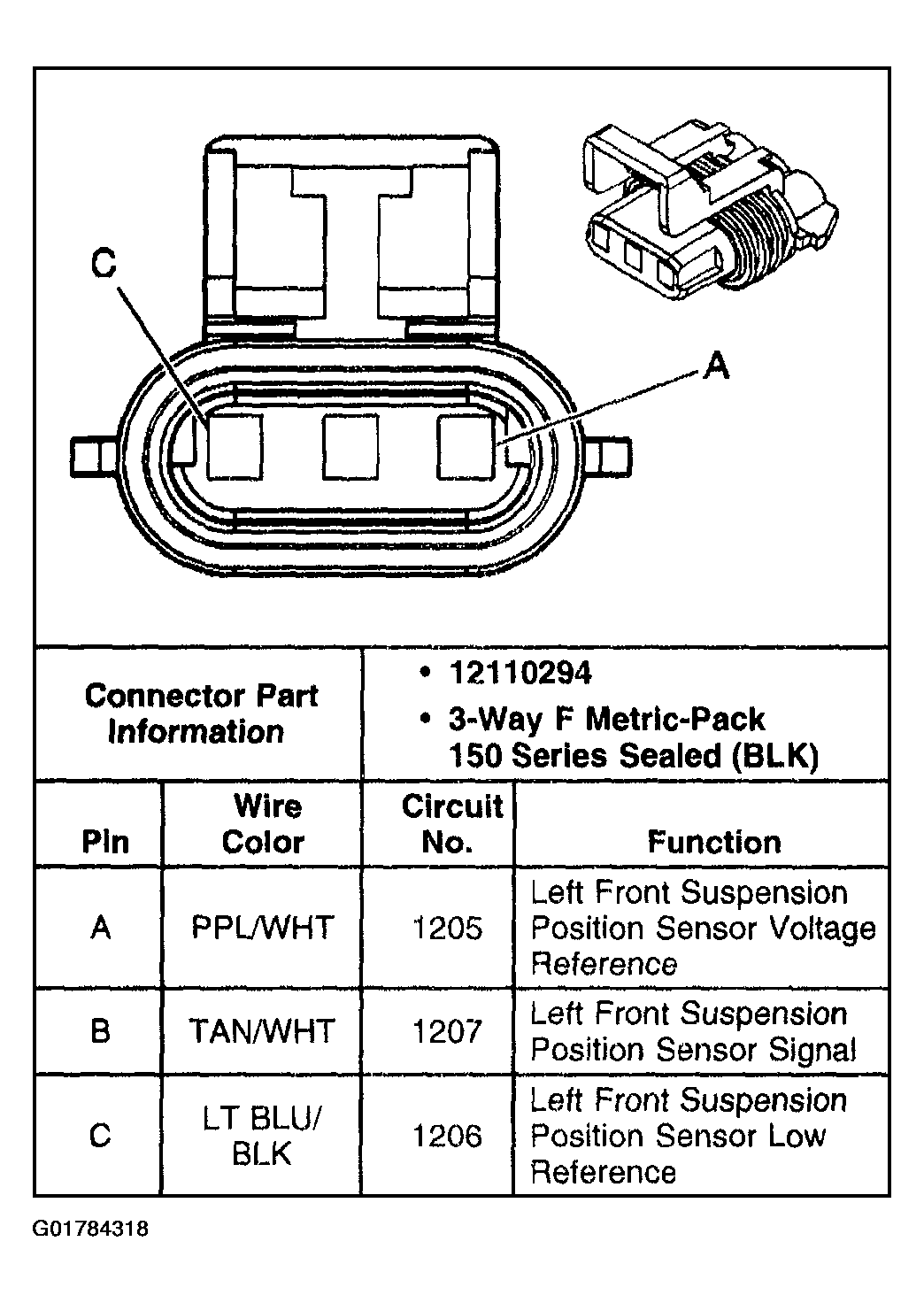

Fig 1: Suspension Position Sensor - LF

G01784318

Courtesy of GENERAL MOTORS CORP.
