Rear Compartment Key Cylinder Connector End View

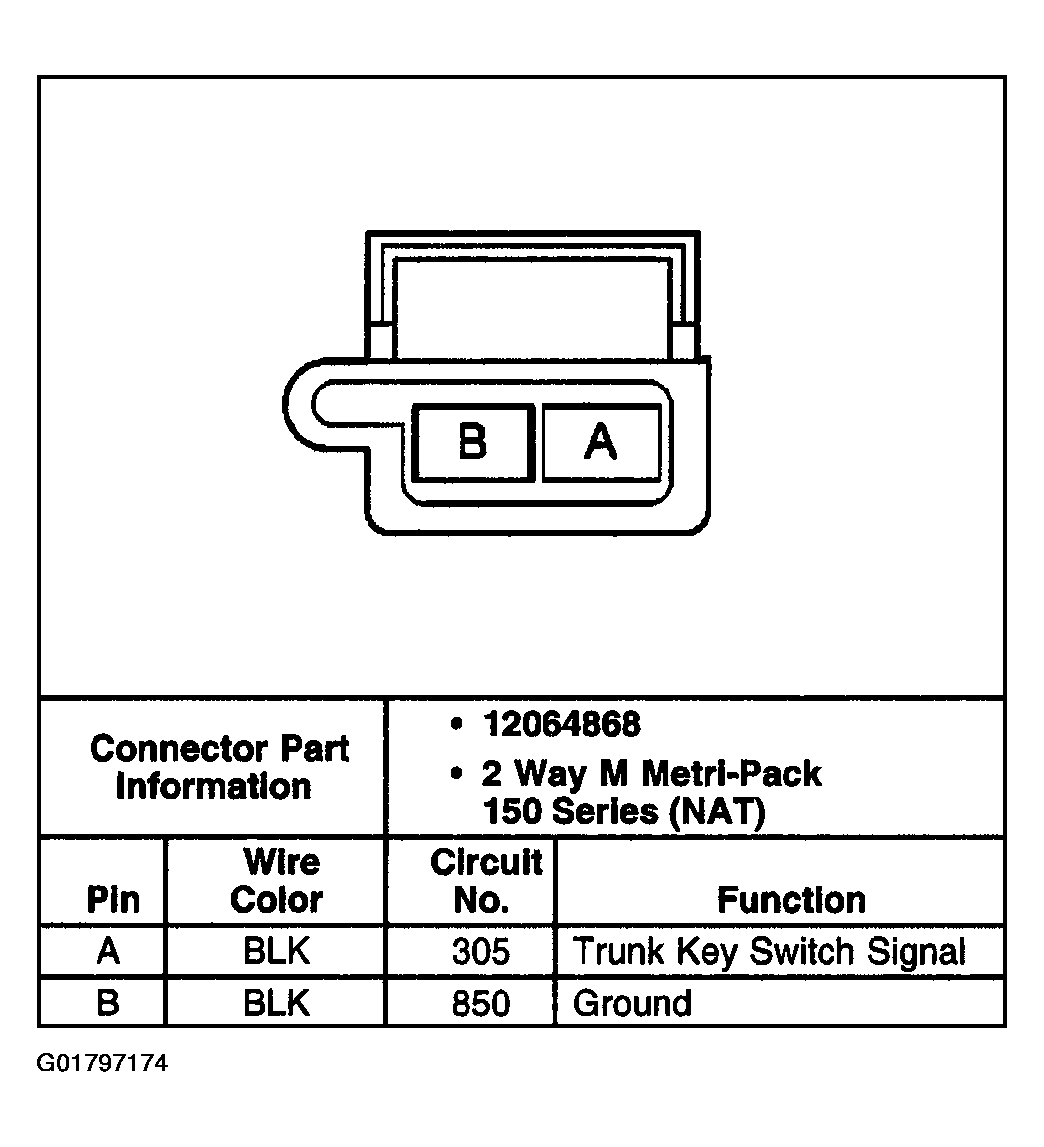

Fig 1: Rear Compartment Key Cylinder

G01797174

Courtesy of GENERAL MOTORS CORP.
