Fuel Door Lock Release Switch Connector End View

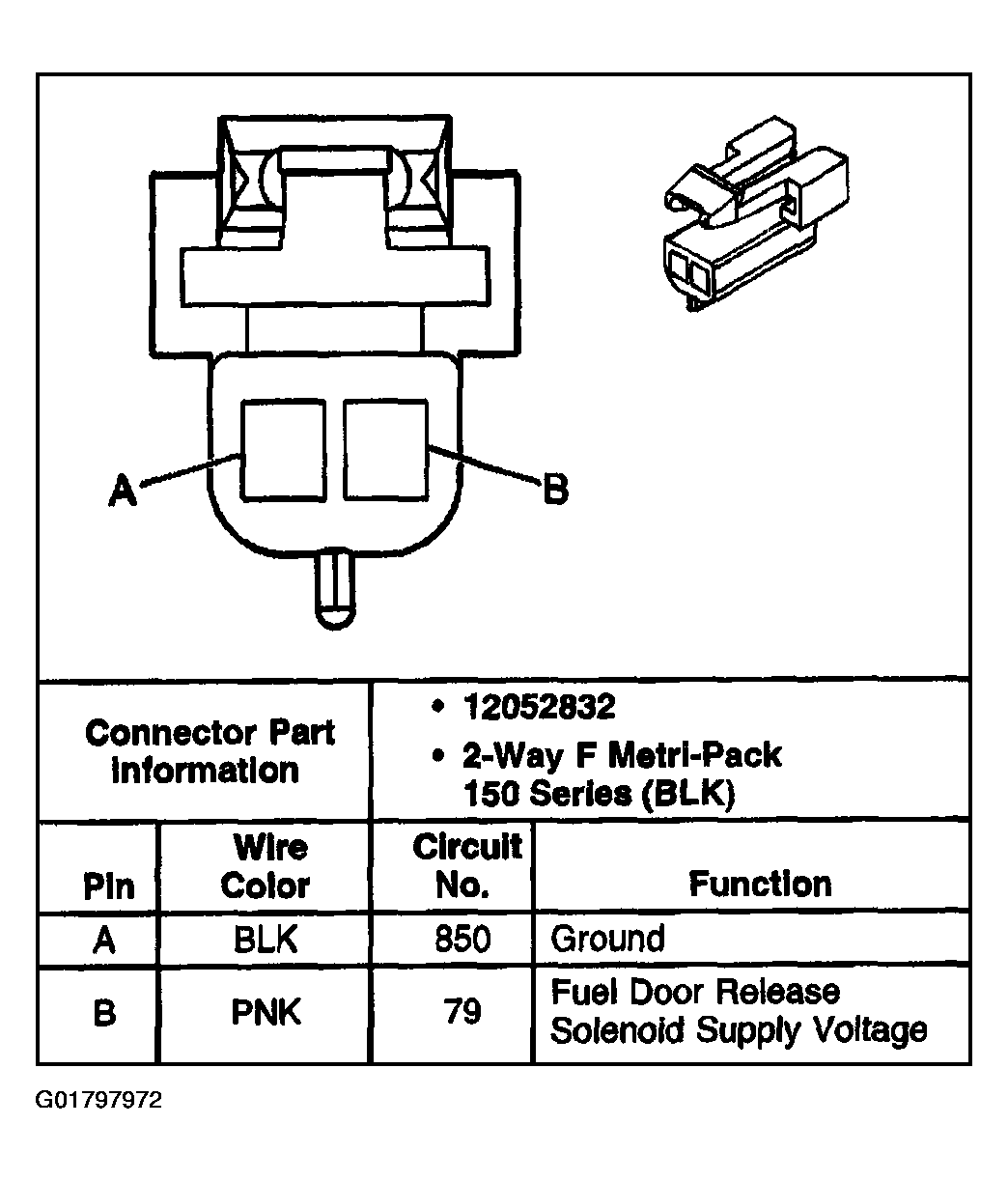

Fig 1: Fuel Door Lock Release Switch

G01797972

Courtesy of GENERAL MOTORS CORP.
